Exterior Lights Component Location Index (2017 2018 2019 2020)

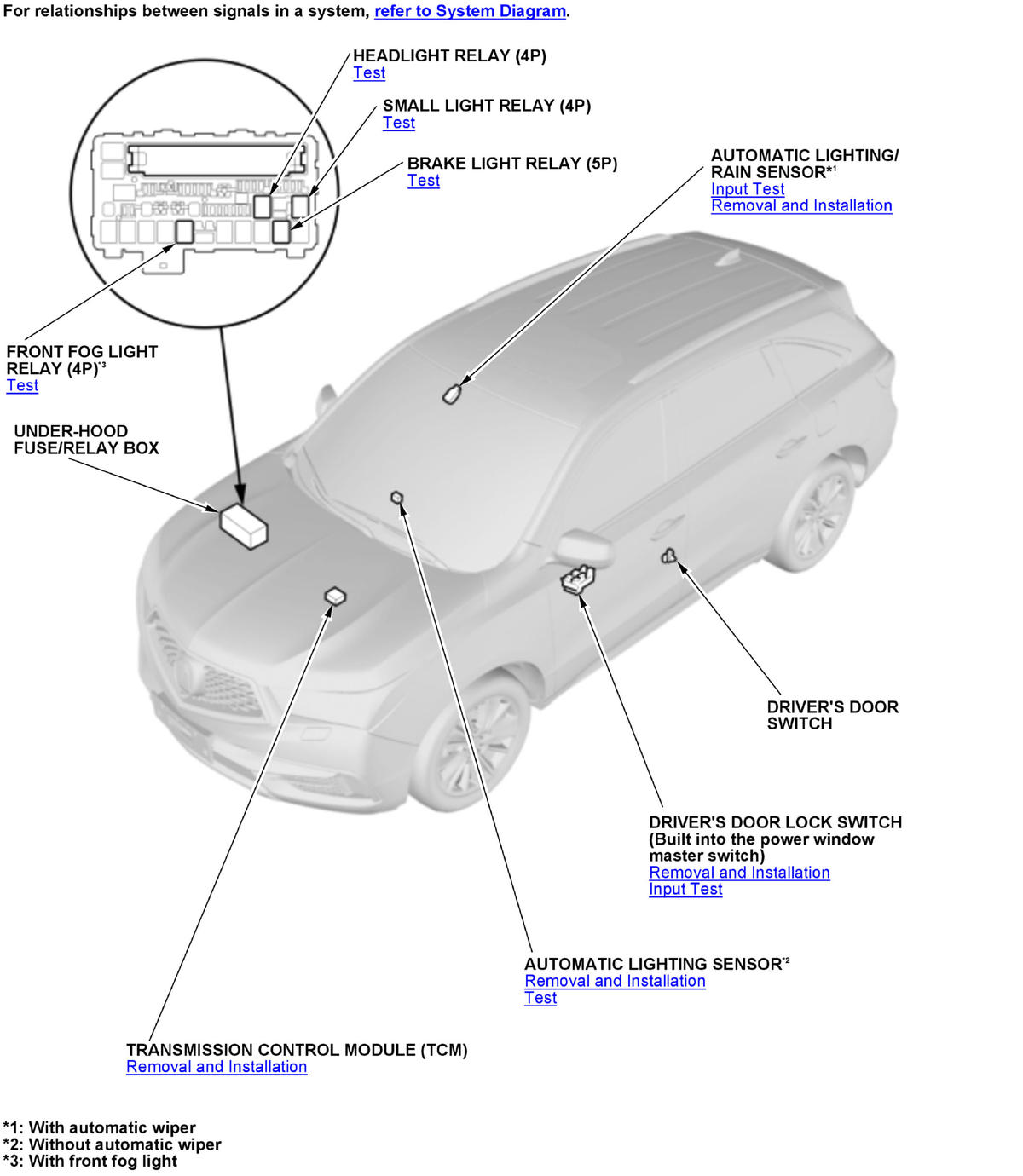

GHH320654

Courtesy of HONDA, U.S.A., INC.

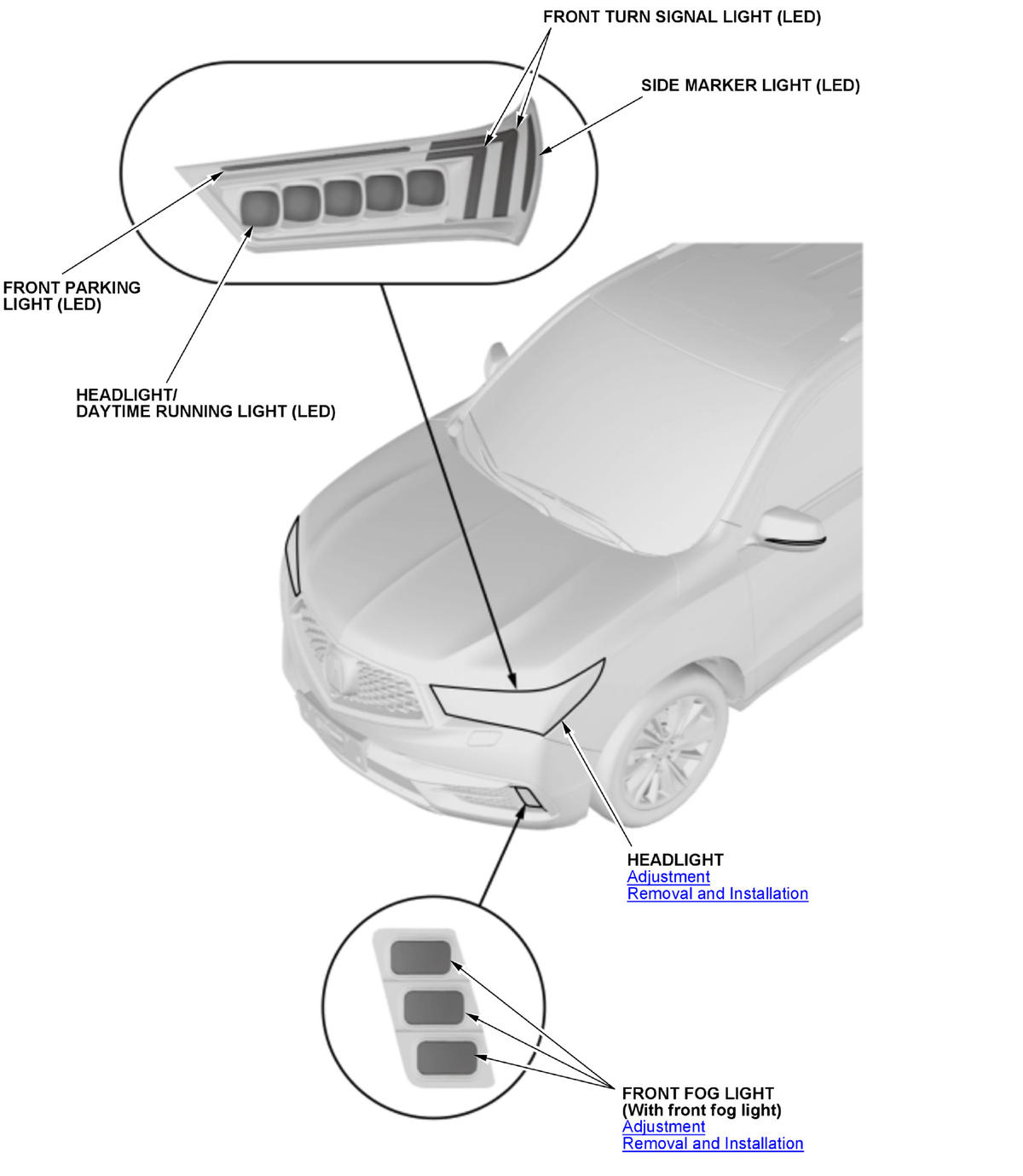

GHH320655

Courtesy of HONDA, U.S.A., INC.

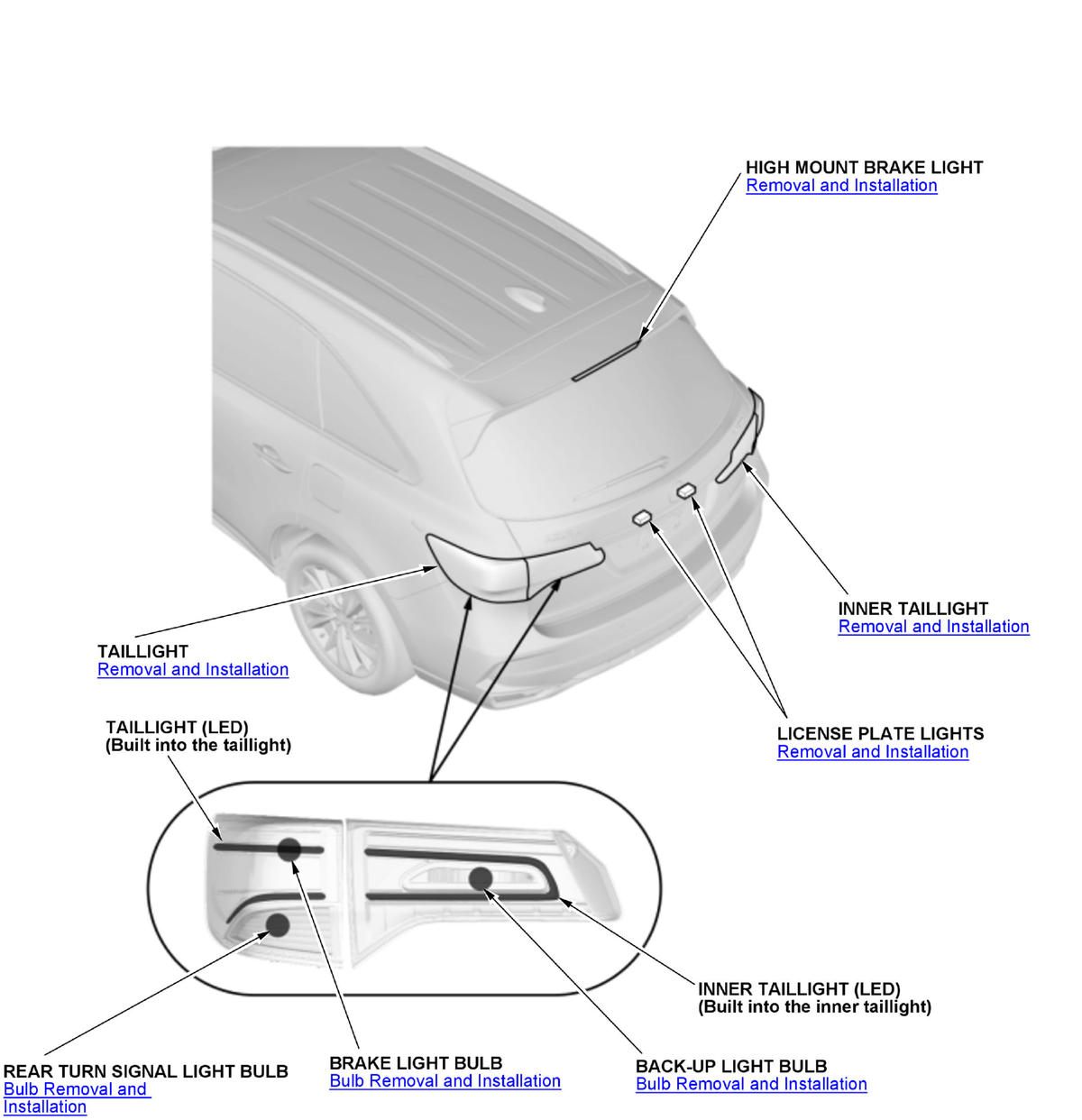

GHH320656

Courtesy of HONDA, U.S.A., INC.

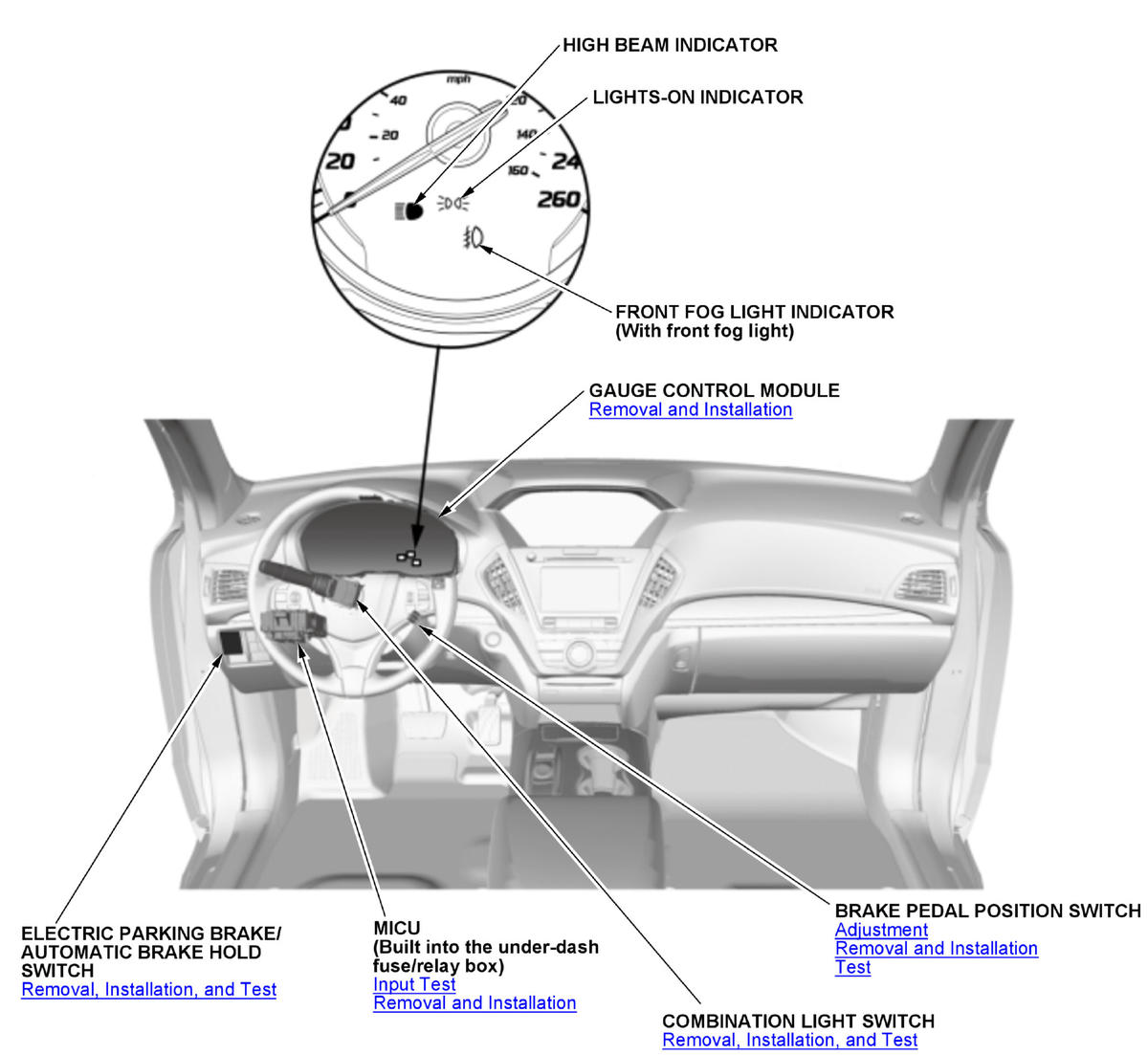

GHH320657

Courtesy of HONDA, U.S.A., INC.
