Exterior Lights Component Location Index (2016)

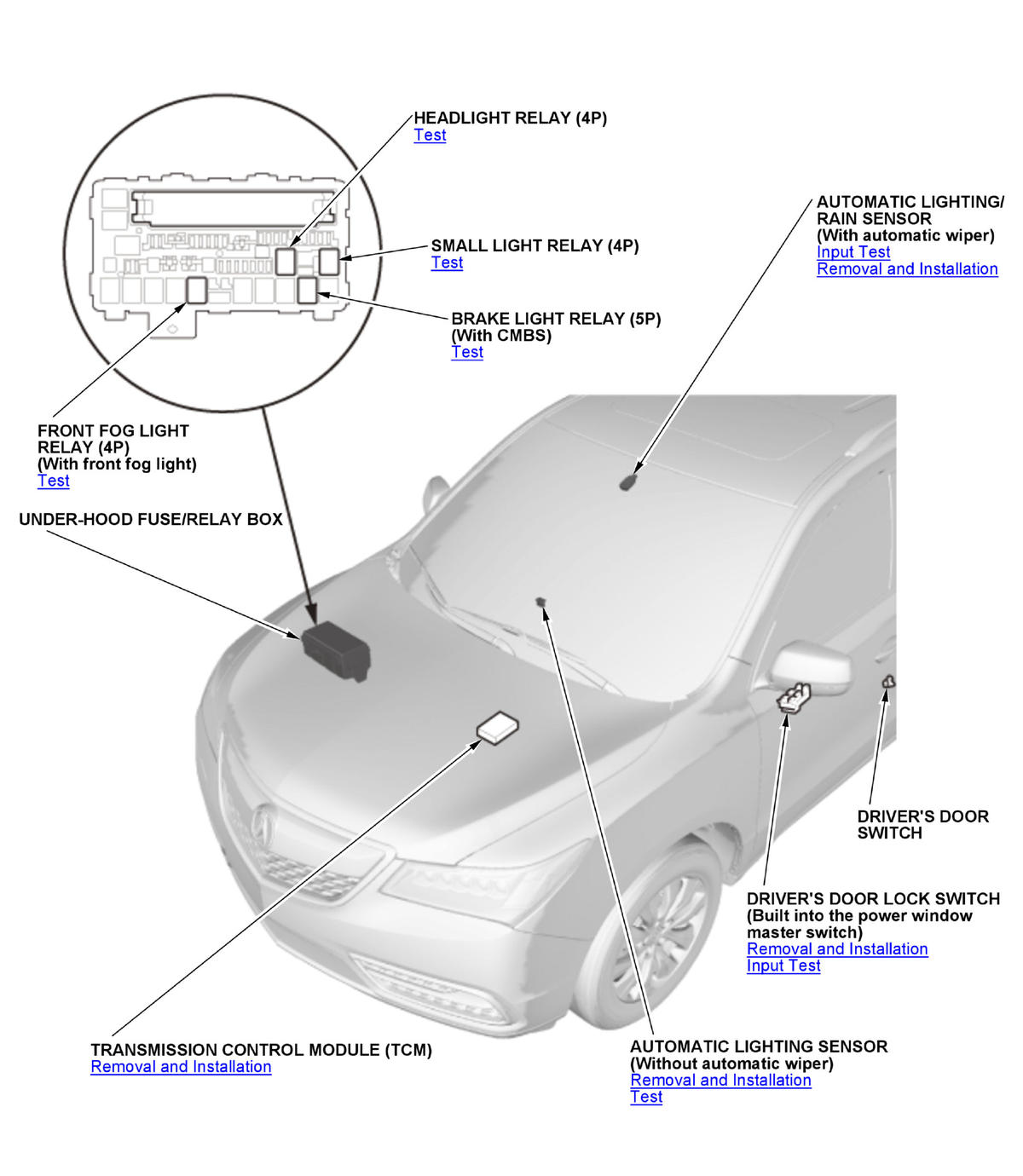

GHH320650

Courtesy of HONDA, U.S.A., INC.

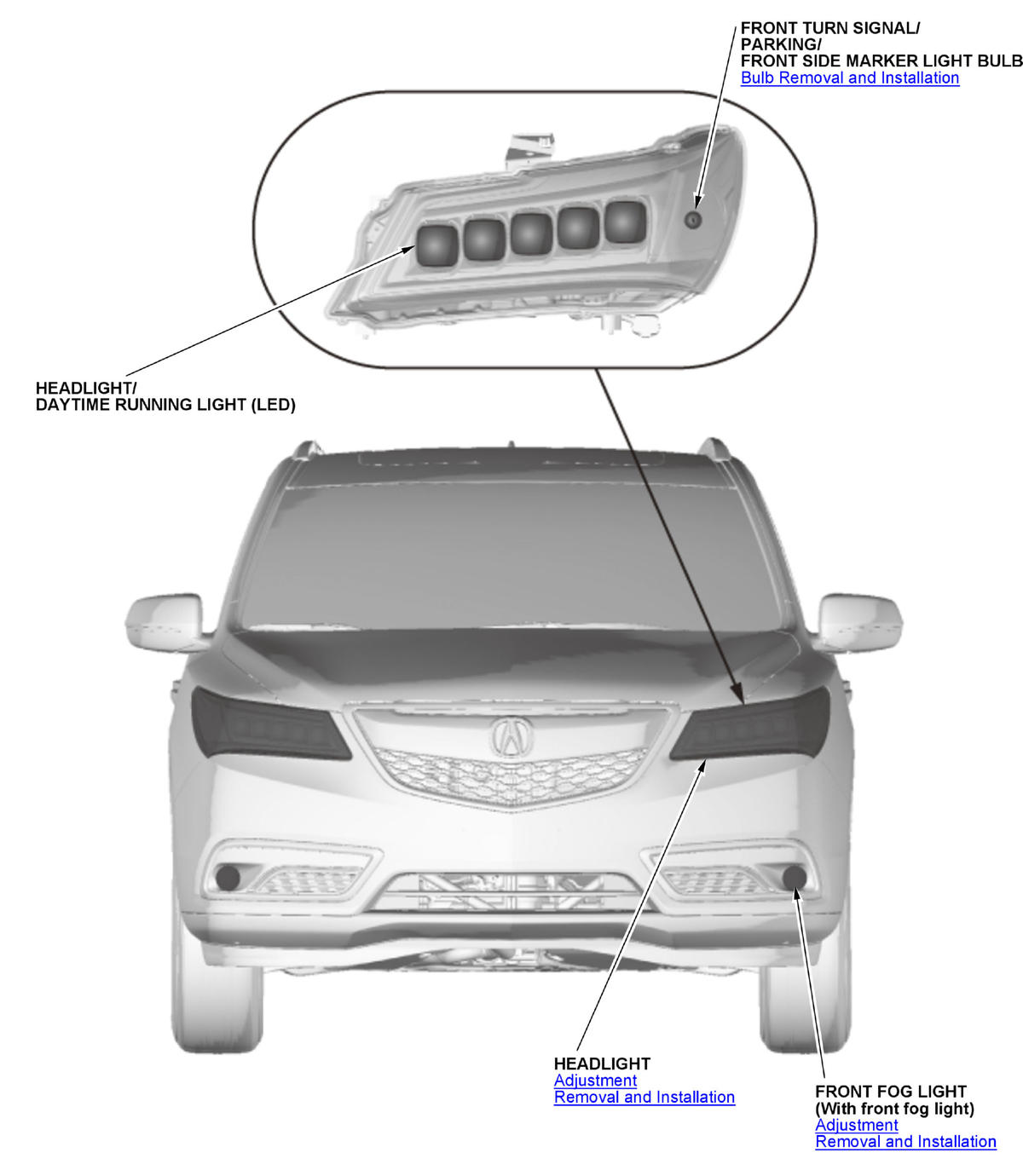

GHH320651

Courtesy of HONDA, U.S.A., INC.

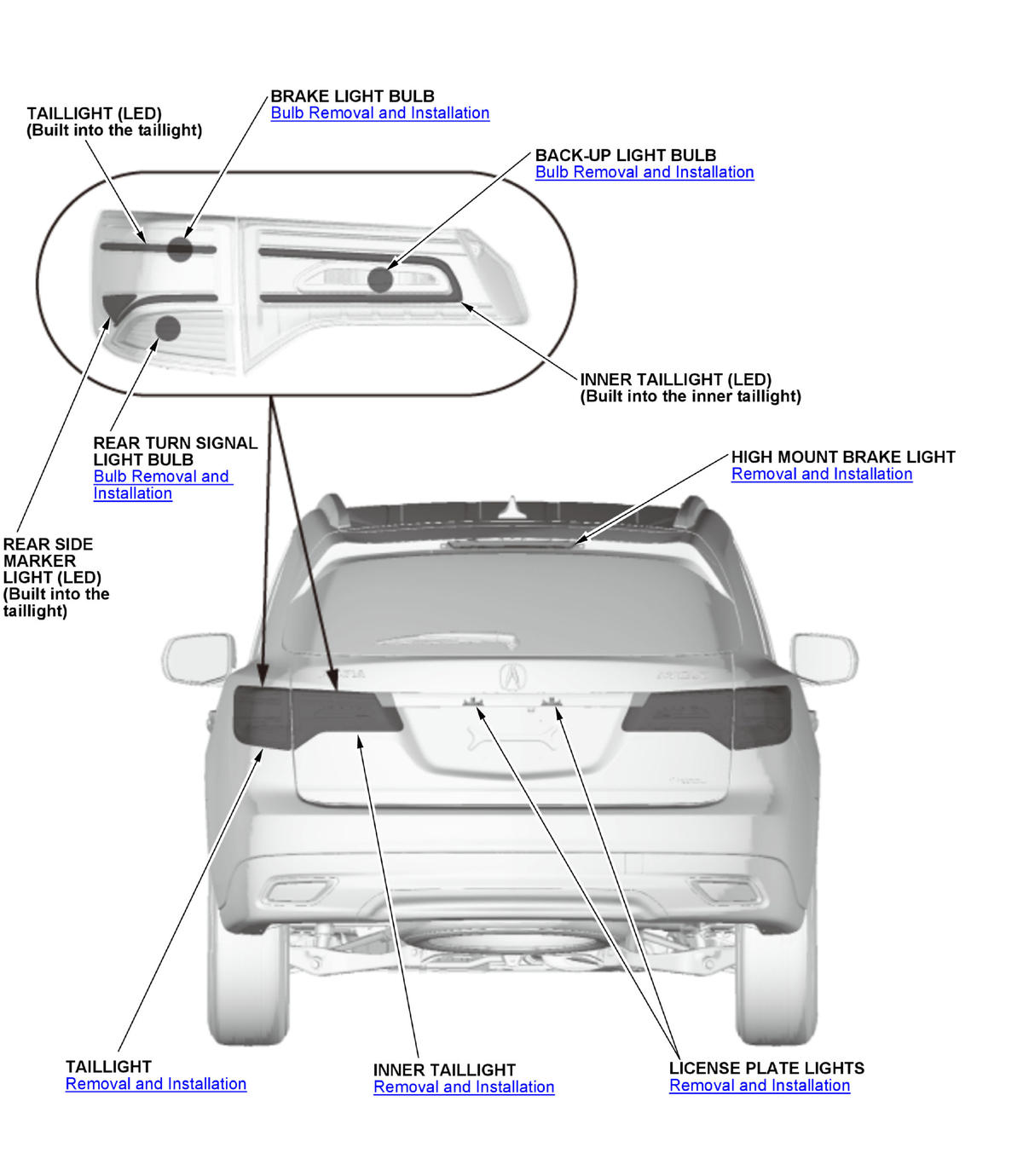

GHH320652

Courtesy of HONDA, U.S.A., INC.

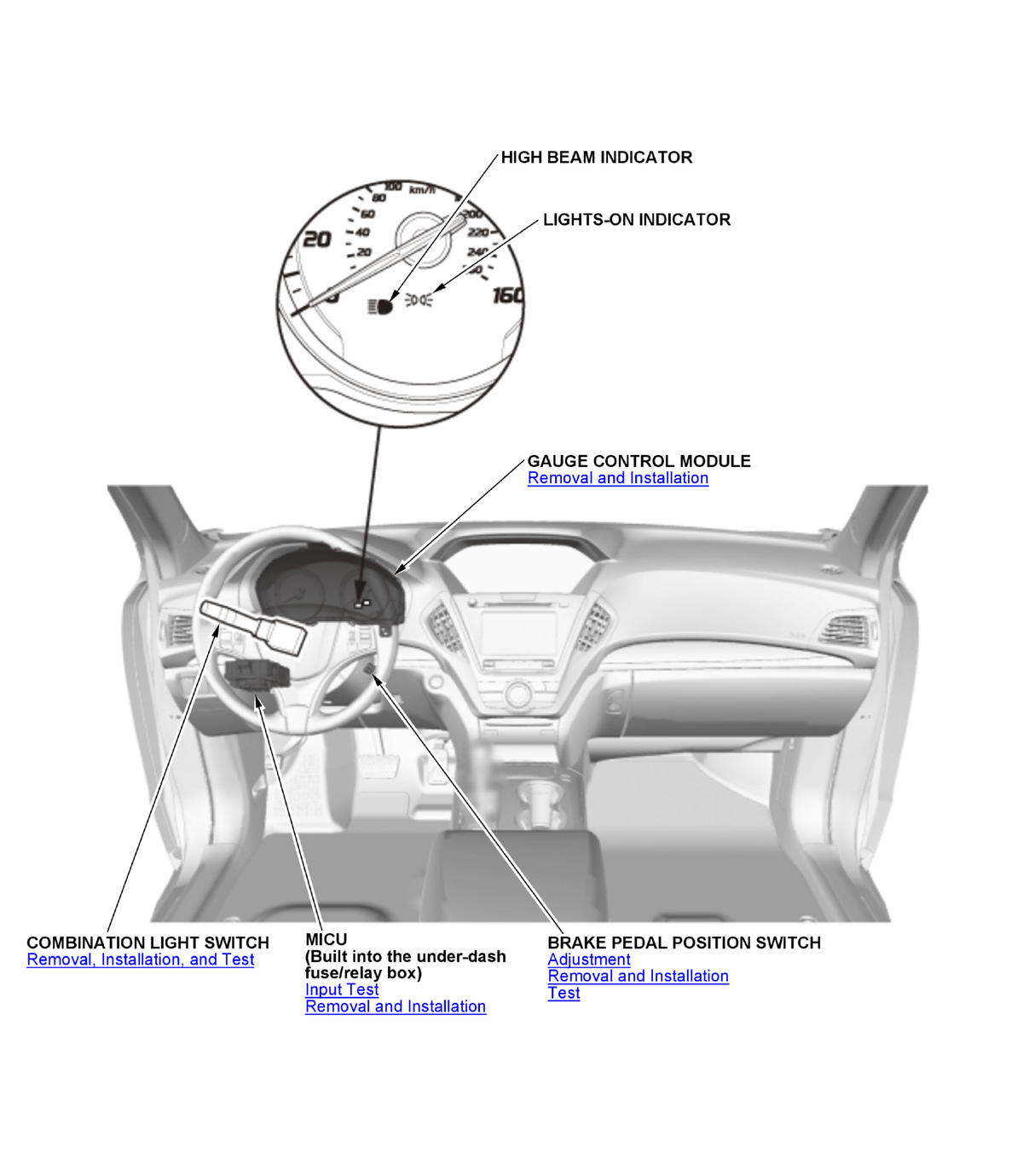

GHH320653

Courtesy of HONDA, U.S.A., INC.
