Exterior Lights Component Location Index (2014 2015)

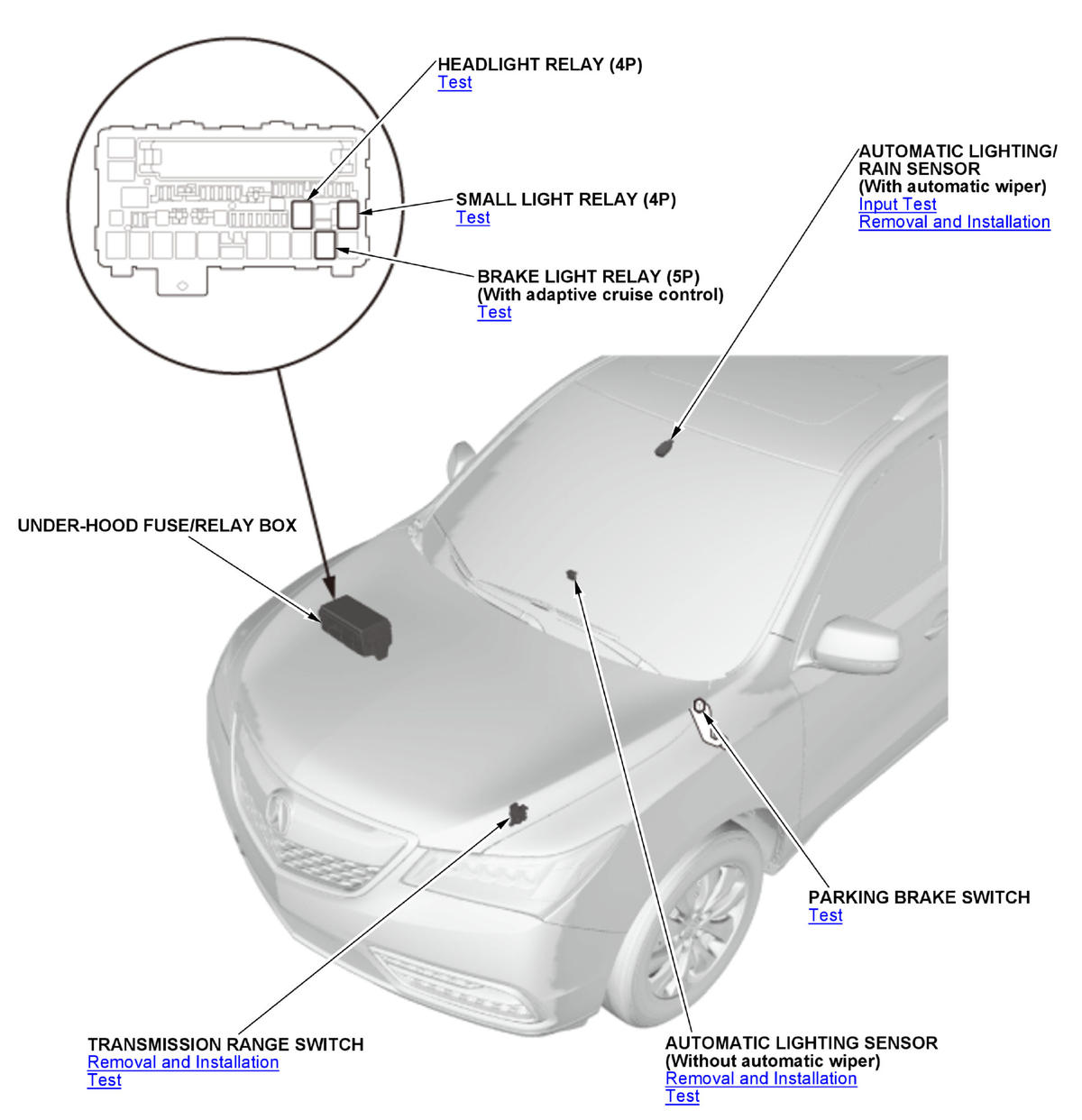

GHH320658

Courtesy of HONDA, U.S.A., INC.

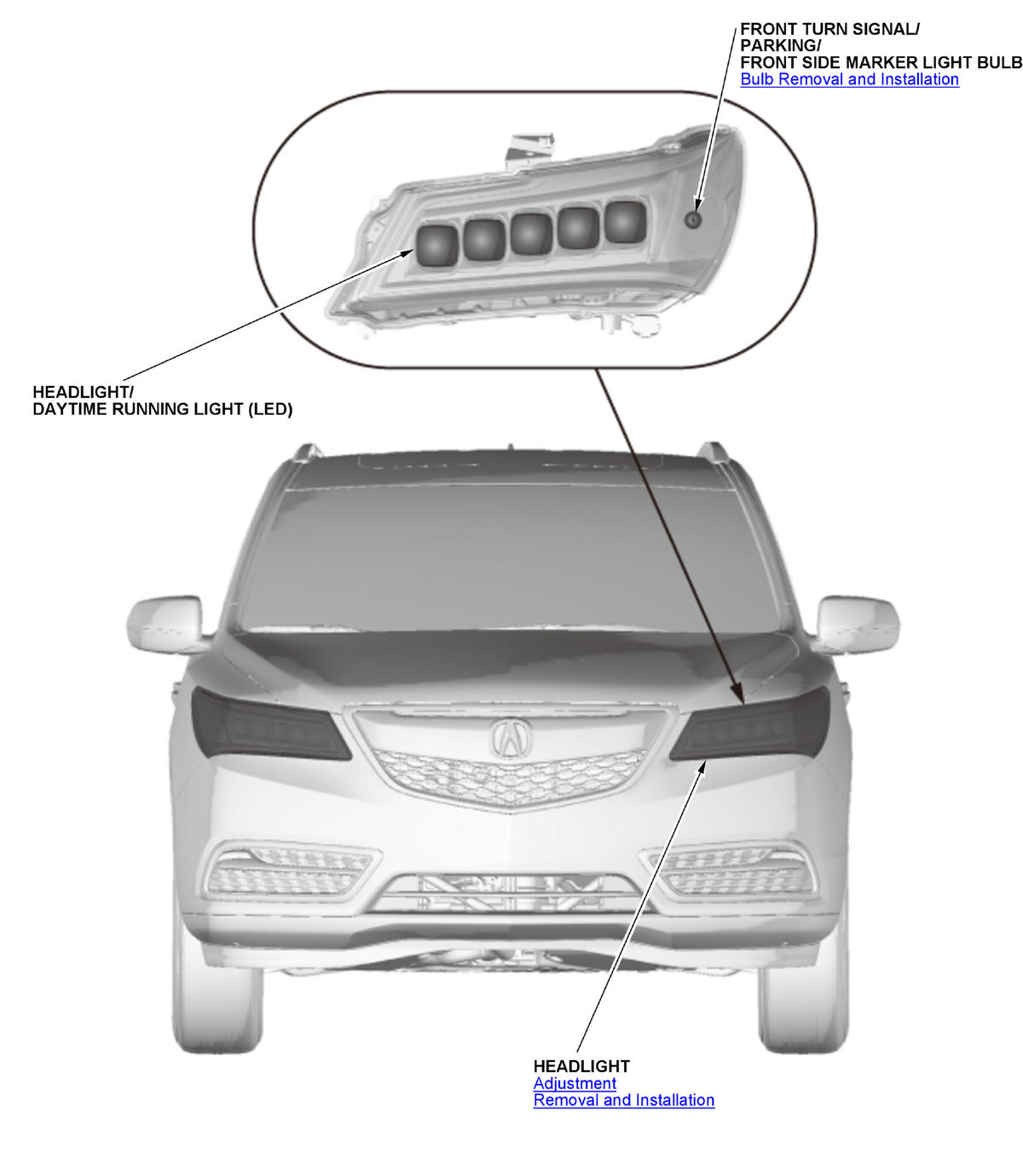

GHH320659

Courtesy of HONDA, U.S.A., INC.

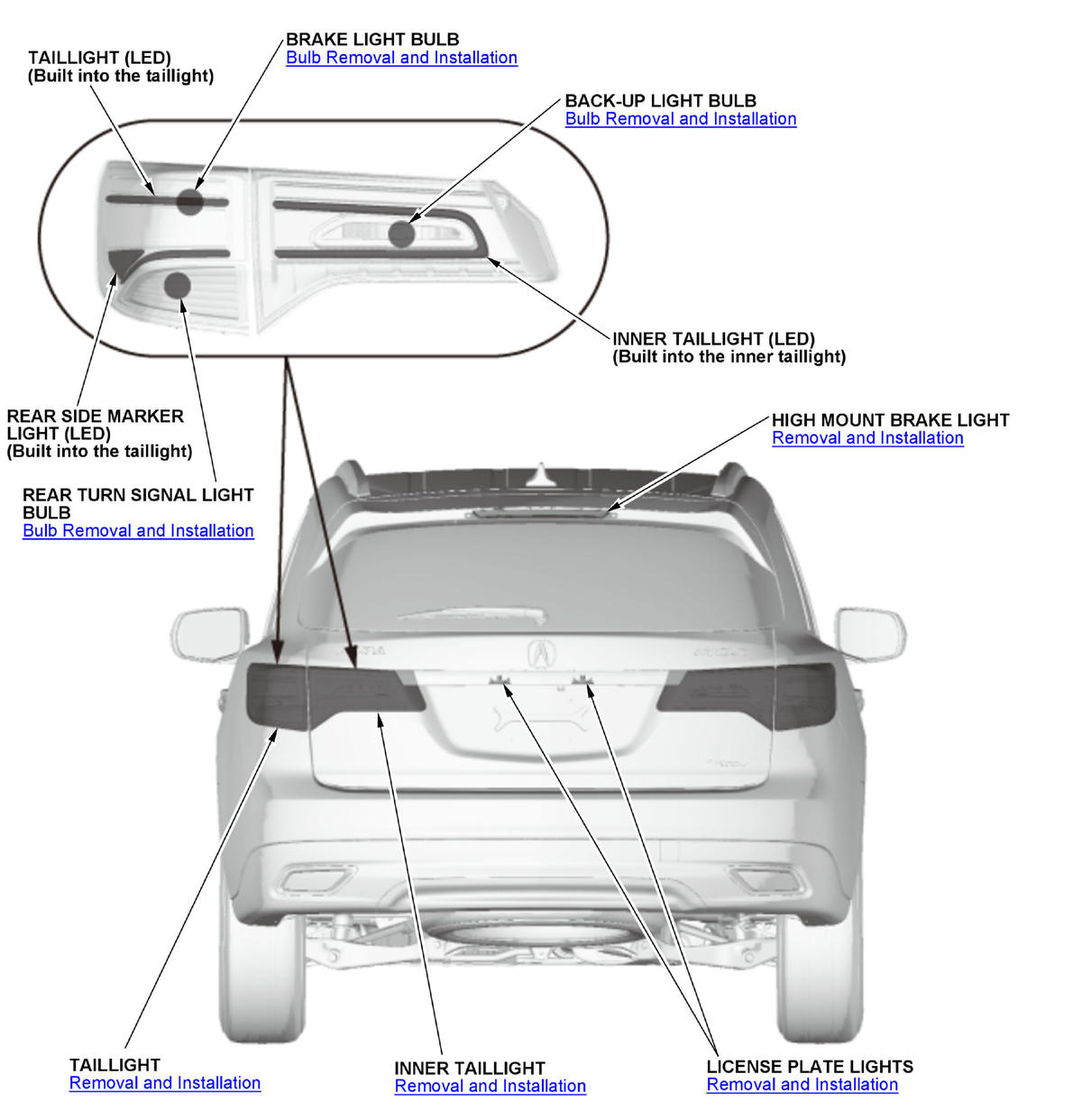

GHH320660

Courtesy of HONDA, U.S.A., INC.

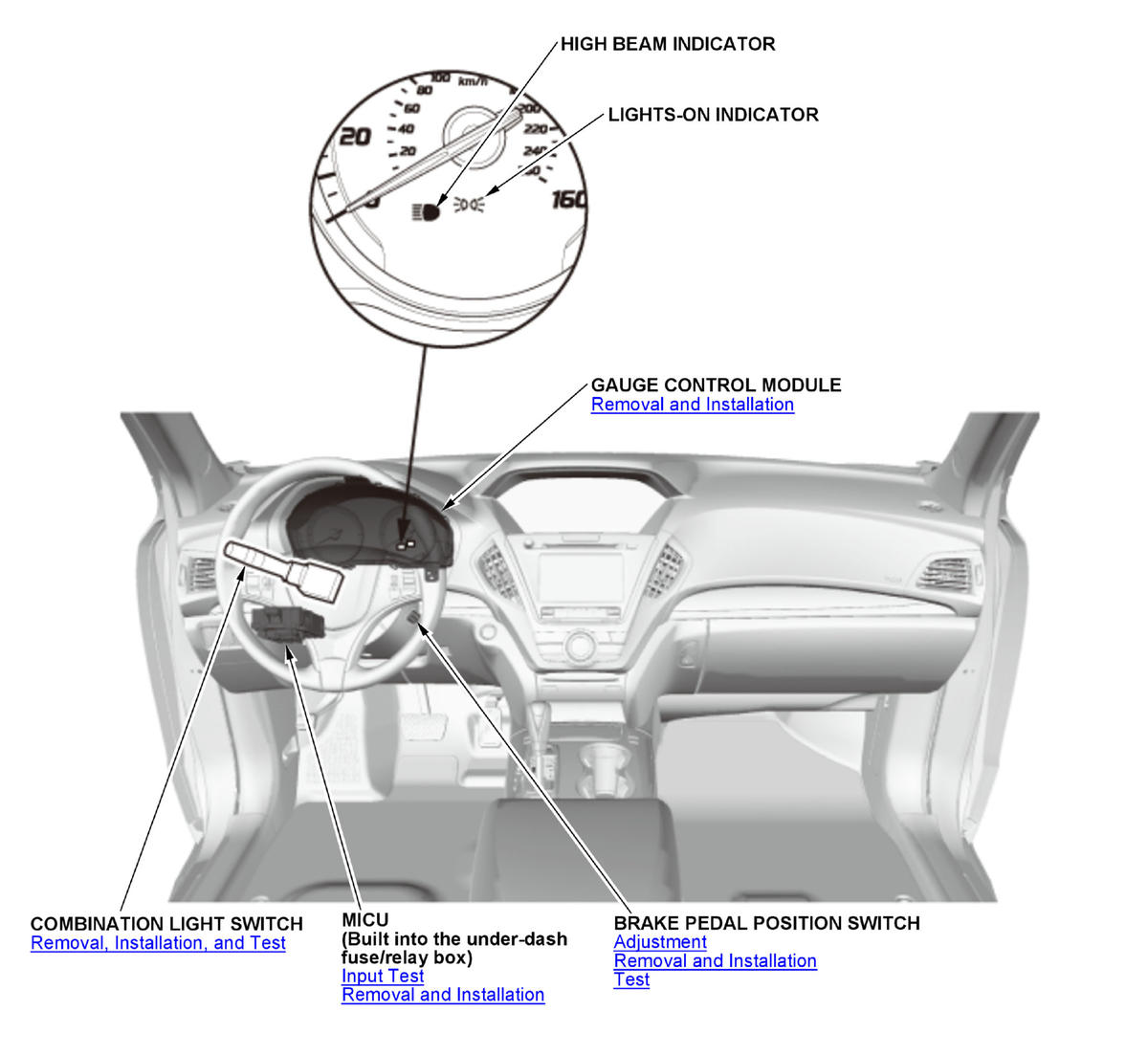

GHH320661

Courtesy of HONDA, U.S.A., INC.
