Turn Signal/Hazard Warning Lights Circuit Diagram (2017 2018 2019 2020)

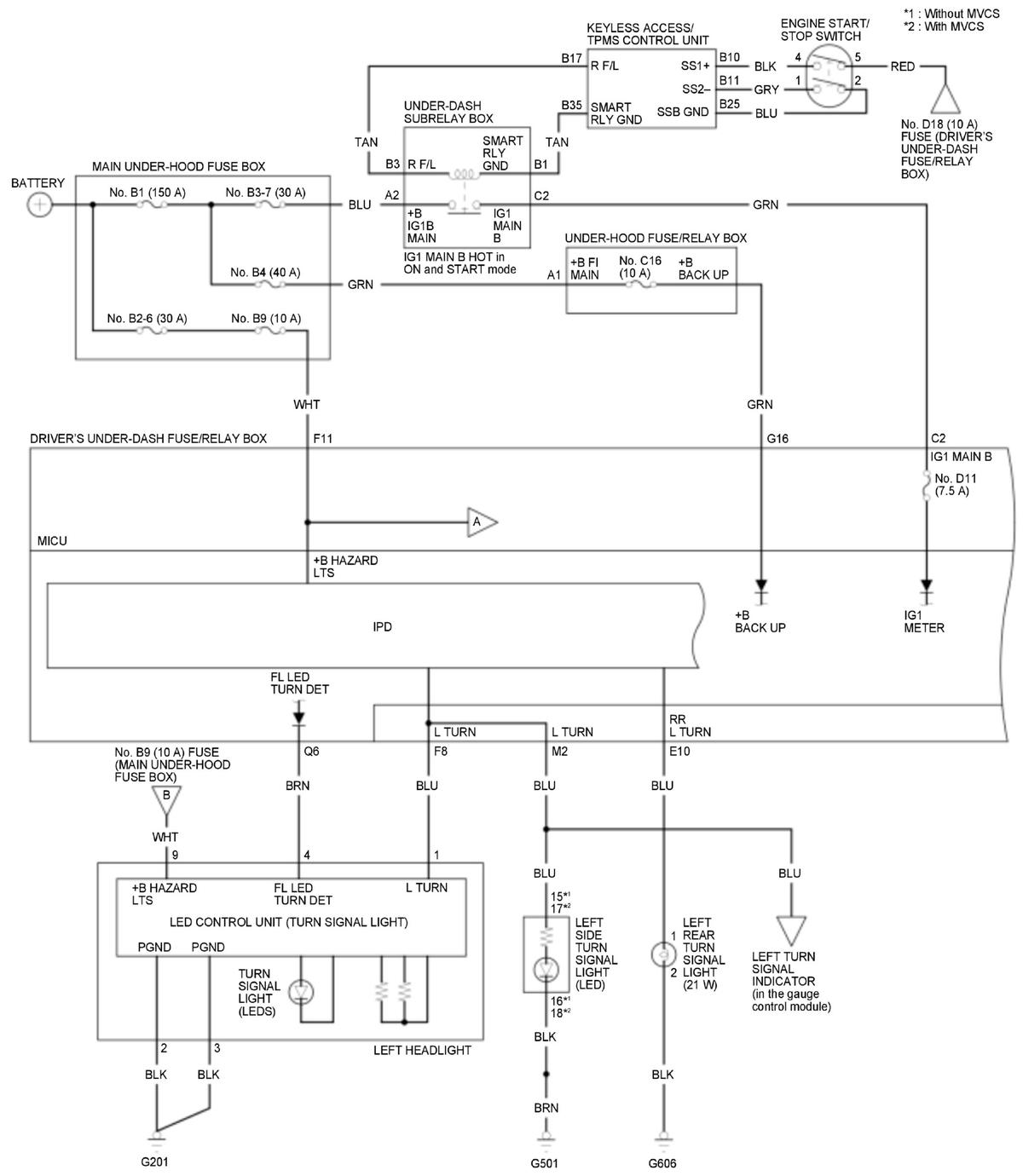

GHH320833

Courtesy of HONDA, U.S.A., INC.

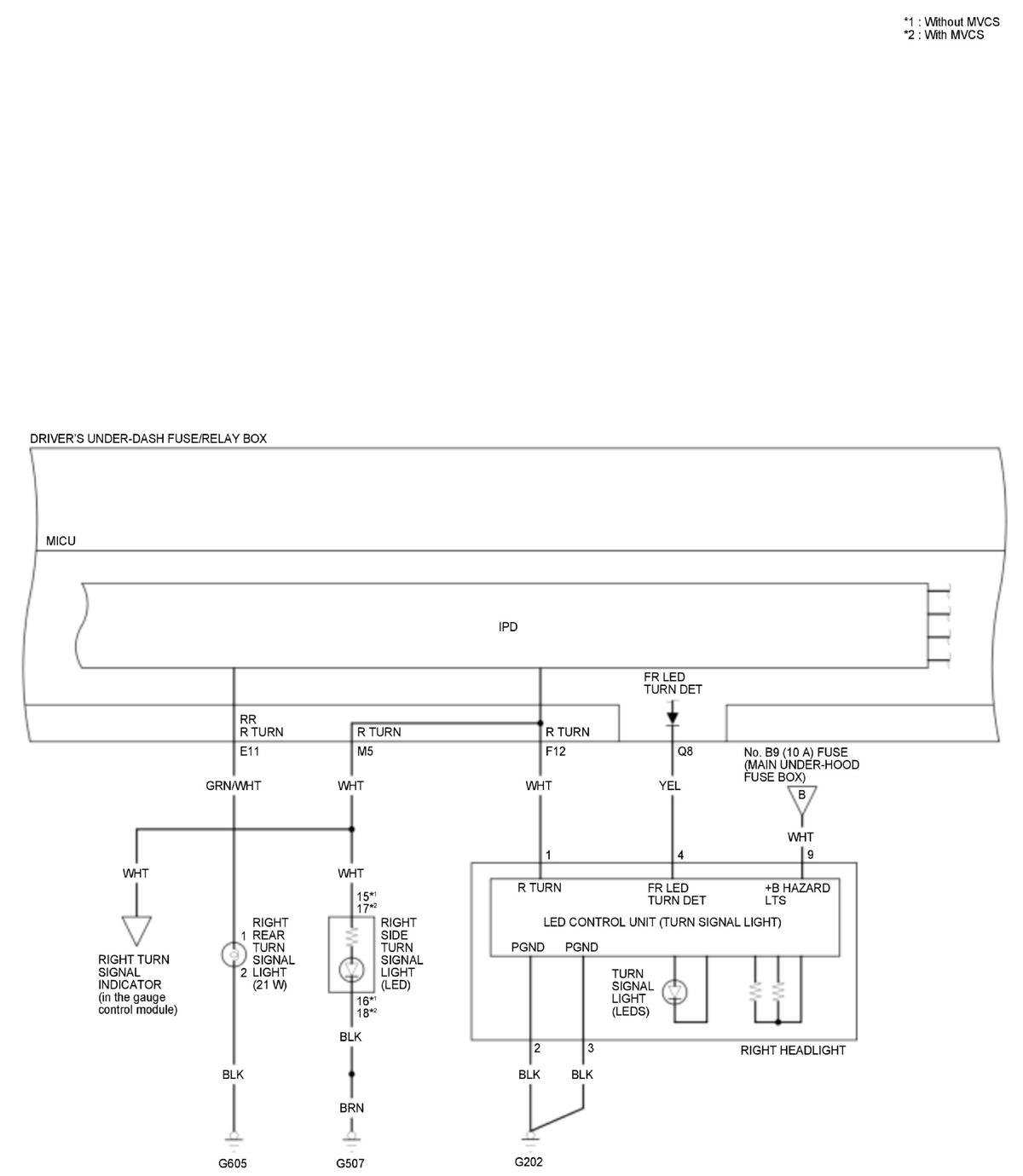

GHH320834

Courtesy of HONDA, U.S.A., INC.

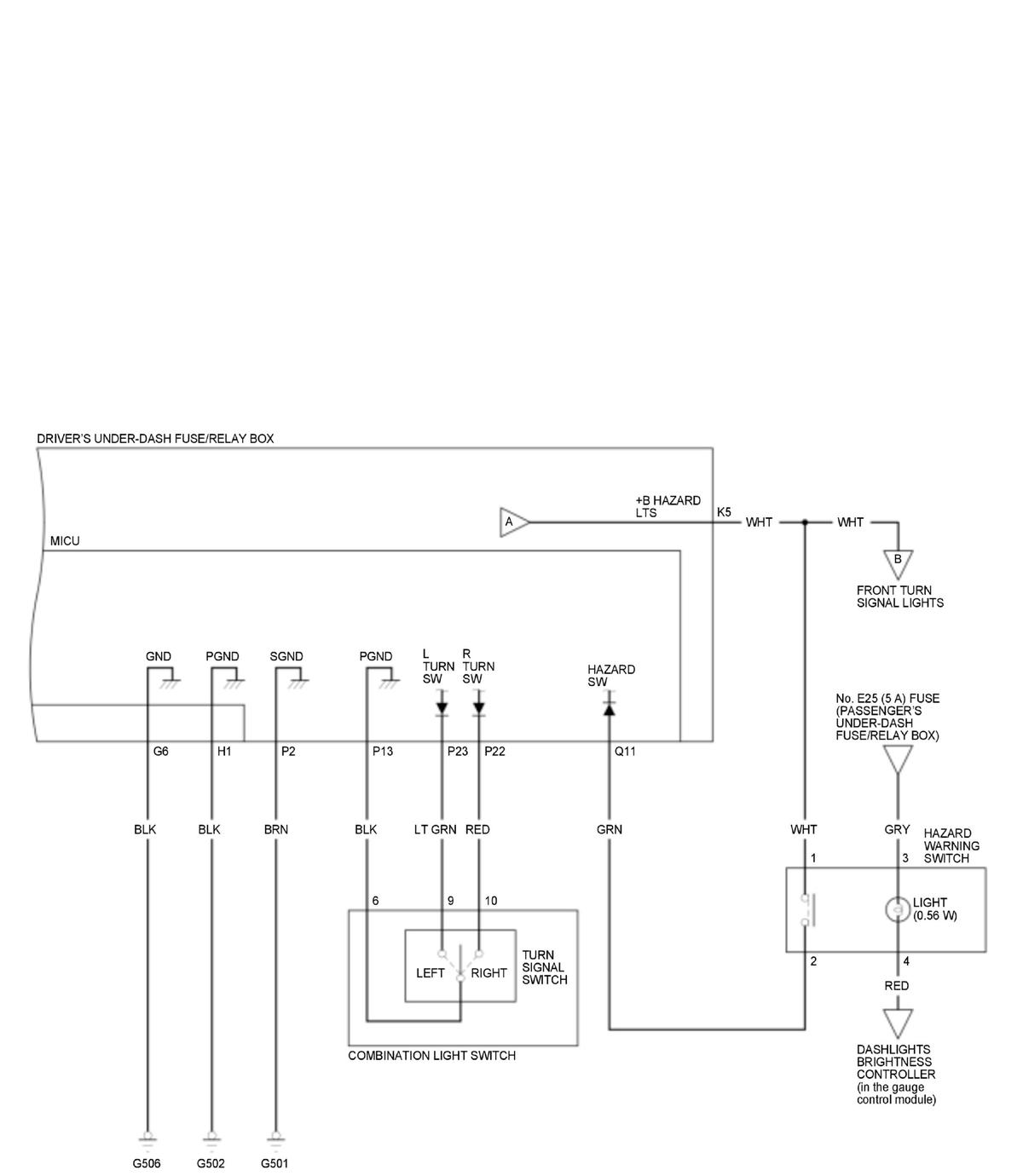

GHH320835

Courtesy of HONDA, U.S.A., INC.
