Turn Signal/Hazard Warning Lights Circuit Diagram (2016)

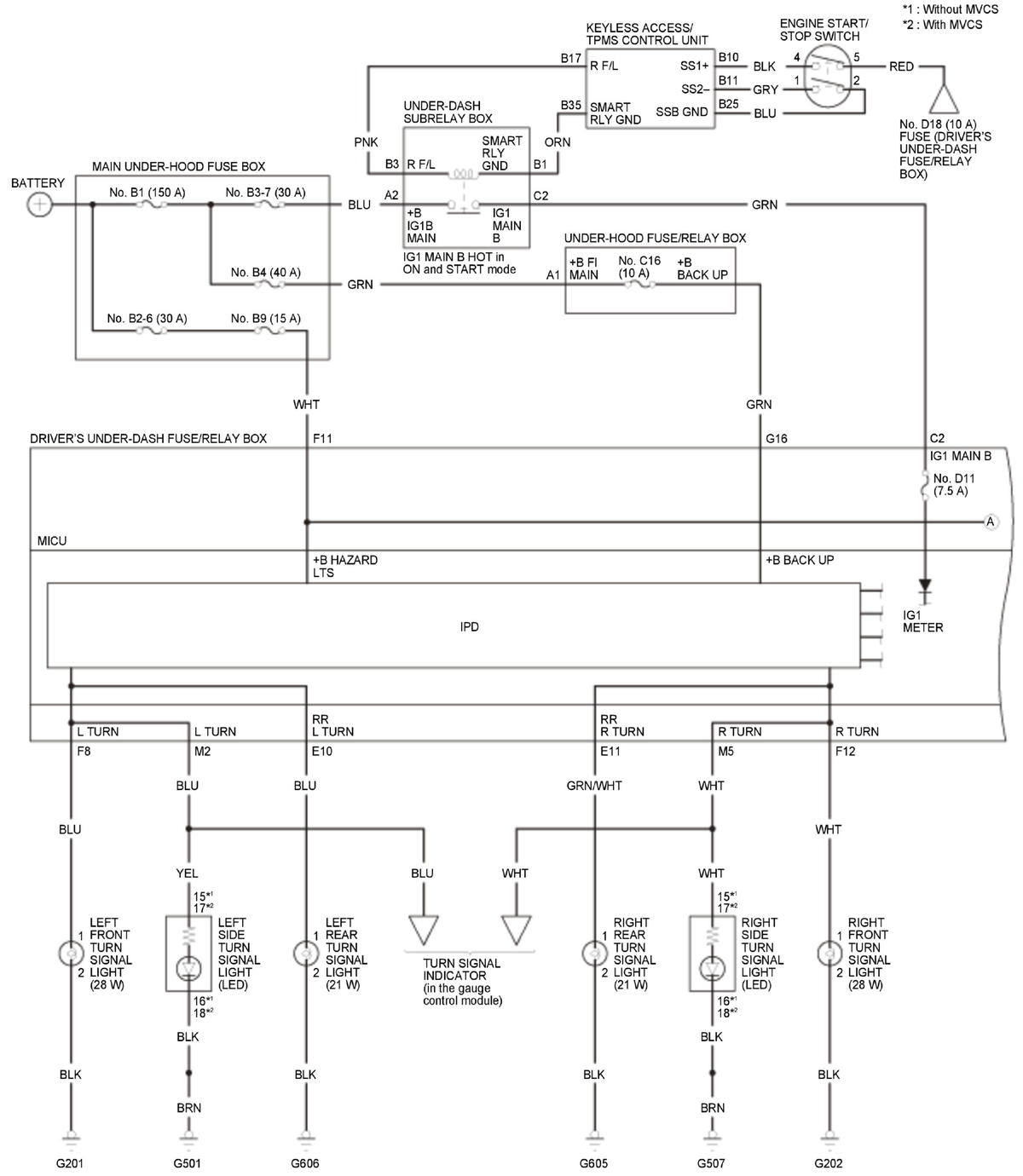

GHH320831

Courtesy of HONDA, U.S.A., INC.

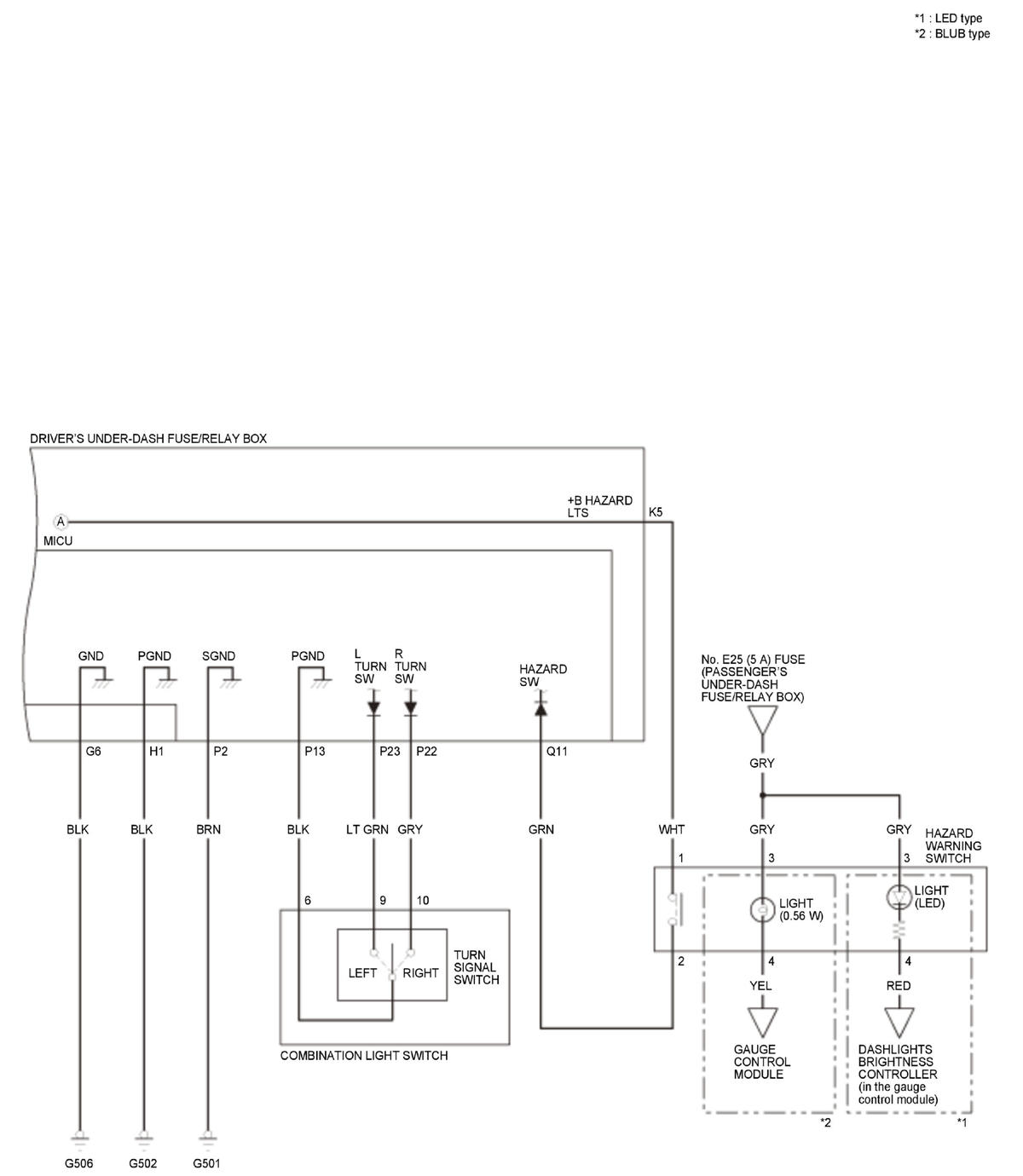

GHH320832

Courtesy of HONDA, U.S.A., INC.
