Turn Signal/Hazard Warning Lights Circuit Diagram (2014 2015)

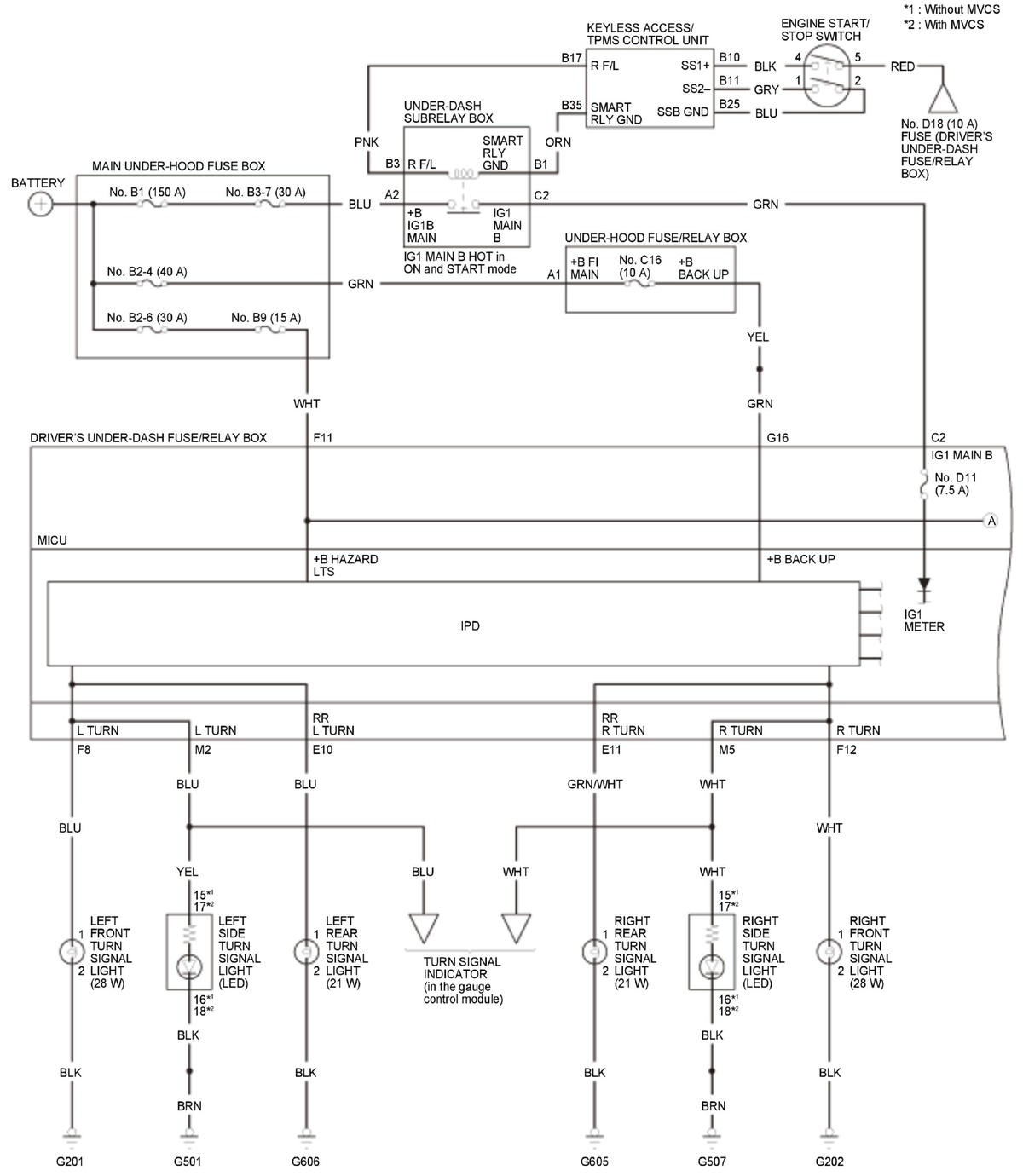

GHH320829

Courtesy of HONDA, U.S.A., INC.

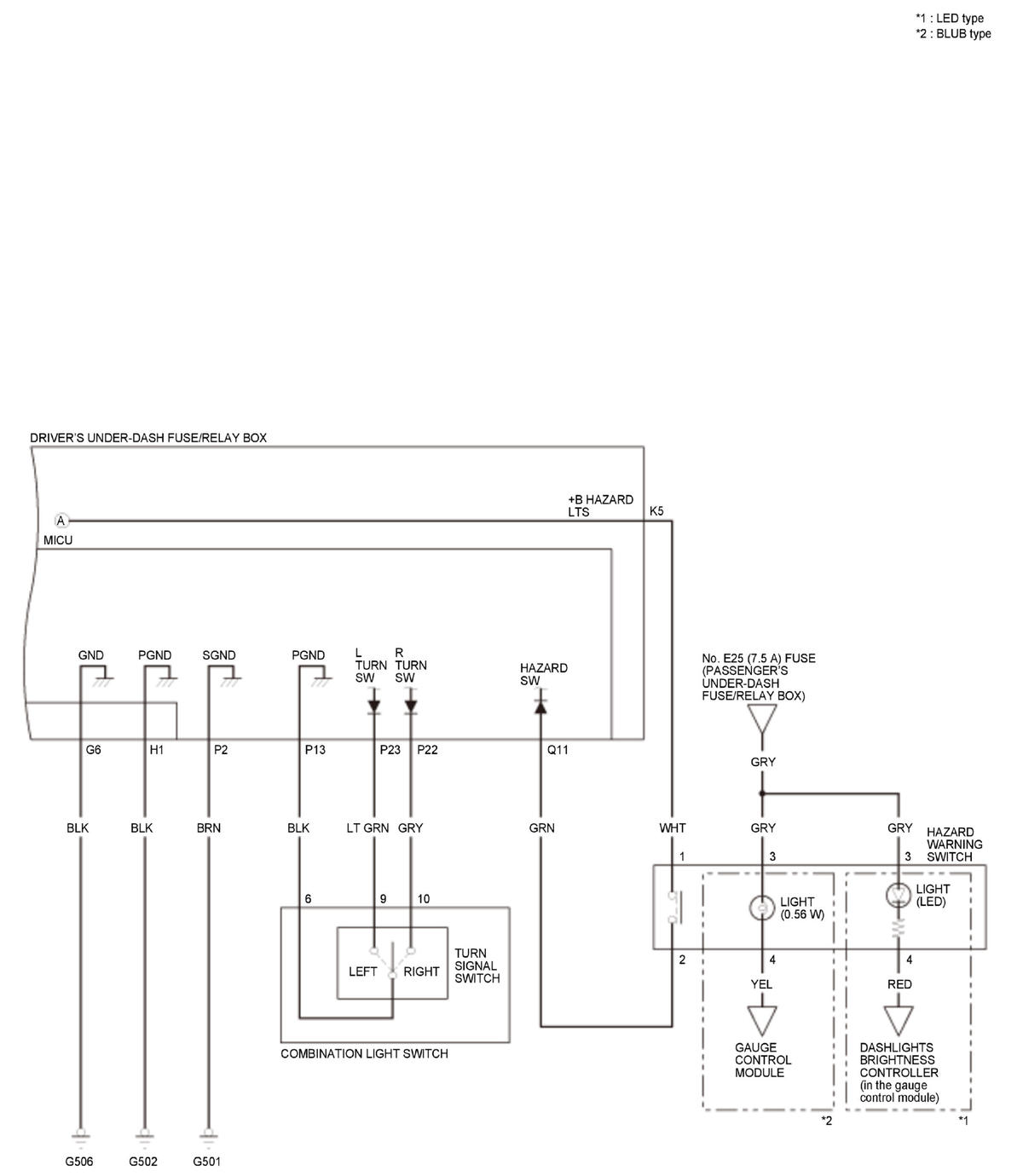

GHH320830

Courtesy of HONDA, U.S.A., INC.
