Exterior Lights Circuit Diagram (Headlights/Parking/Taillights/License Plate Lights) (2019 2020)

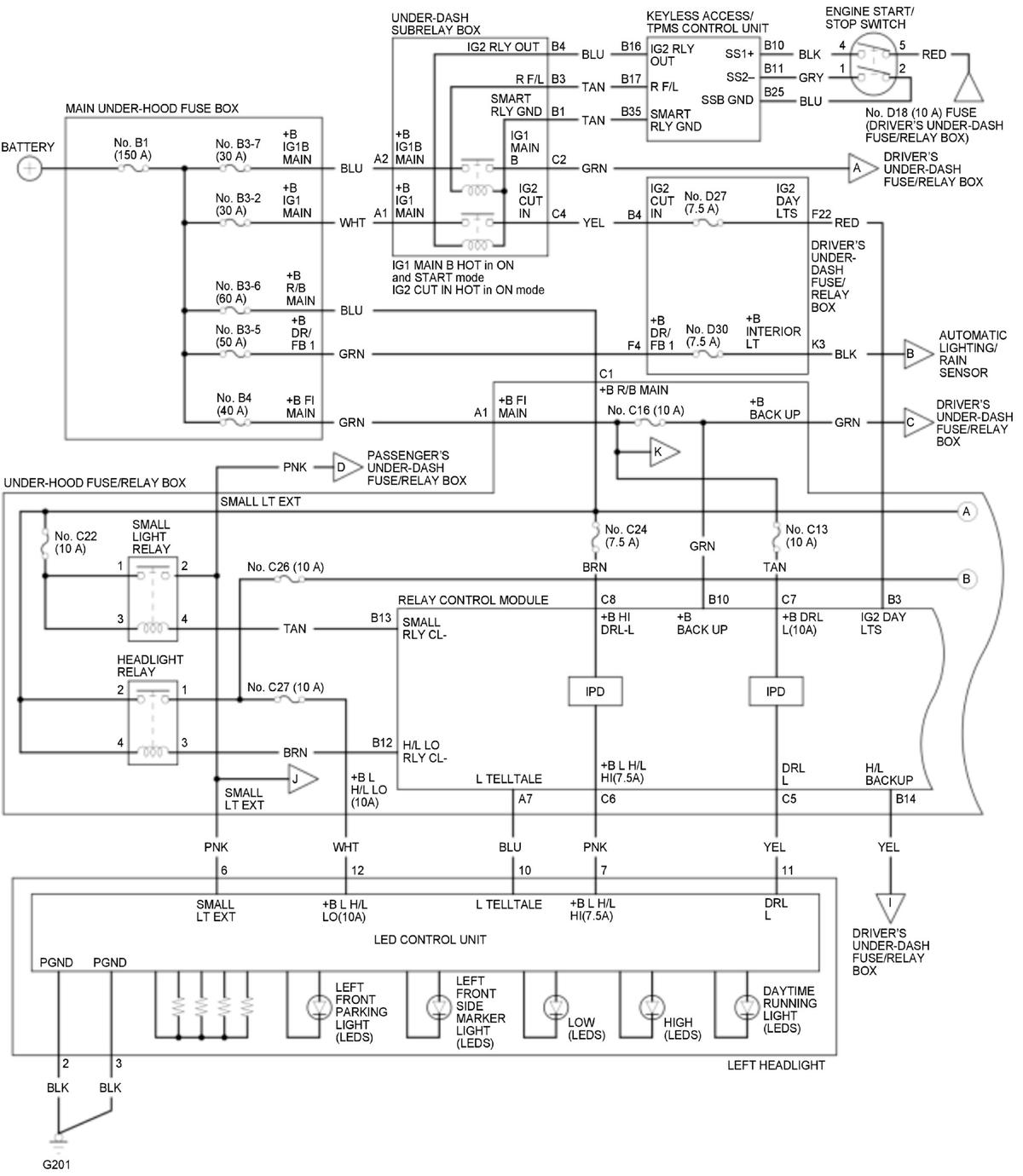

GHH320822Courtesy of HONDA, U.S.A., INC.

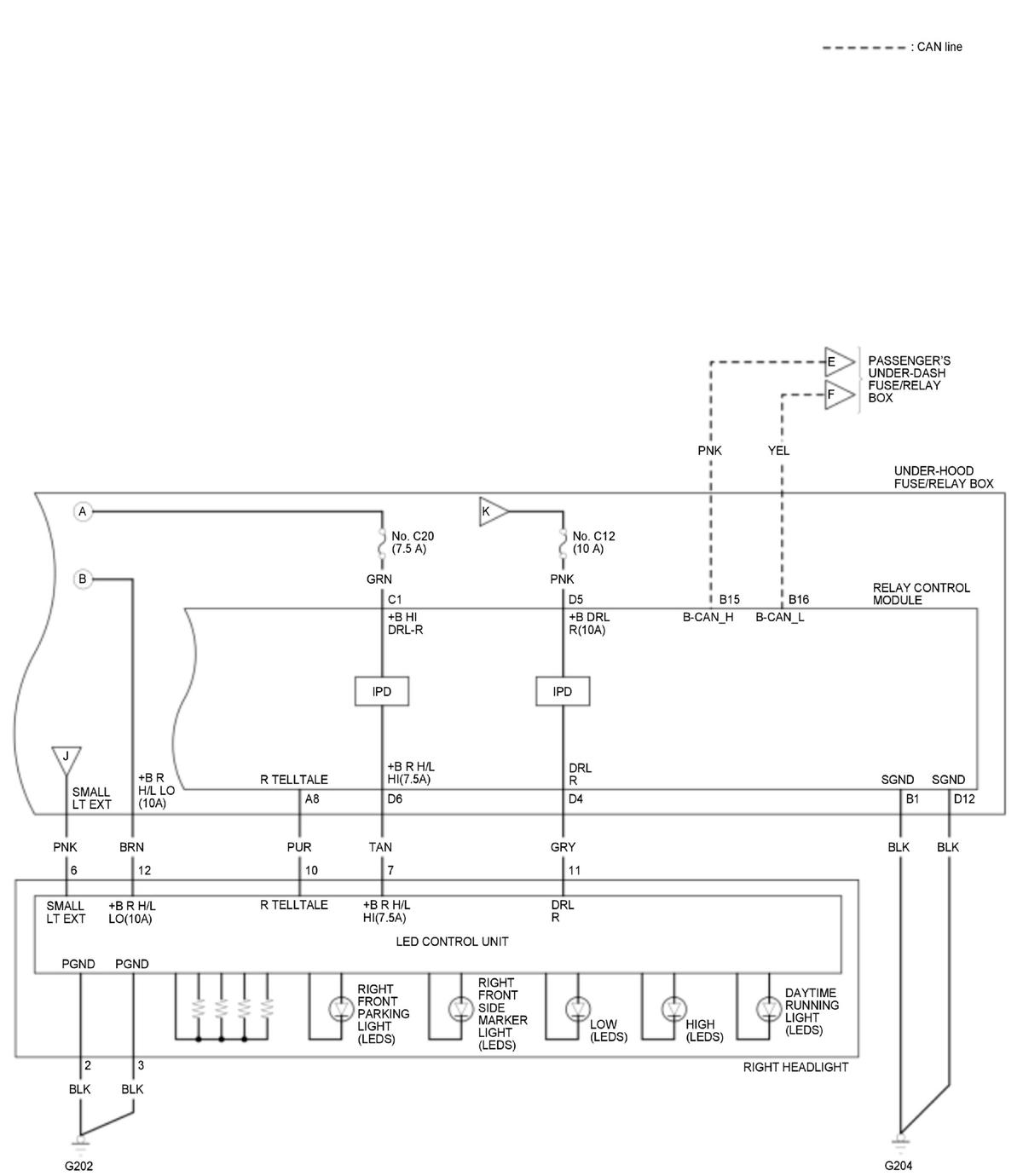

GHH320823Courtesy of HONDA, U.S.A., INC.

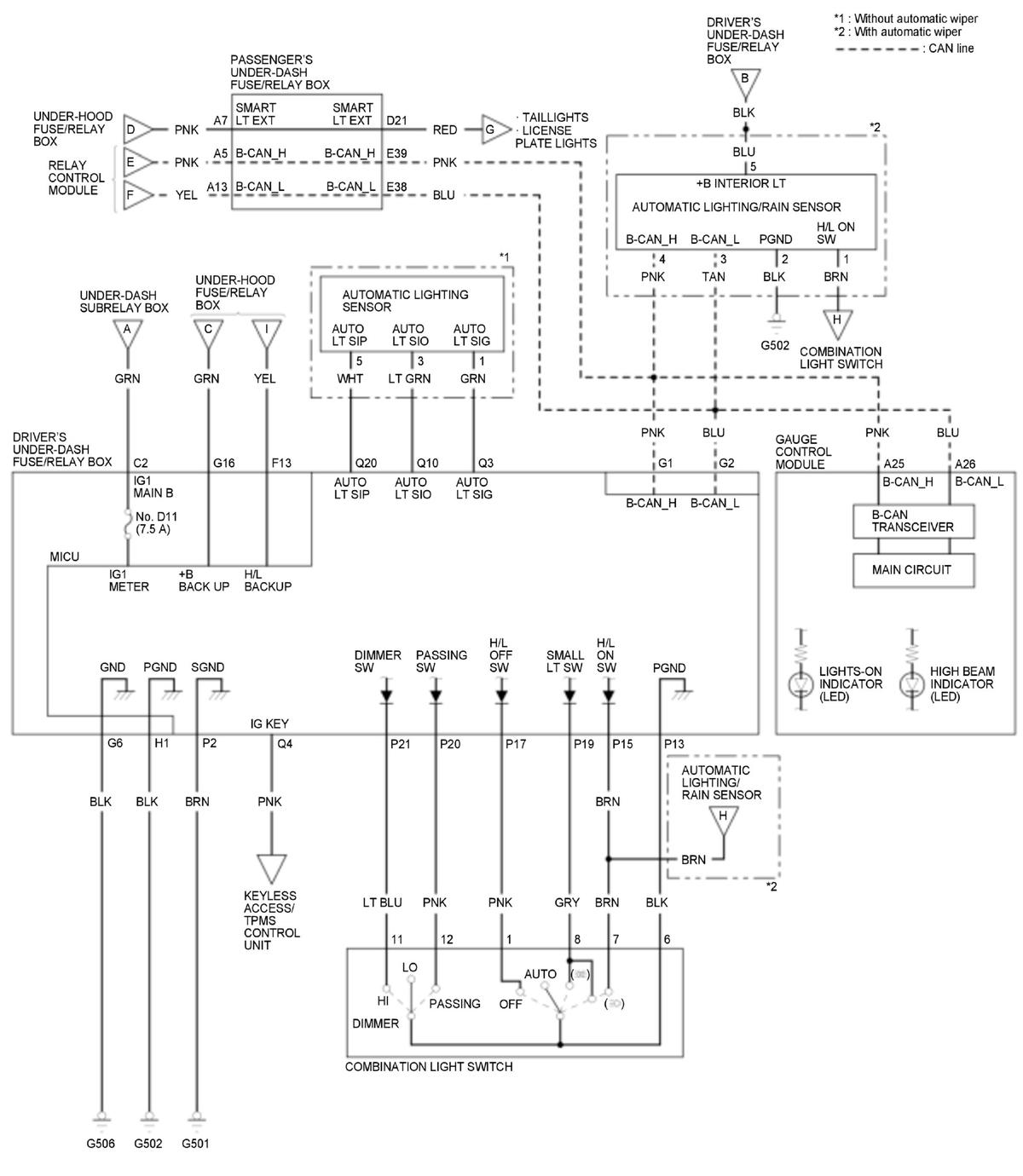

GHH320824Courtesy of HONDA, U.S.A., INC.

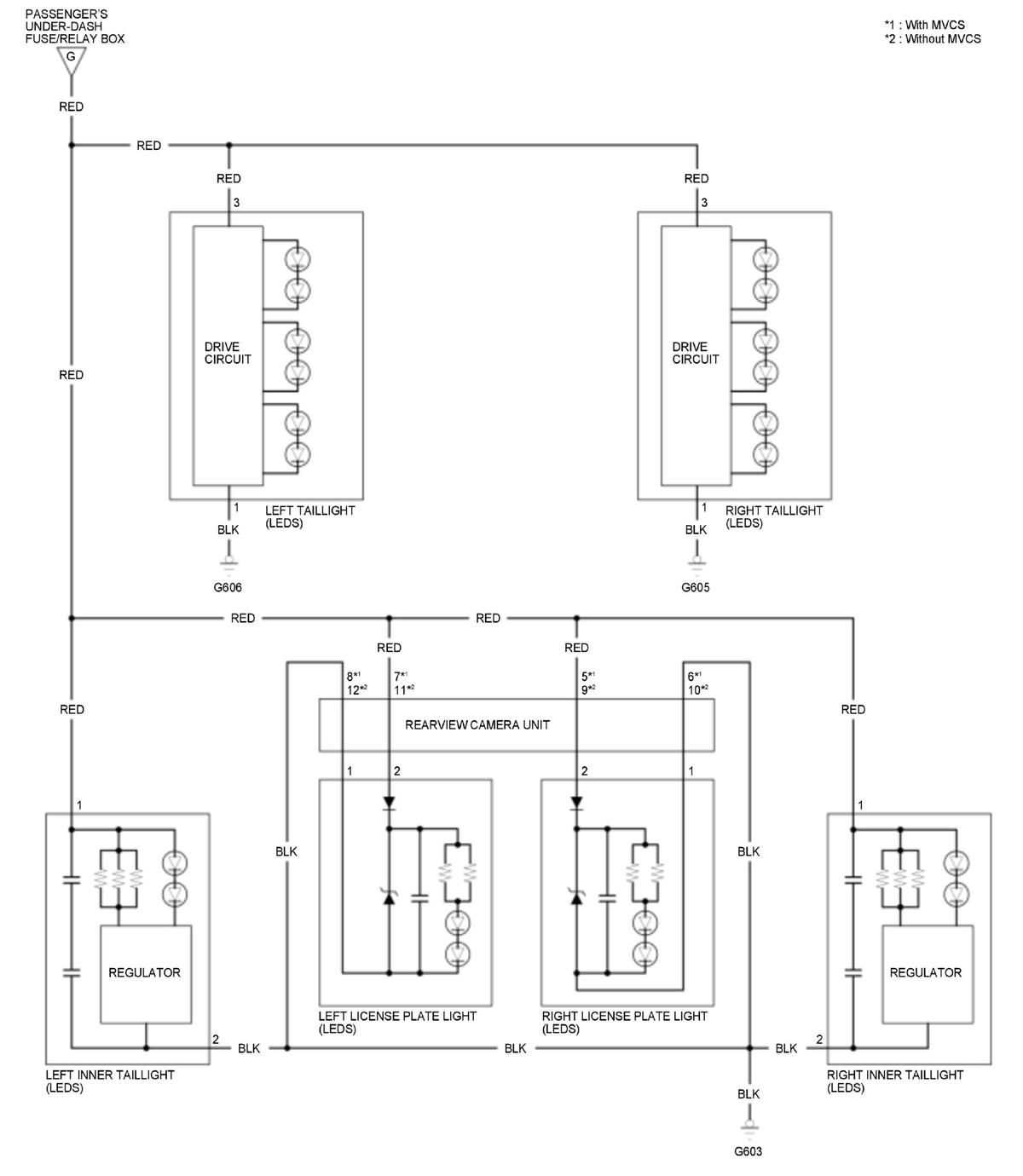

GHH320825Courtesy of HONDA, U.S.A., INC.
