Exterior Lights Circuit Diagram (Headlights/Parking/Taillights/License Plate Lights) (2014 2015)

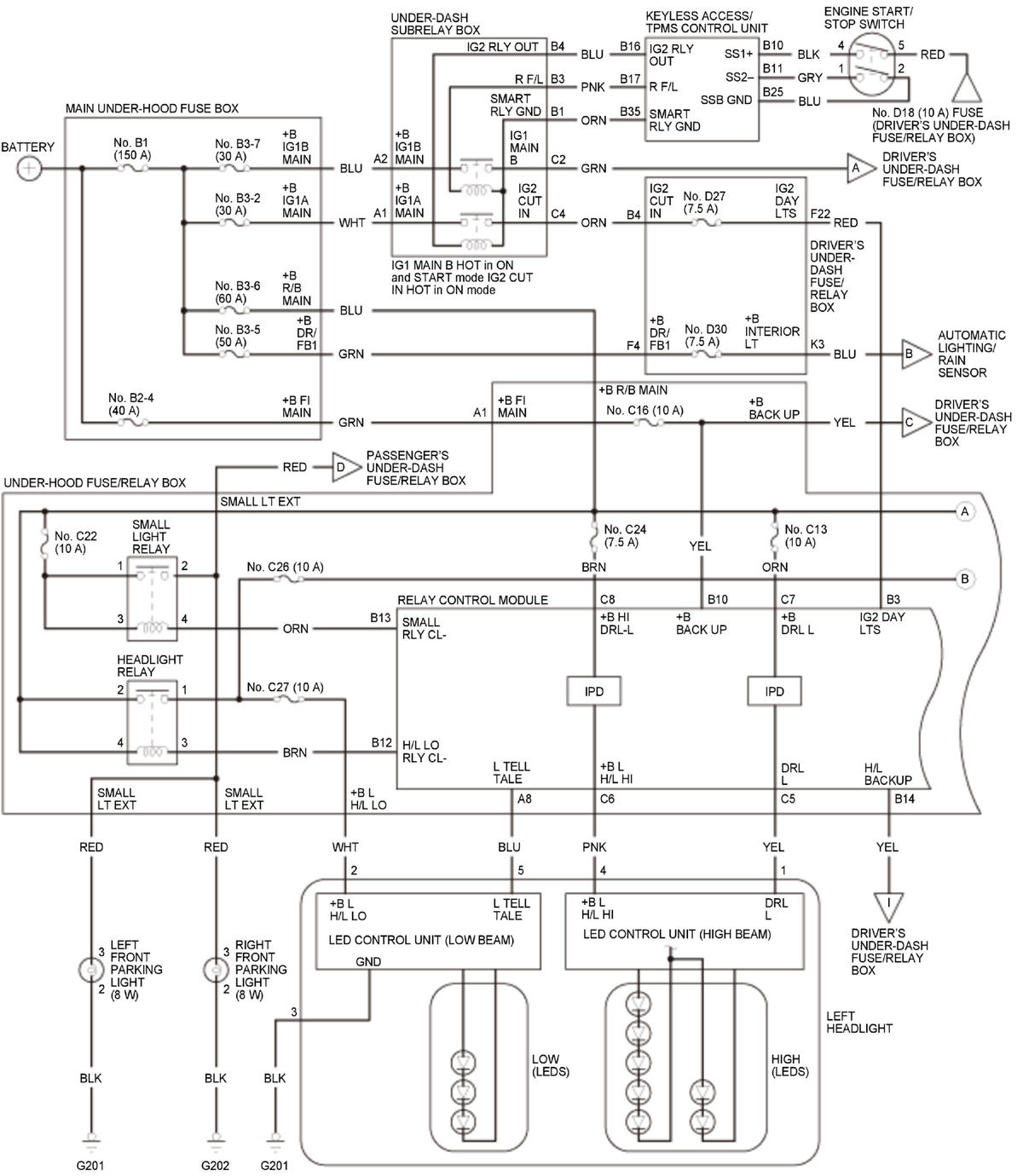

GHH320792Courtesy of HONDA, U.S.A., INC.

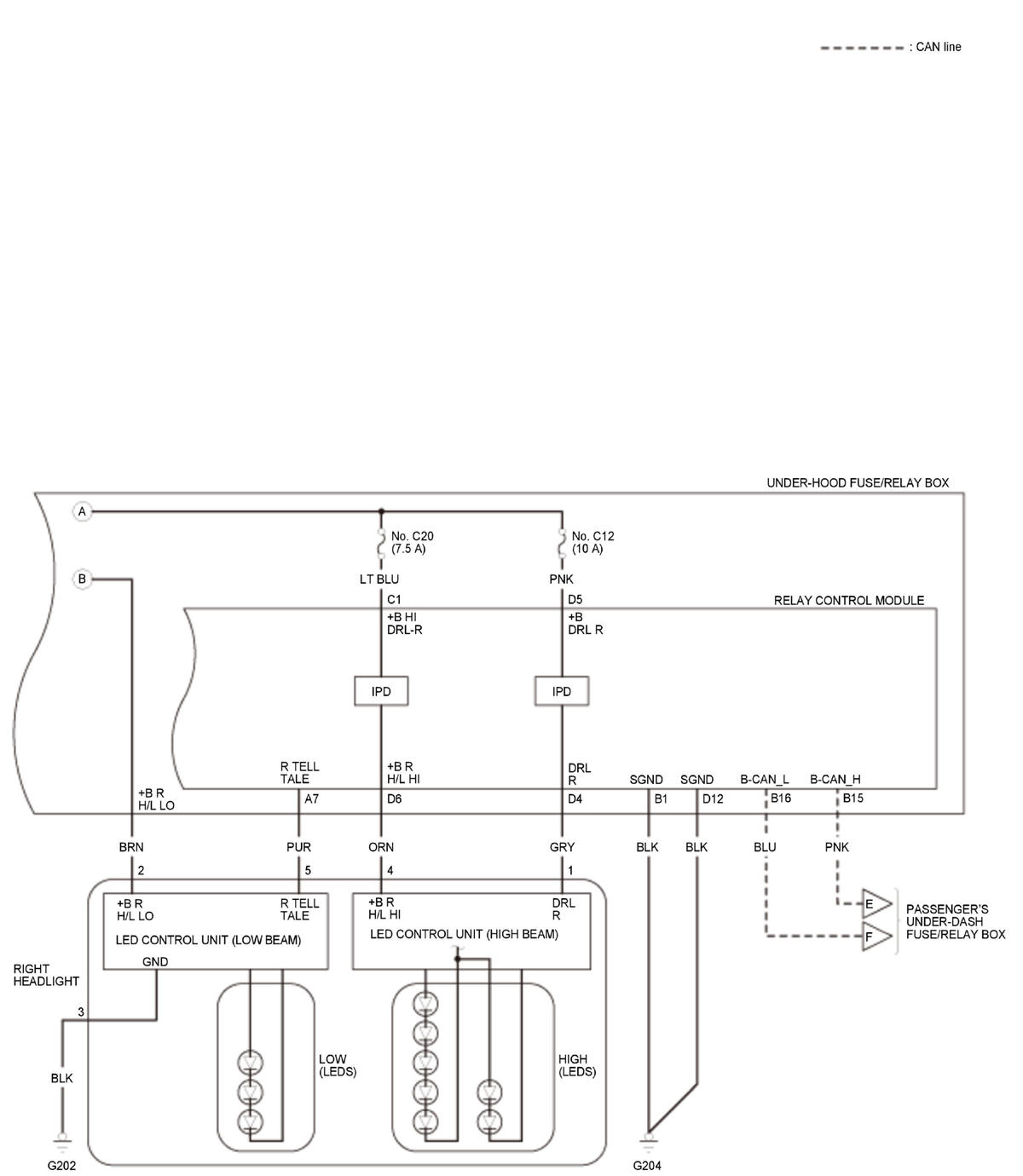

GHH320793Courtesy of HONDA, U.S.A., INC.

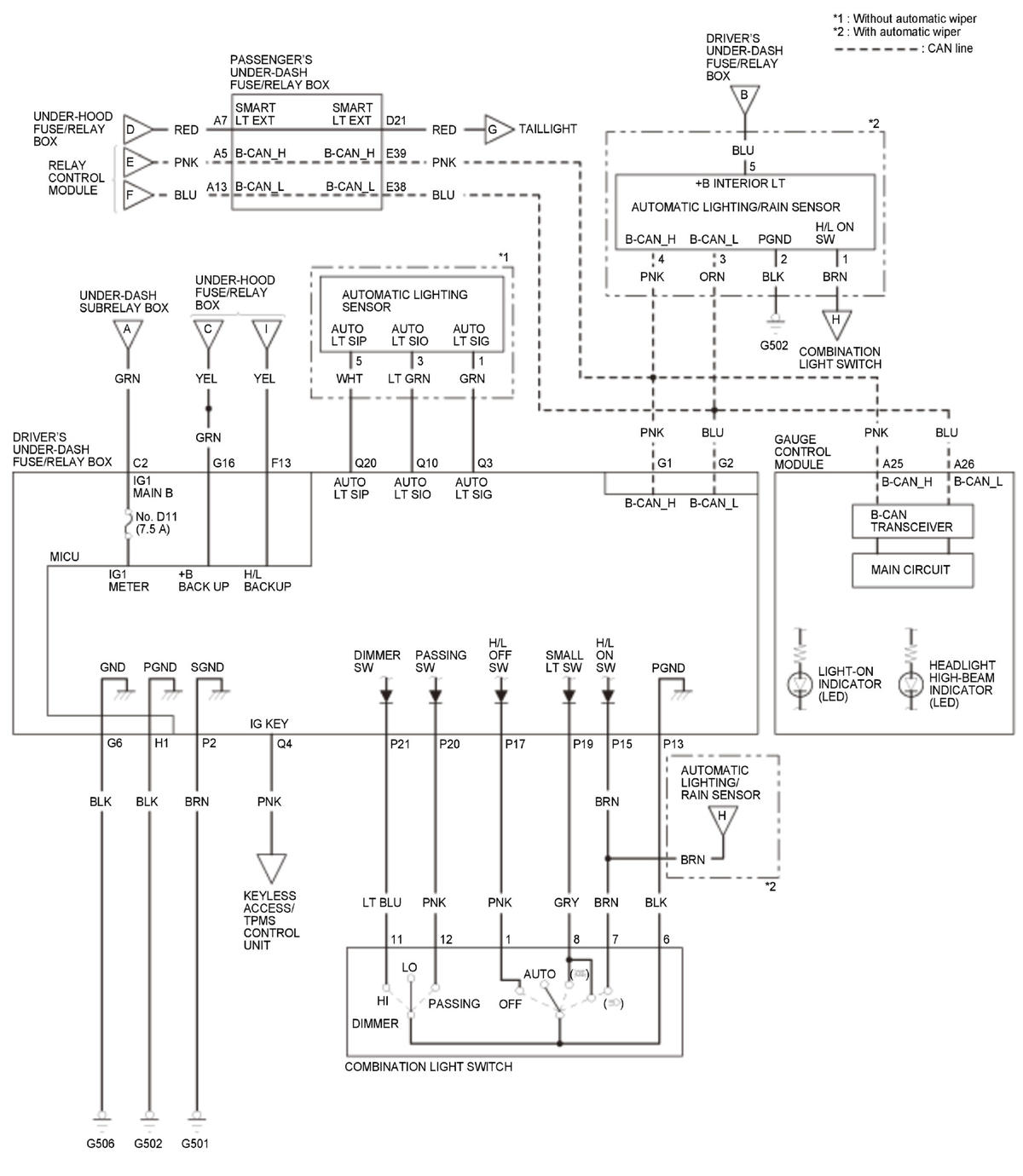

GHH320794Courtesy of HONDA, U.S.A., INC.

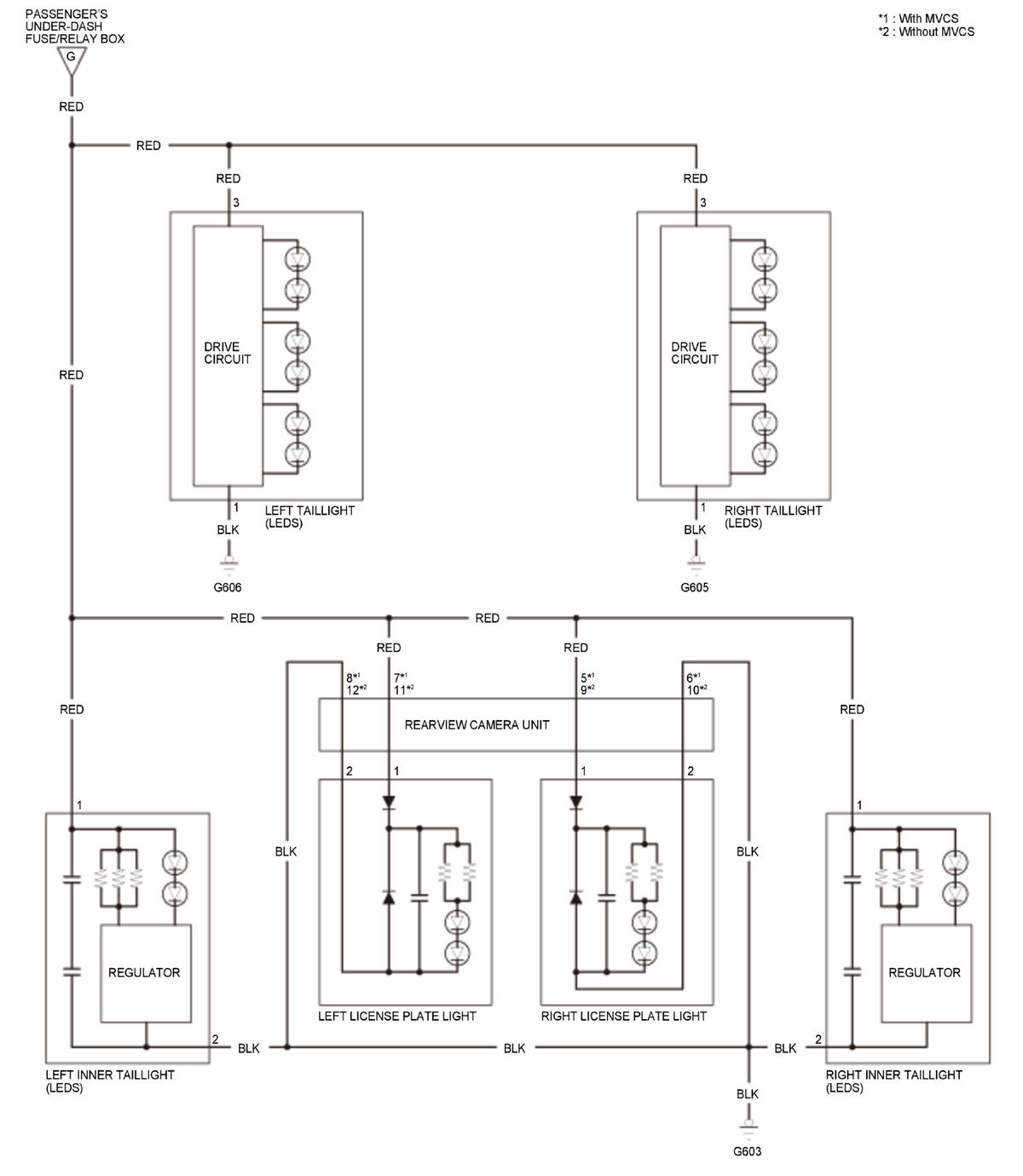

GHH320795Courtesy of HONDA, U.S.A., INC.
