Exterior Lights Circuit Diagram (Headlights/Parking/Taillights/License Plate Lights (Without Auto Idle Stop System)) (2017 2018)

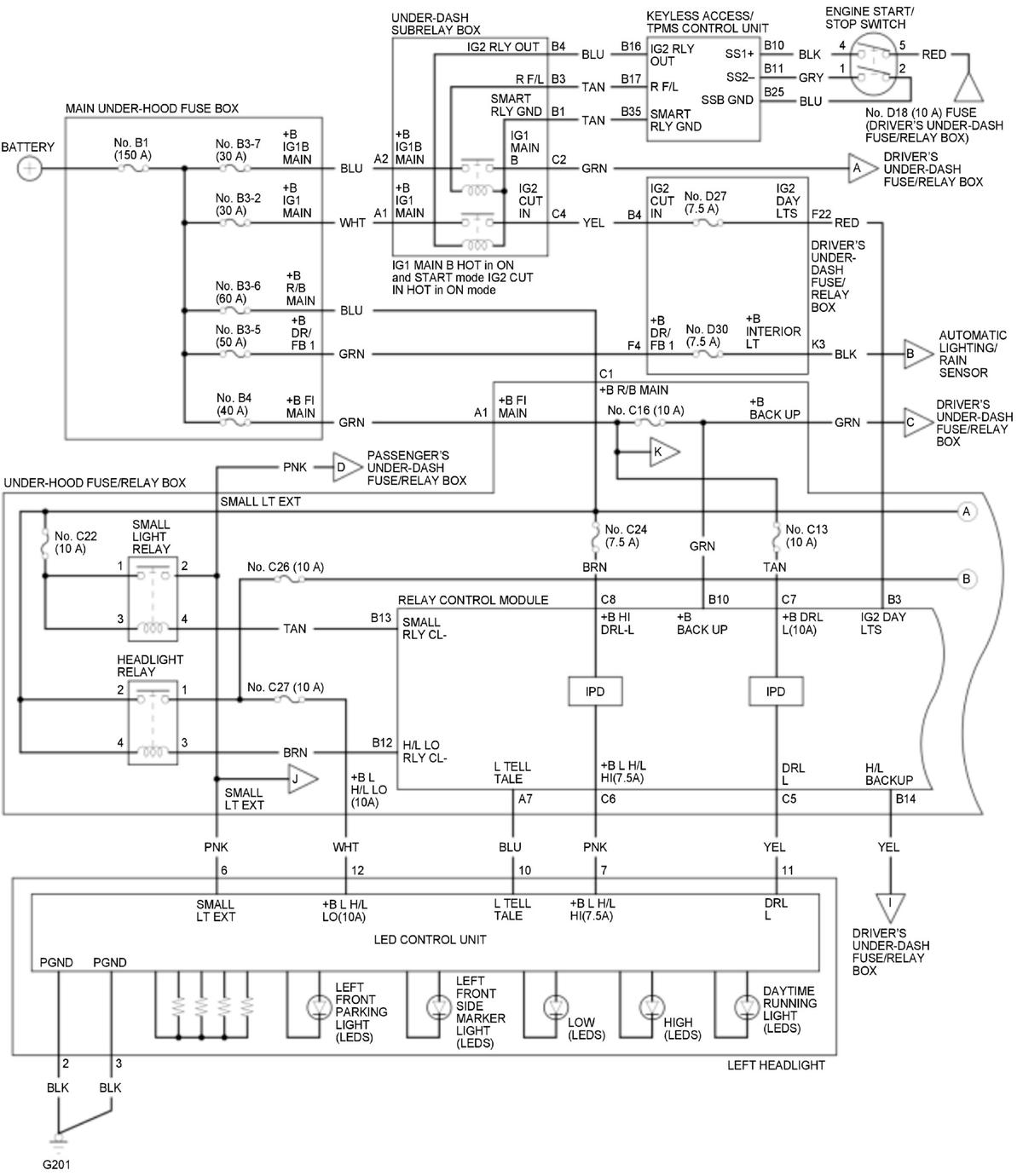

GHH320816Courtesy of HONDA, U.S.A., INC.

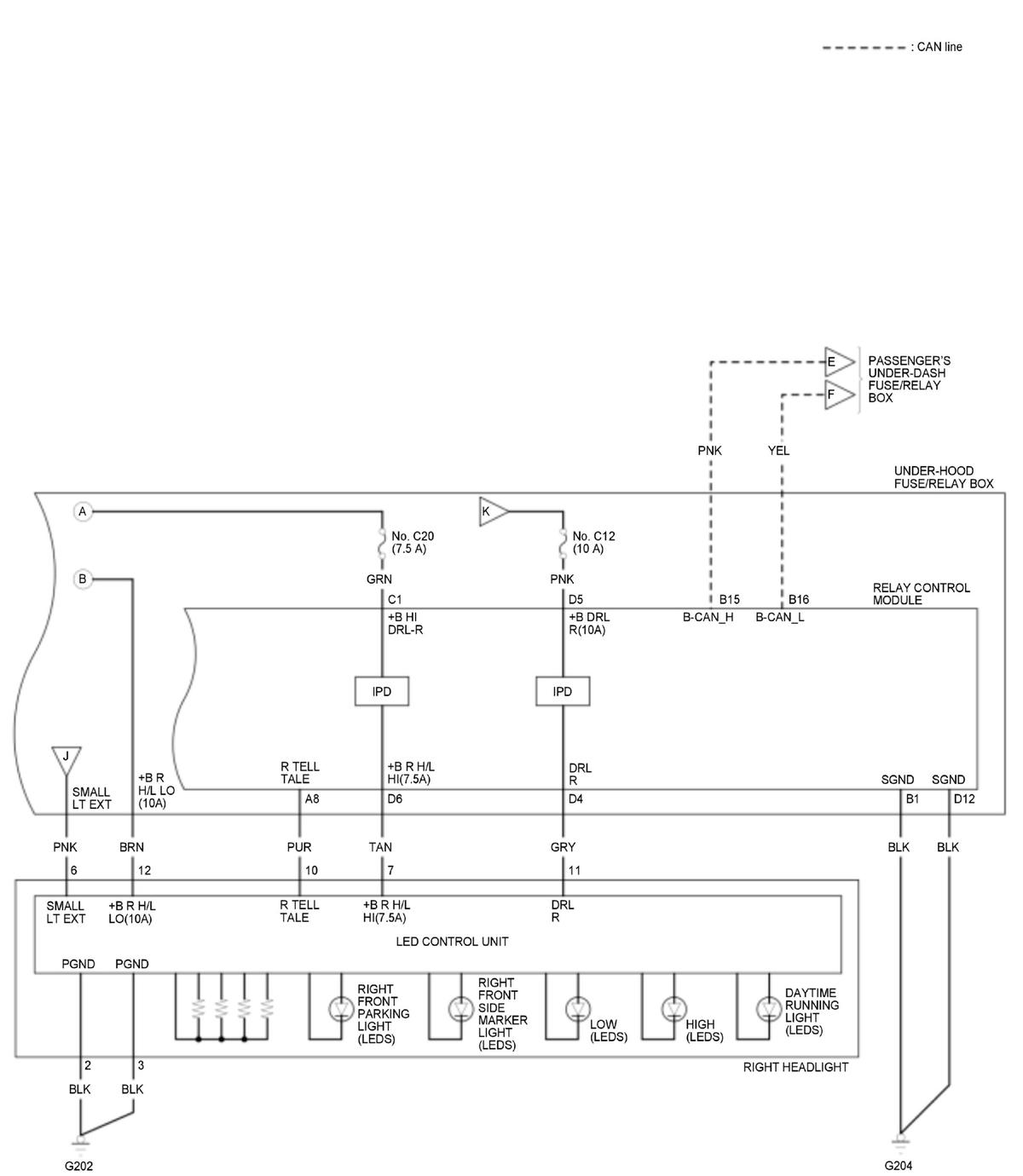

GHH320817Courtesy of HONDA, U.S.A., INC.

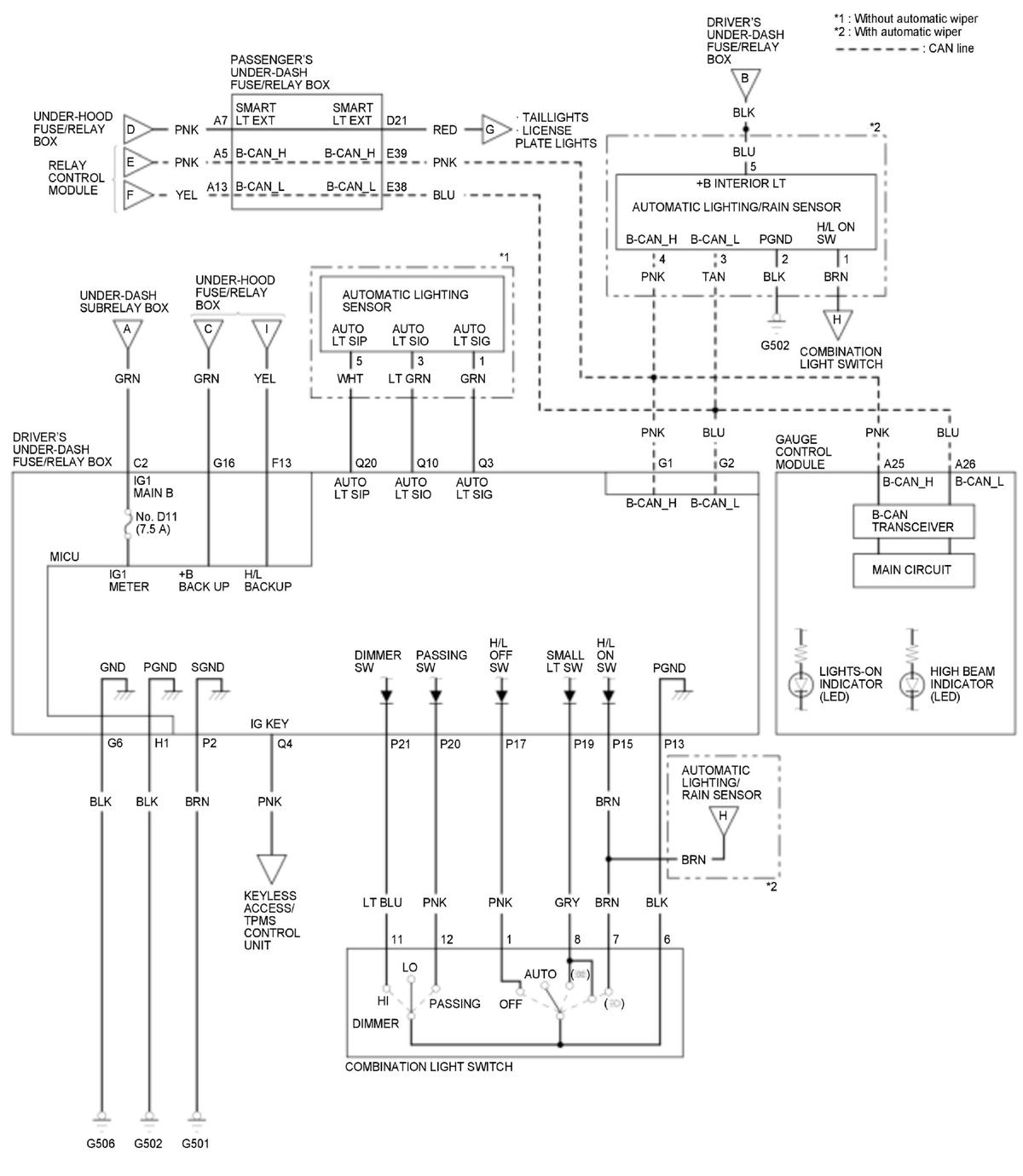

GHH320818Courtesy of HONDA, U.S.A., INC.

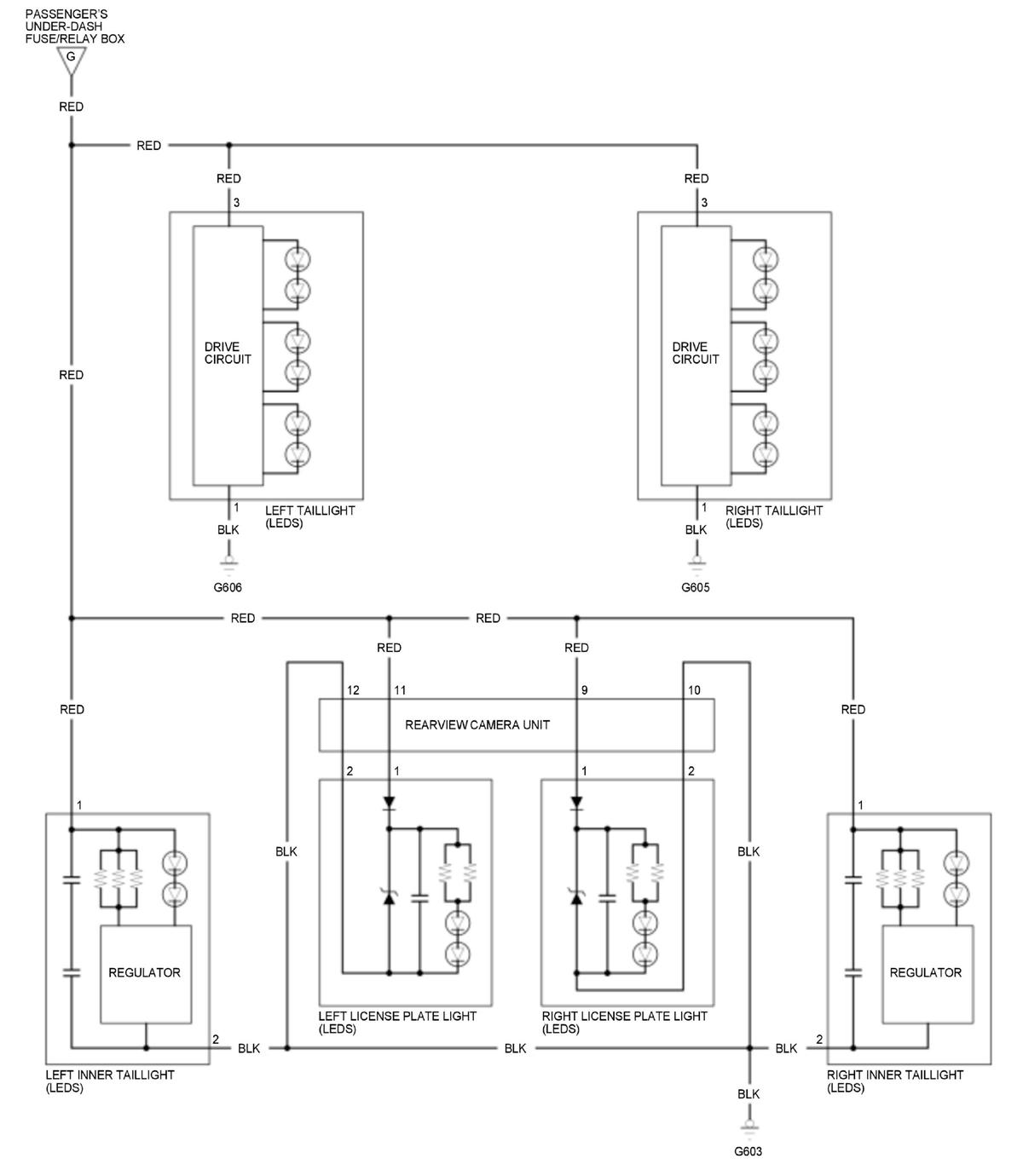

GHH320819Courtesy of HONDA, U.S.A., INC.
