Exterior Lights Circuit Diagram (Headlights/Parking/Taillights/License Plate Lights (Without Auto Idle Stop System)) (2016)

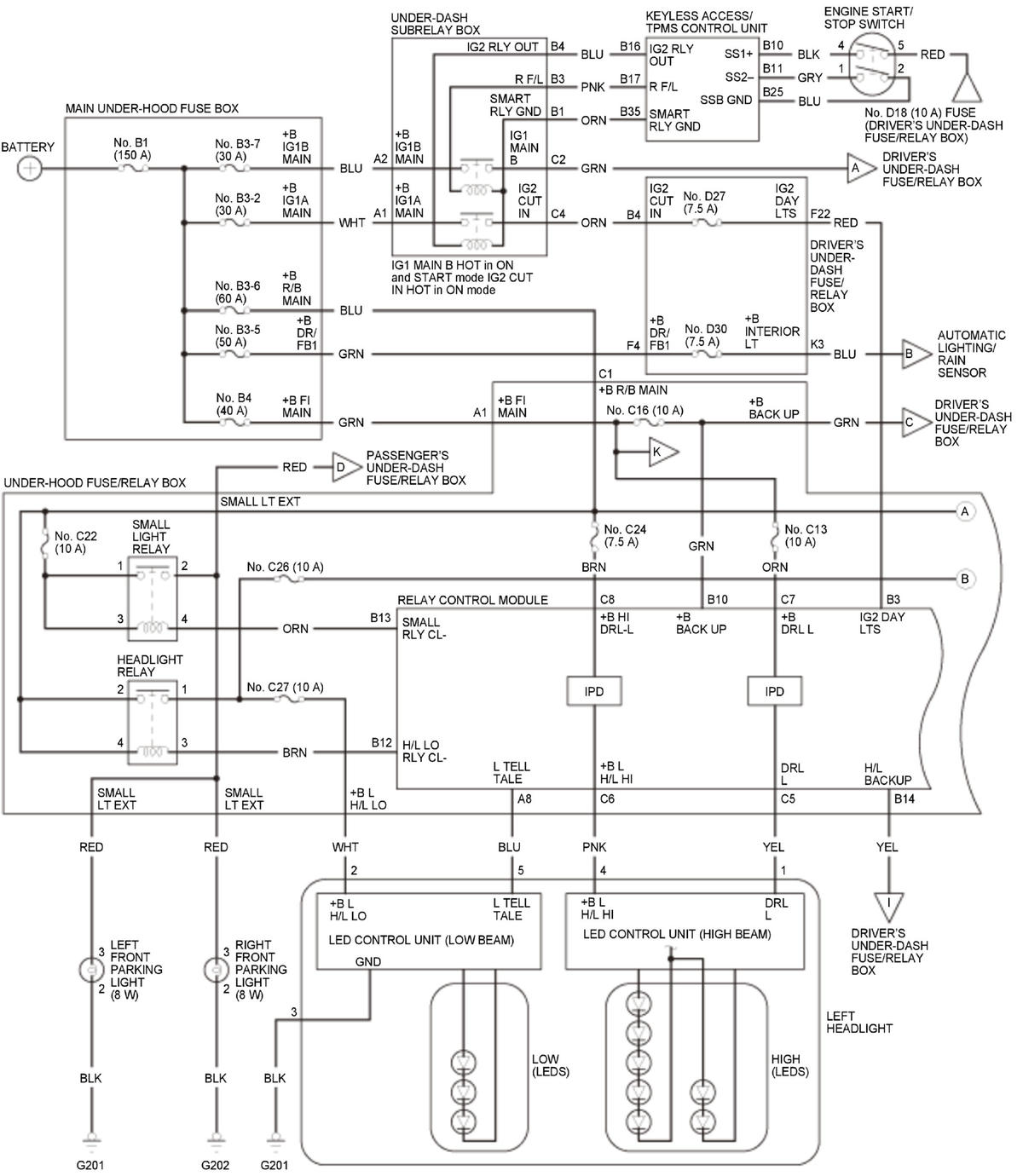

GHH320797Courtesy of HONDA, U.S.A., INC.

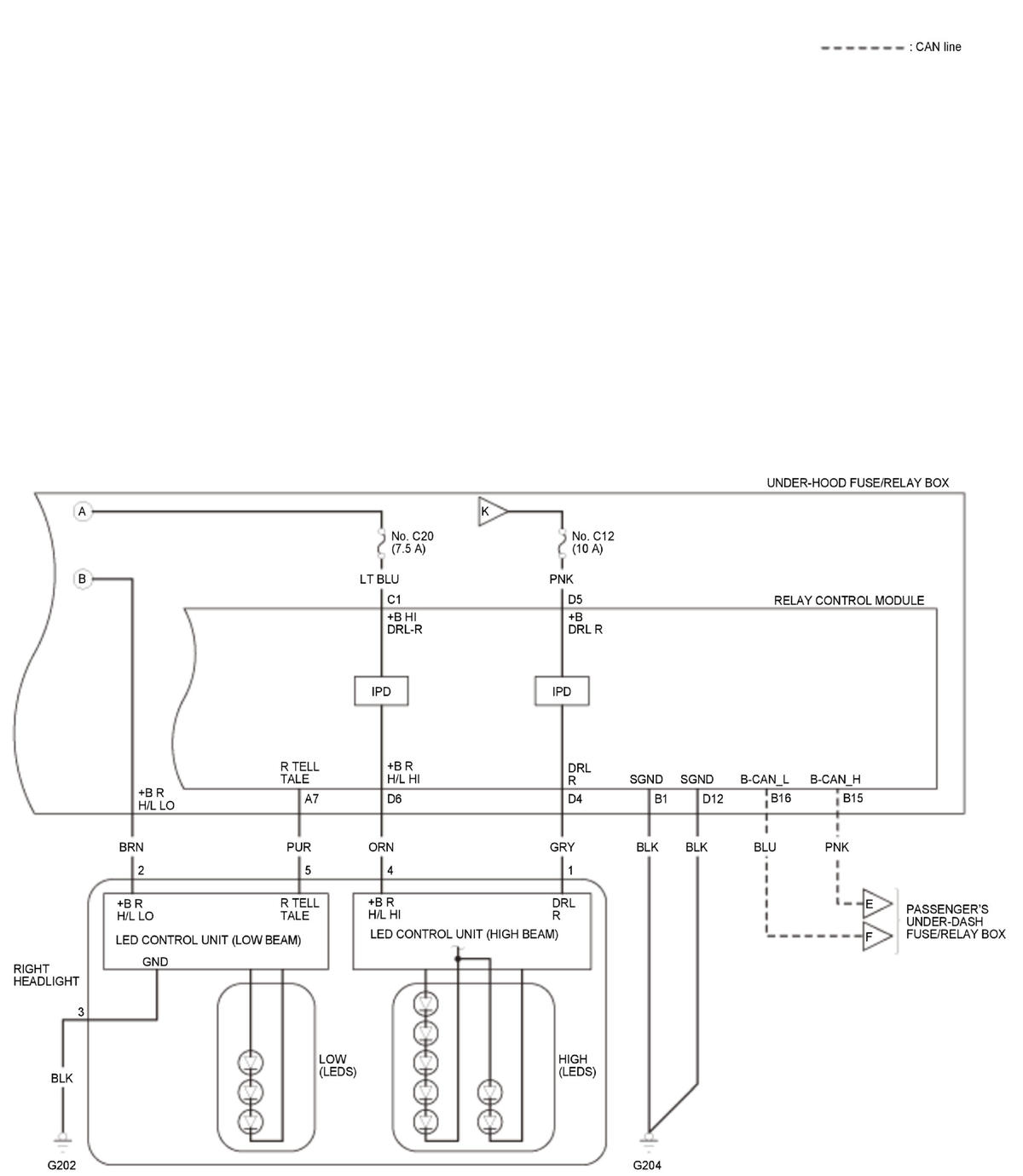

GHH320798Courtesy of HONDA, U.S.A., INC.

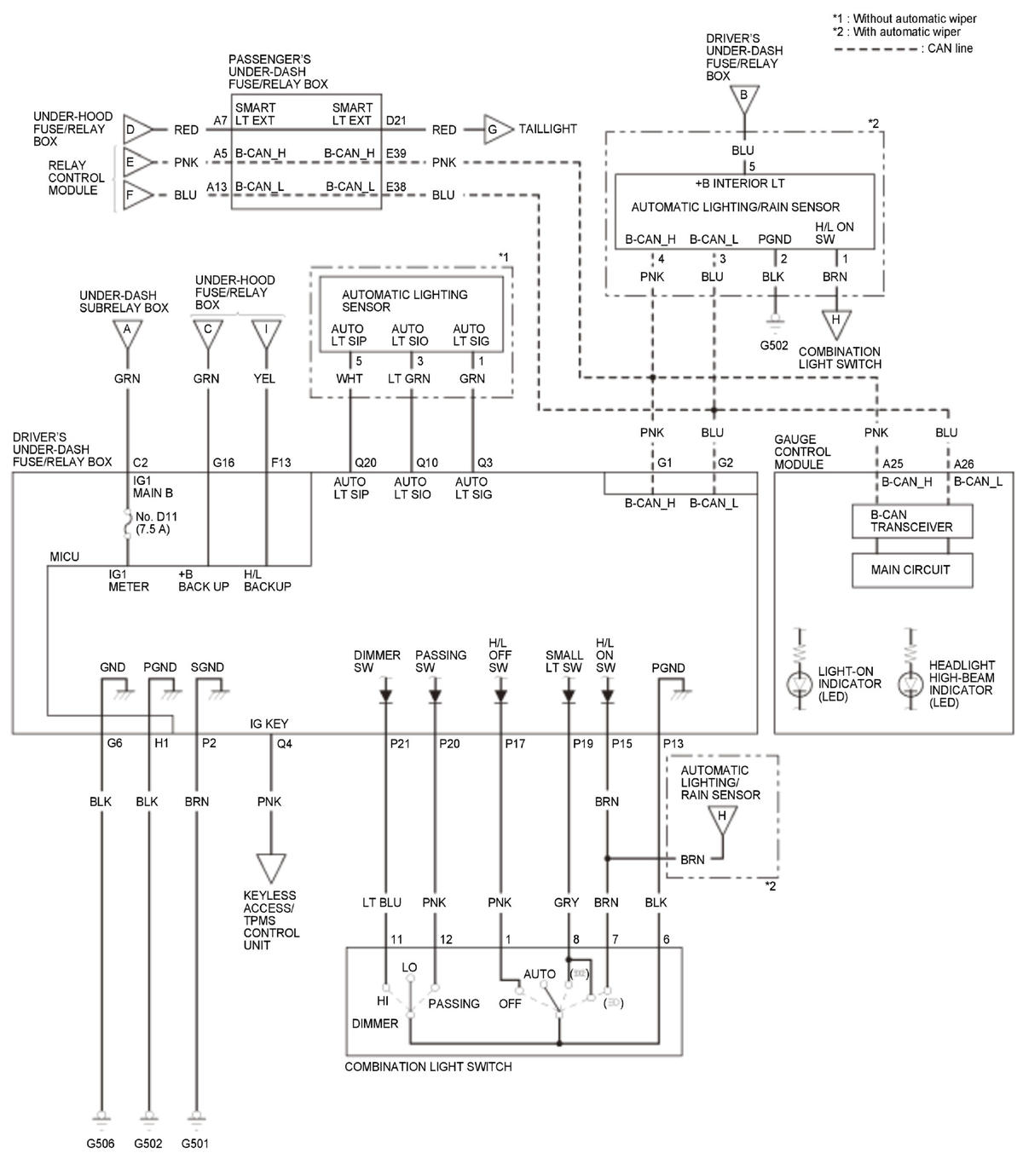

GHH320799Courtesy of HONDA, U.S.A., INC.

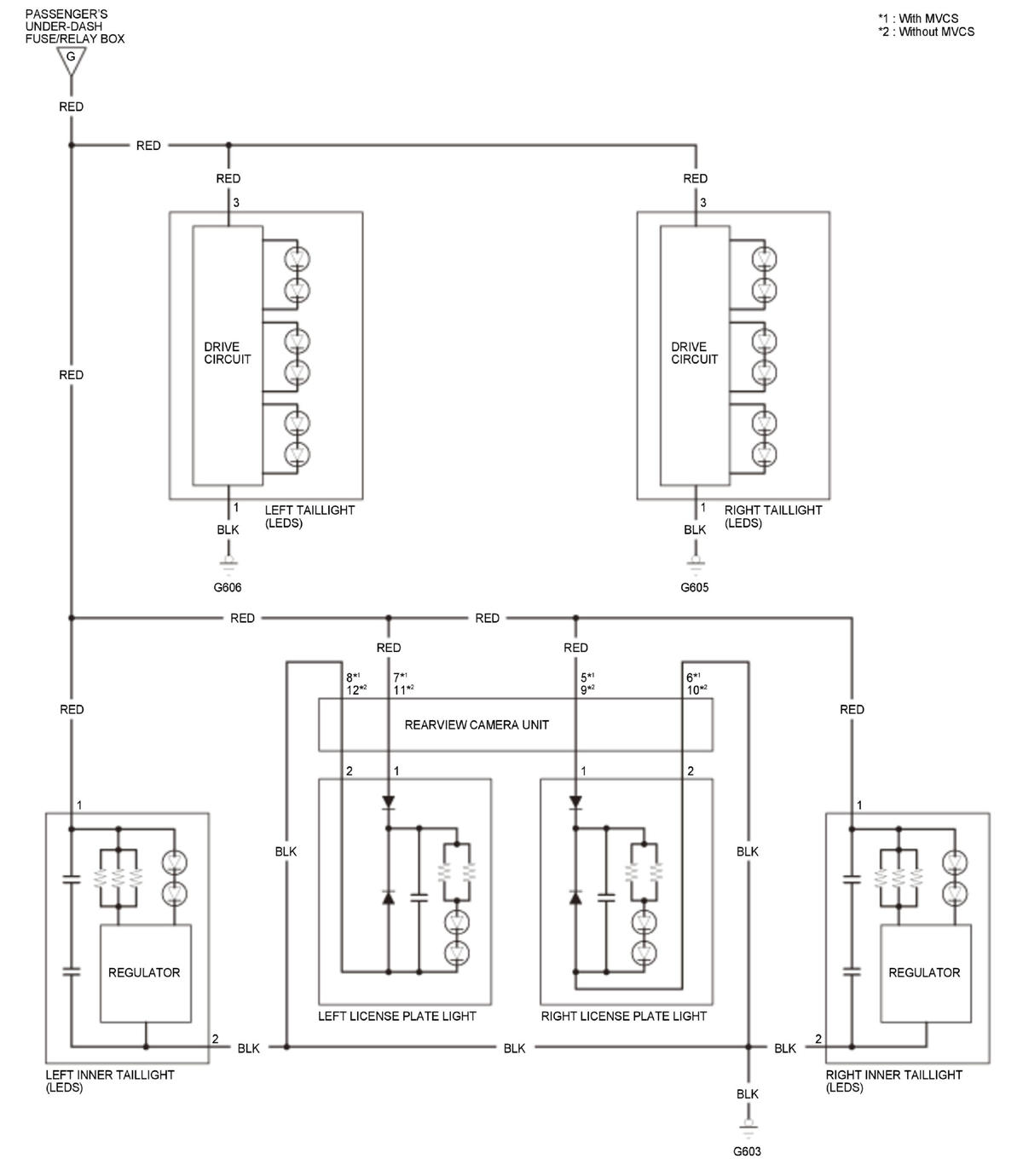

GHH320800Courtesy of HONDA, U.S.A., INC.
