Exterior Lights Circuit Diagram (Headlights/Parking/Taillights/License Plate Lights (With Auto Idle Stop System)) (2017 2018)

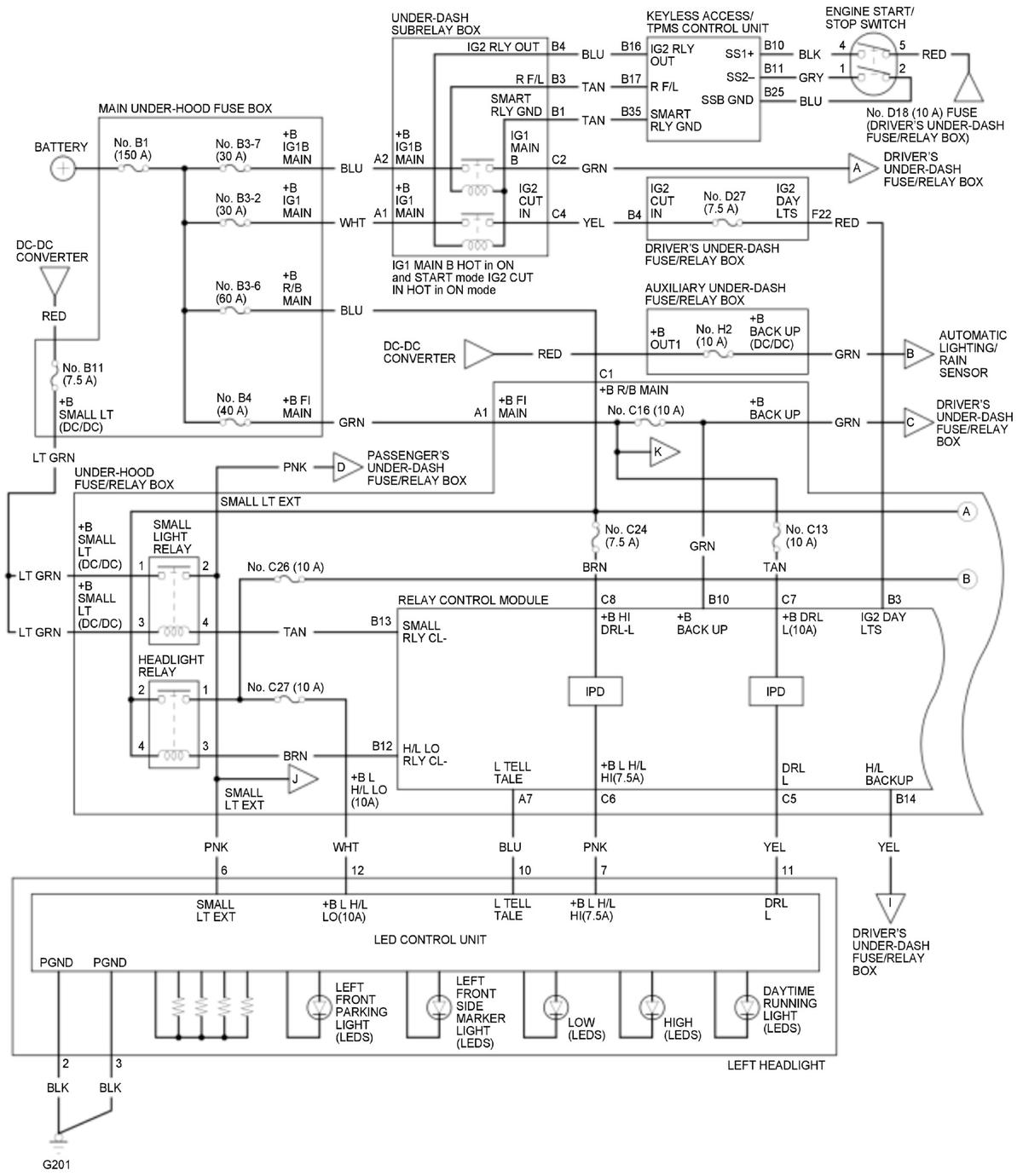

GHH320812Courtesy of HONDA, U.S.A., INC.

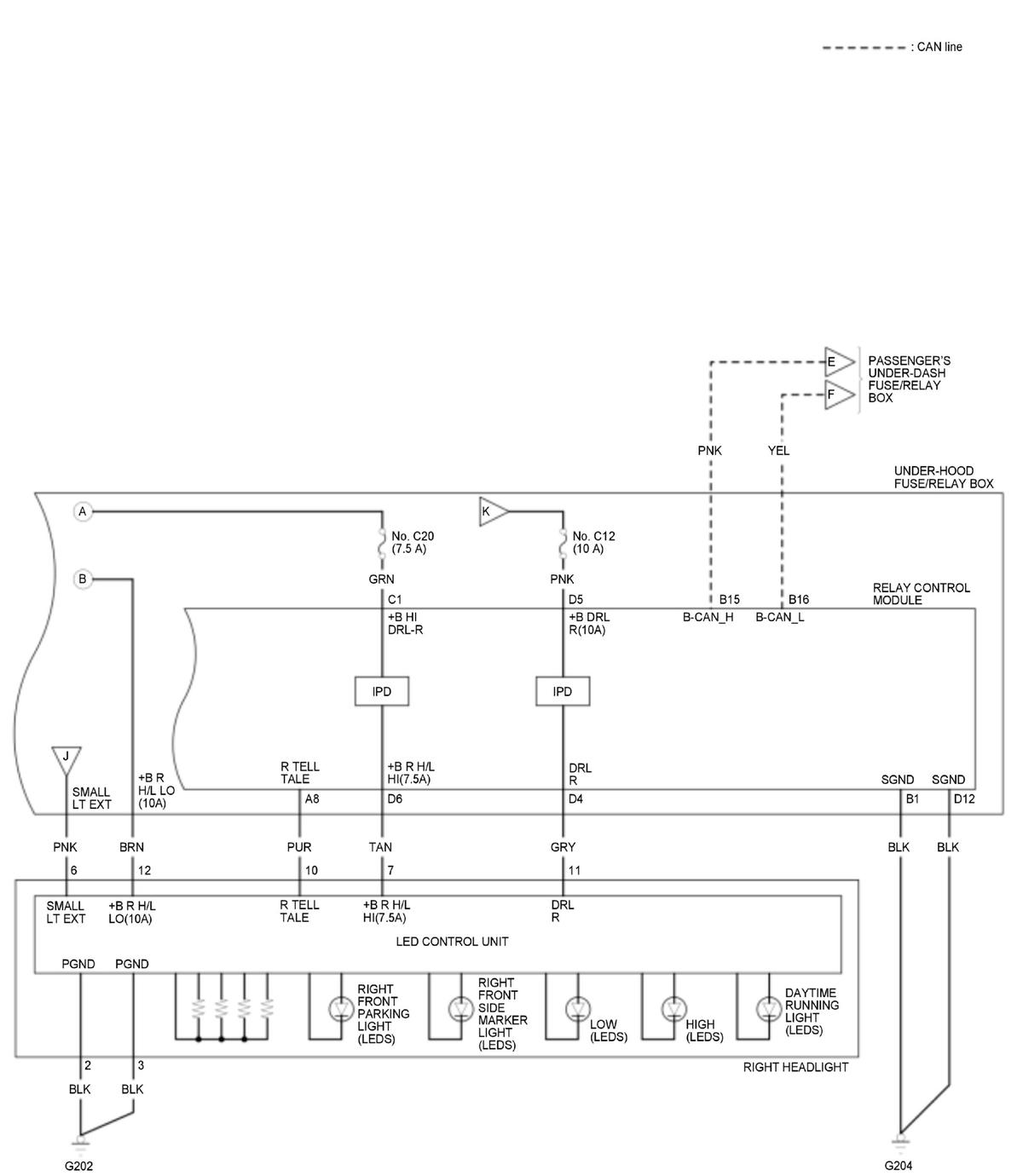

GHH320813Courtesy of HONDA, U.S.A., INC.

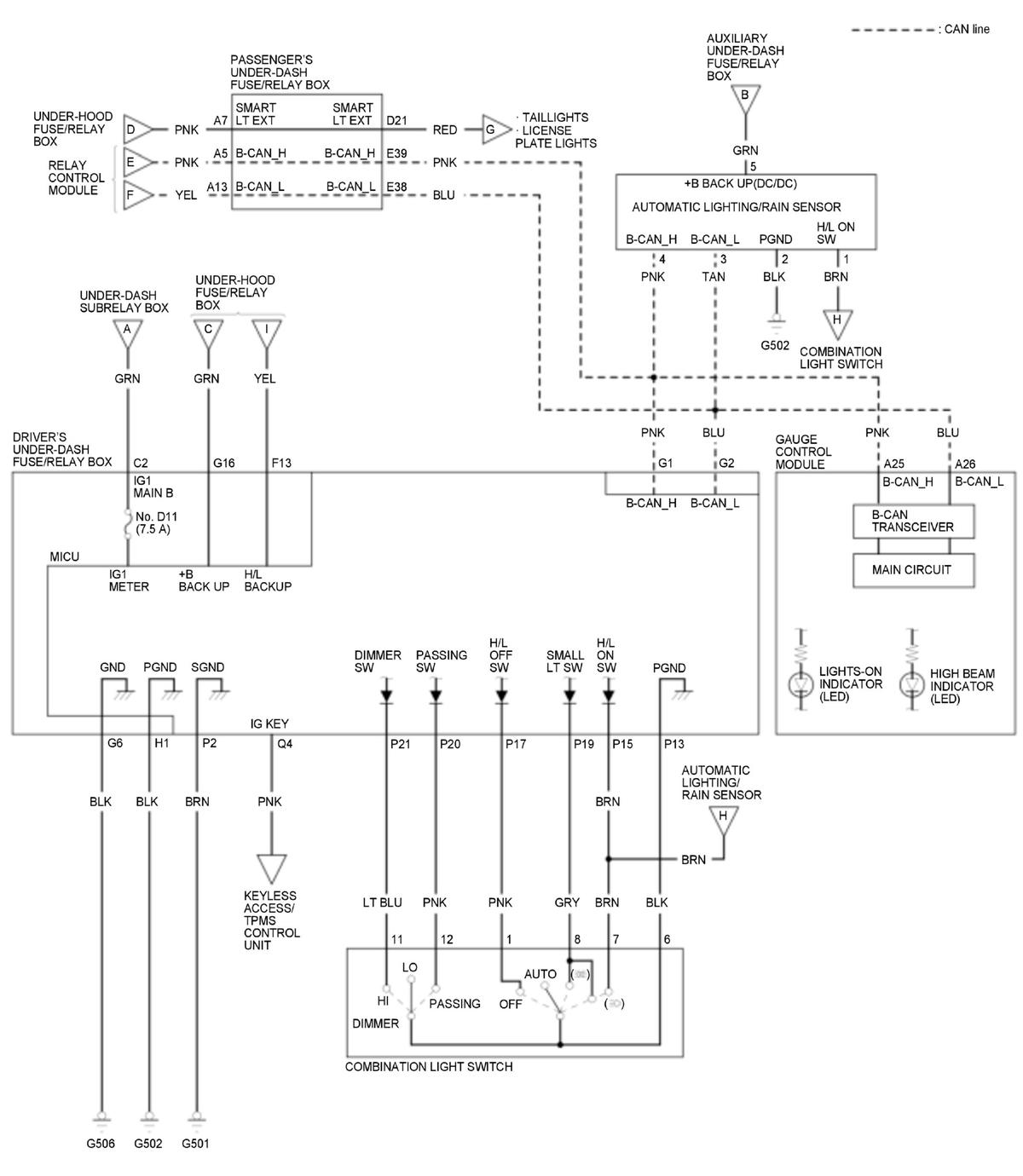

GHH320814Courtesy of HONDA, U.S.A., INC.

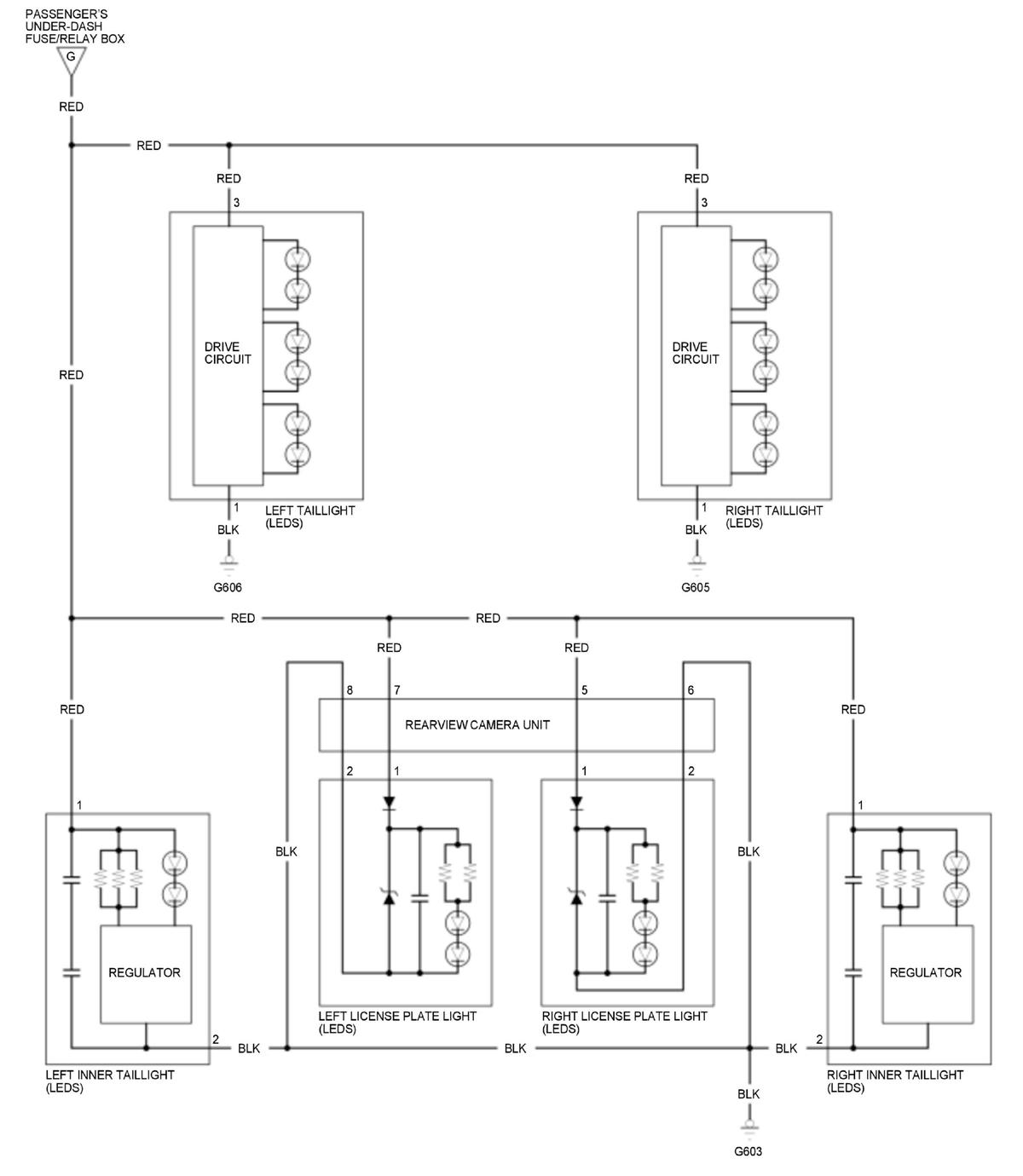

GHH320815Courtesy of HONDA, U.S.A., INC.
