Exterior Lights Circuit Diagram (Headlights/Parking/Taillights/License Plate Lights (With Auto Idle Stop System)) (2016)

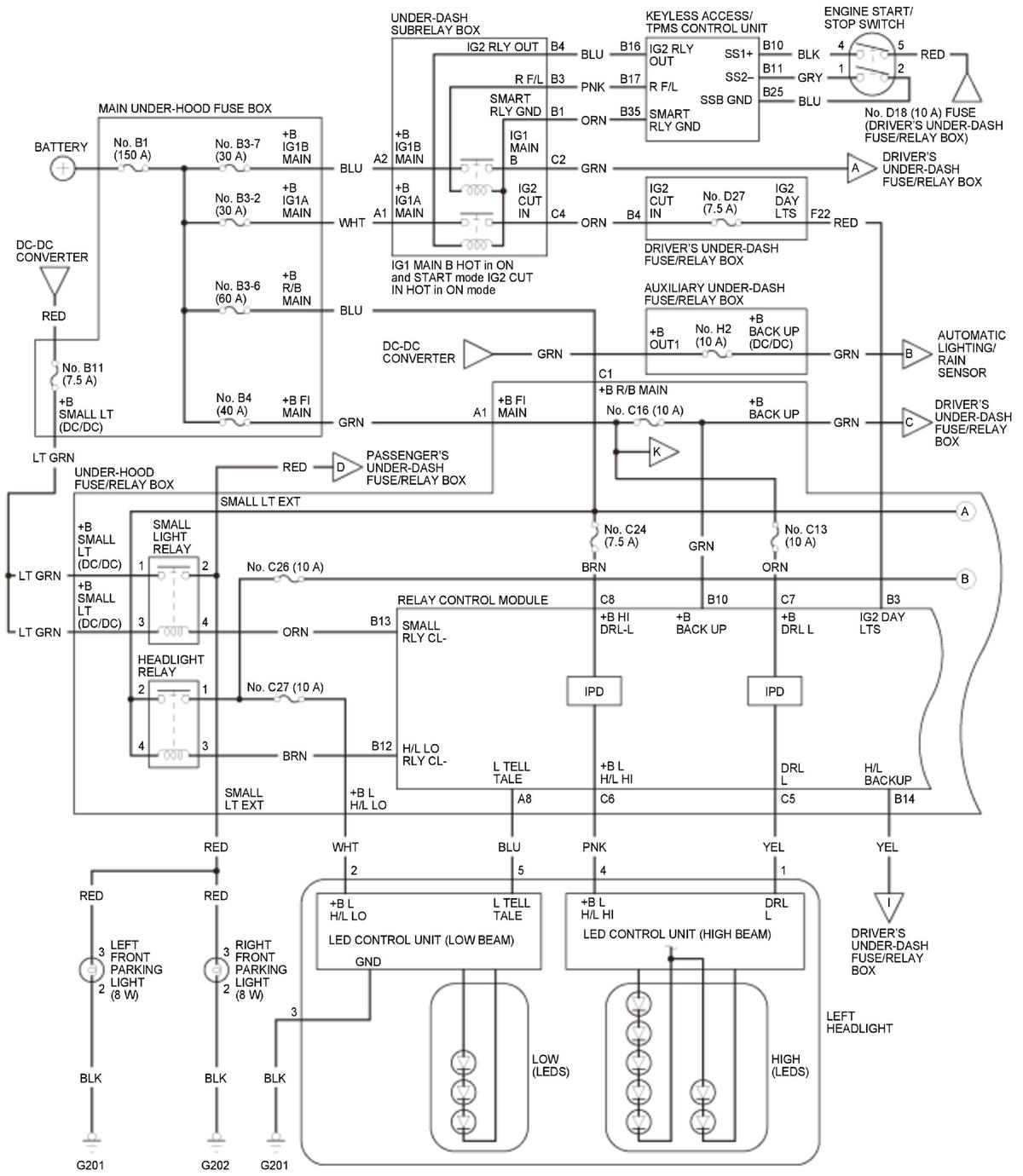

GHH320805Courtesy of HONDA, U.S.A., INC.

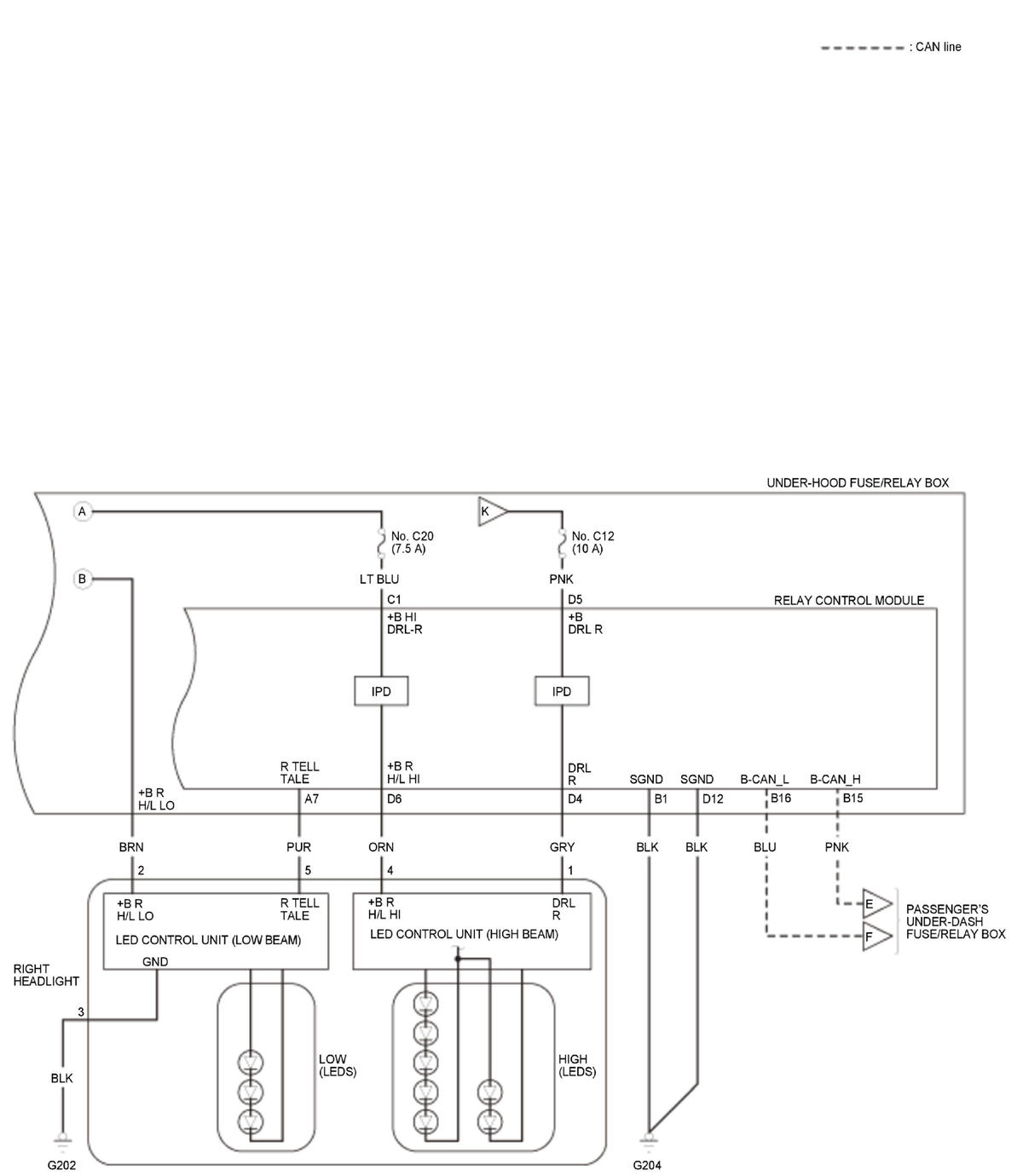

GHH320806Courtesy of HONDA, U.S.A., INC.

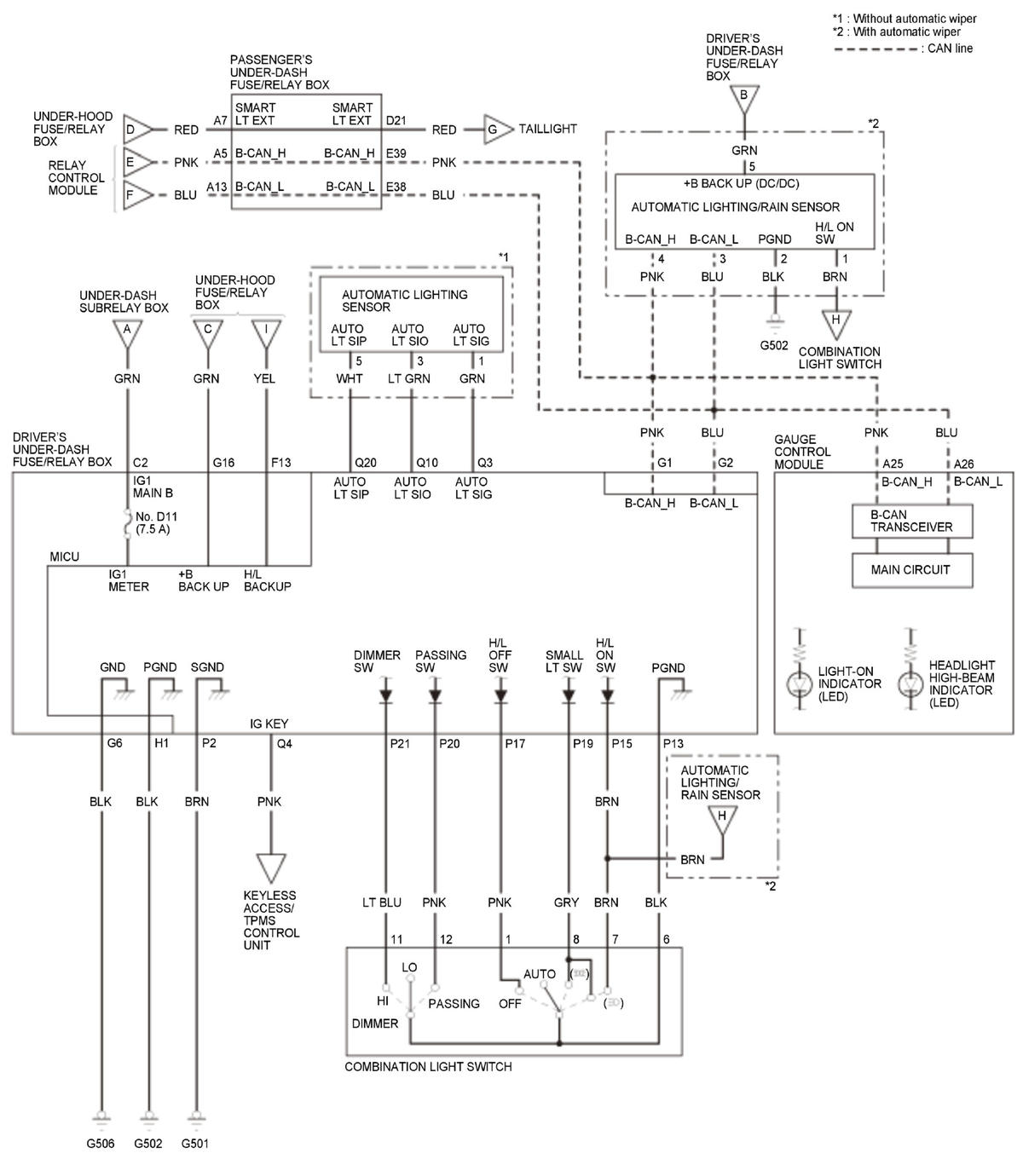

GHH320807Courtesy of HONDA, U.S.A., INC.

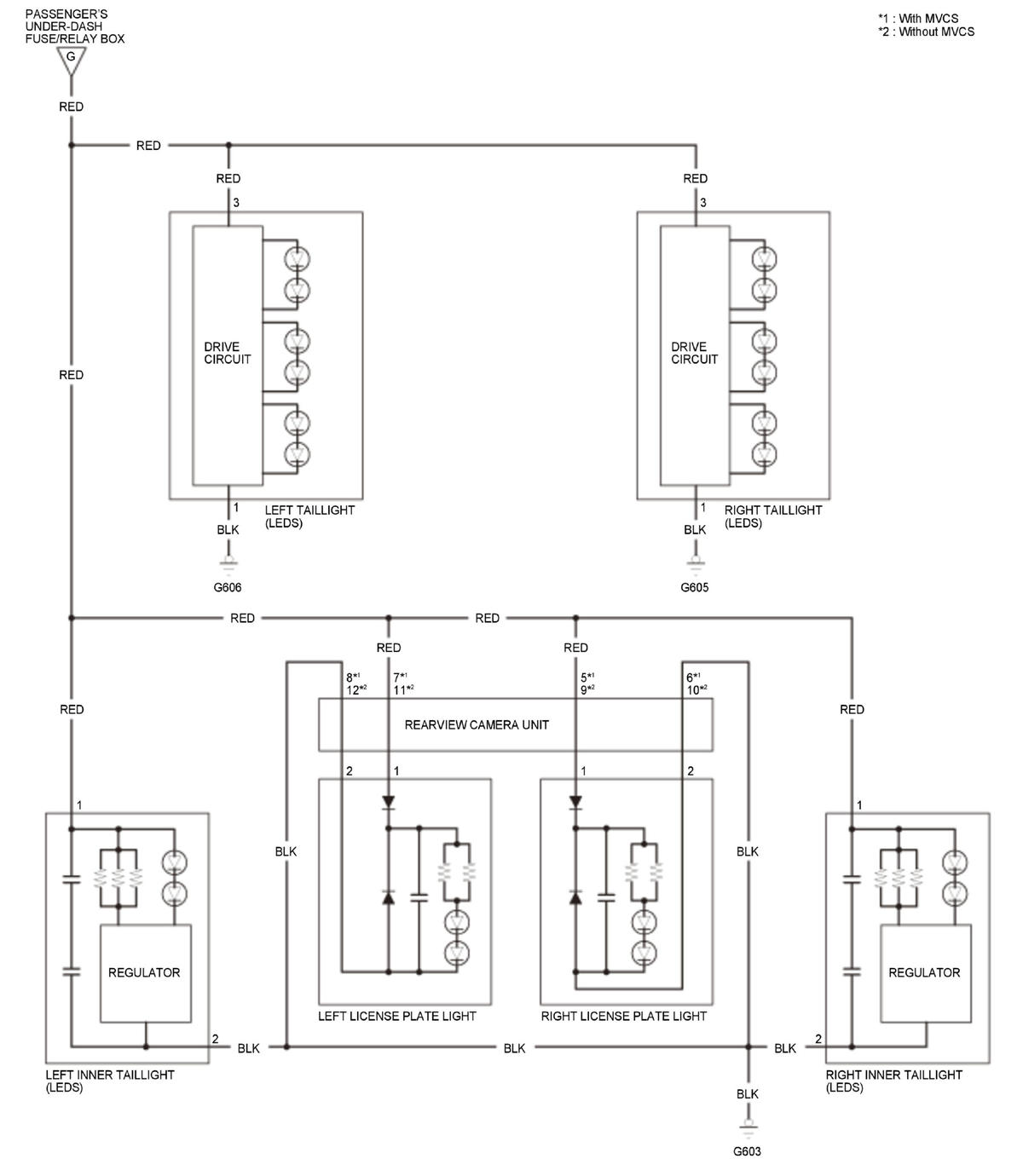

GHH320808Courtesy of HONDA, U.S.A., INC.
