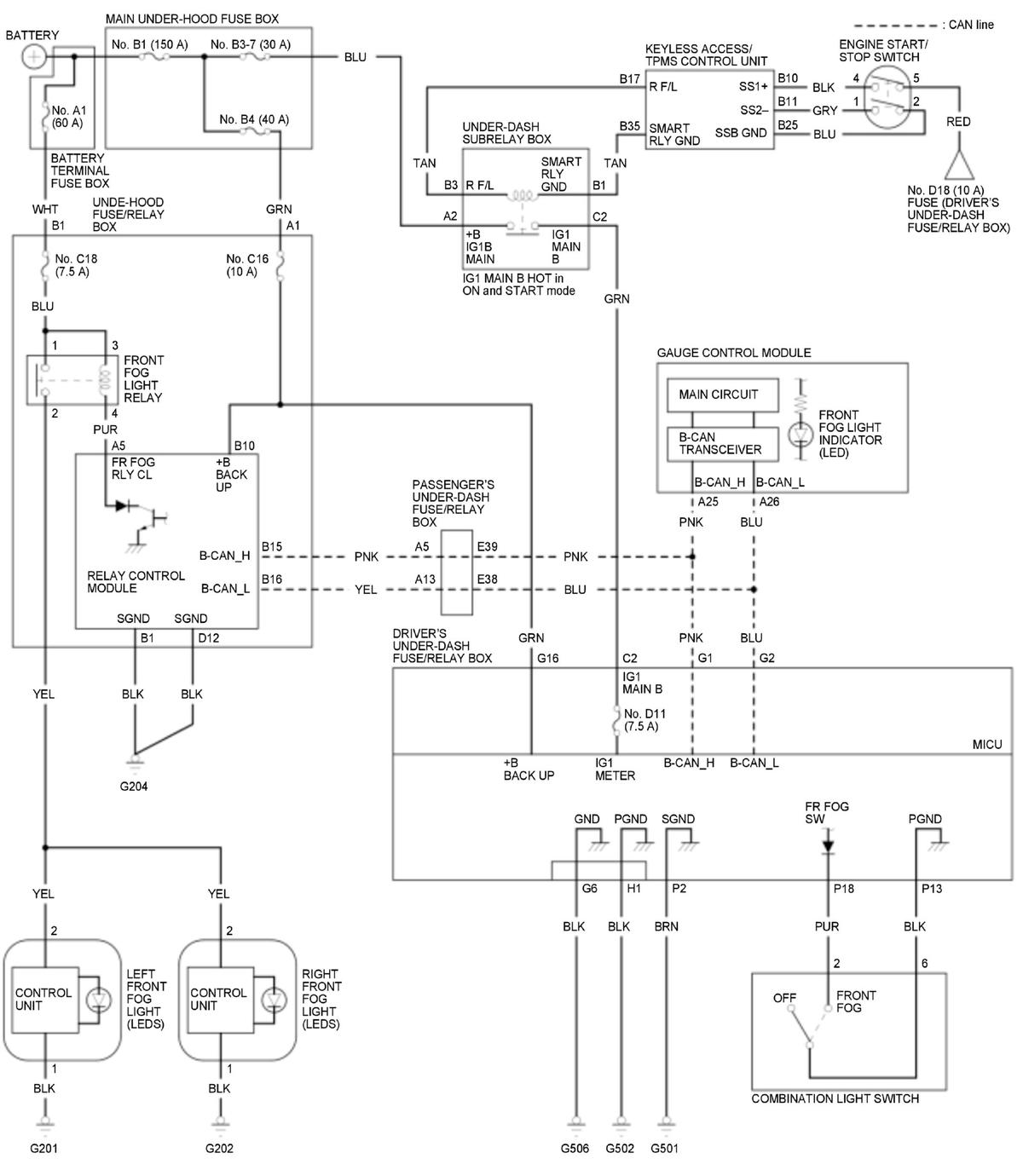

Exterior Lights Circuit Diagram (Front Fog Lights) (2017 2018 2019 2020)

GHH320811

Courtesy of HONDA, U.S.A., INC.
