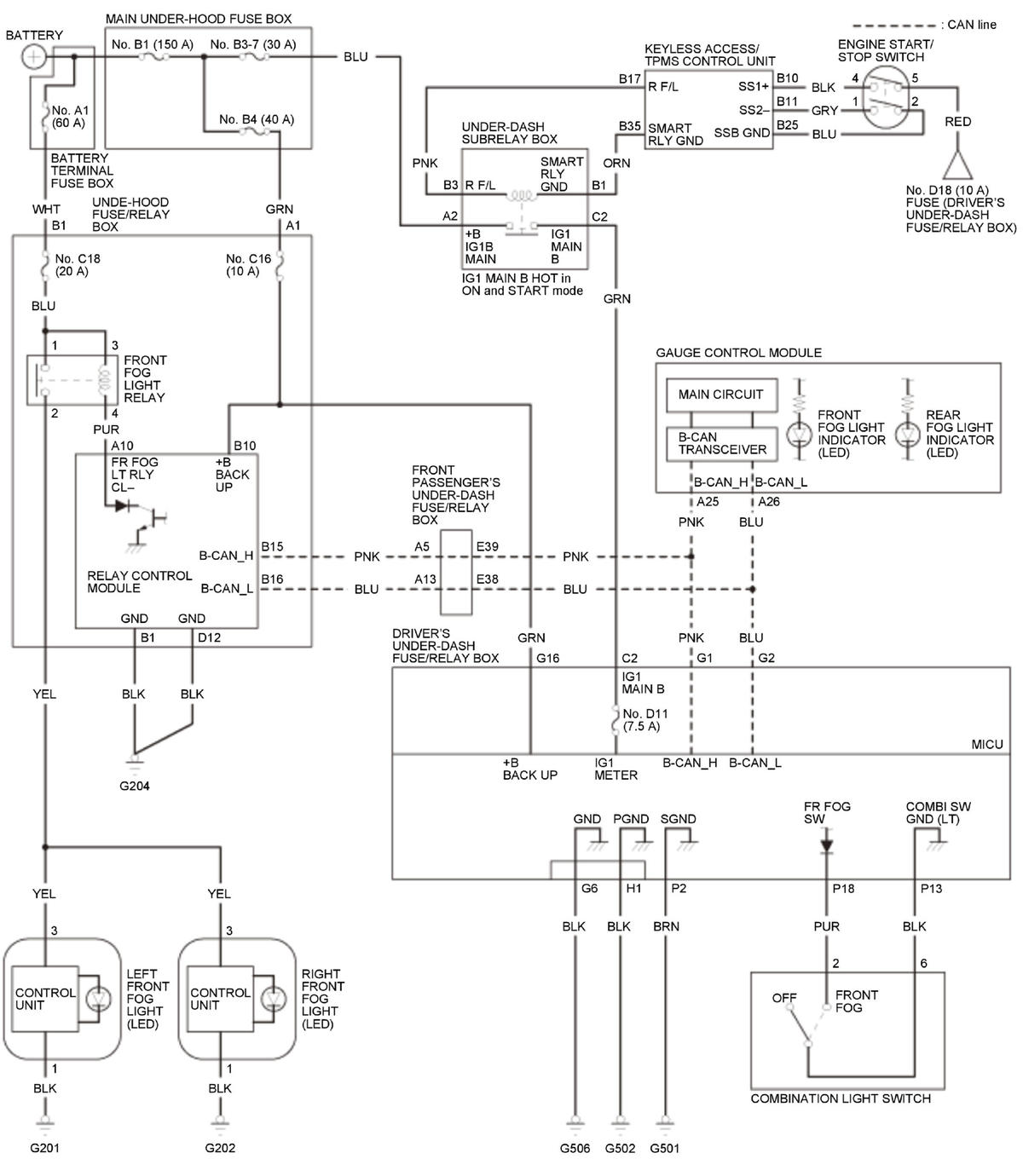

Exterior Lights Circuit Diagram (Front Fog Lights) (2016)

GHH320801

Courtesy of HONDA, U.S.A., INC.
