Exterior Lights Circuit Diagram (Brake Lights) (2014 2015)

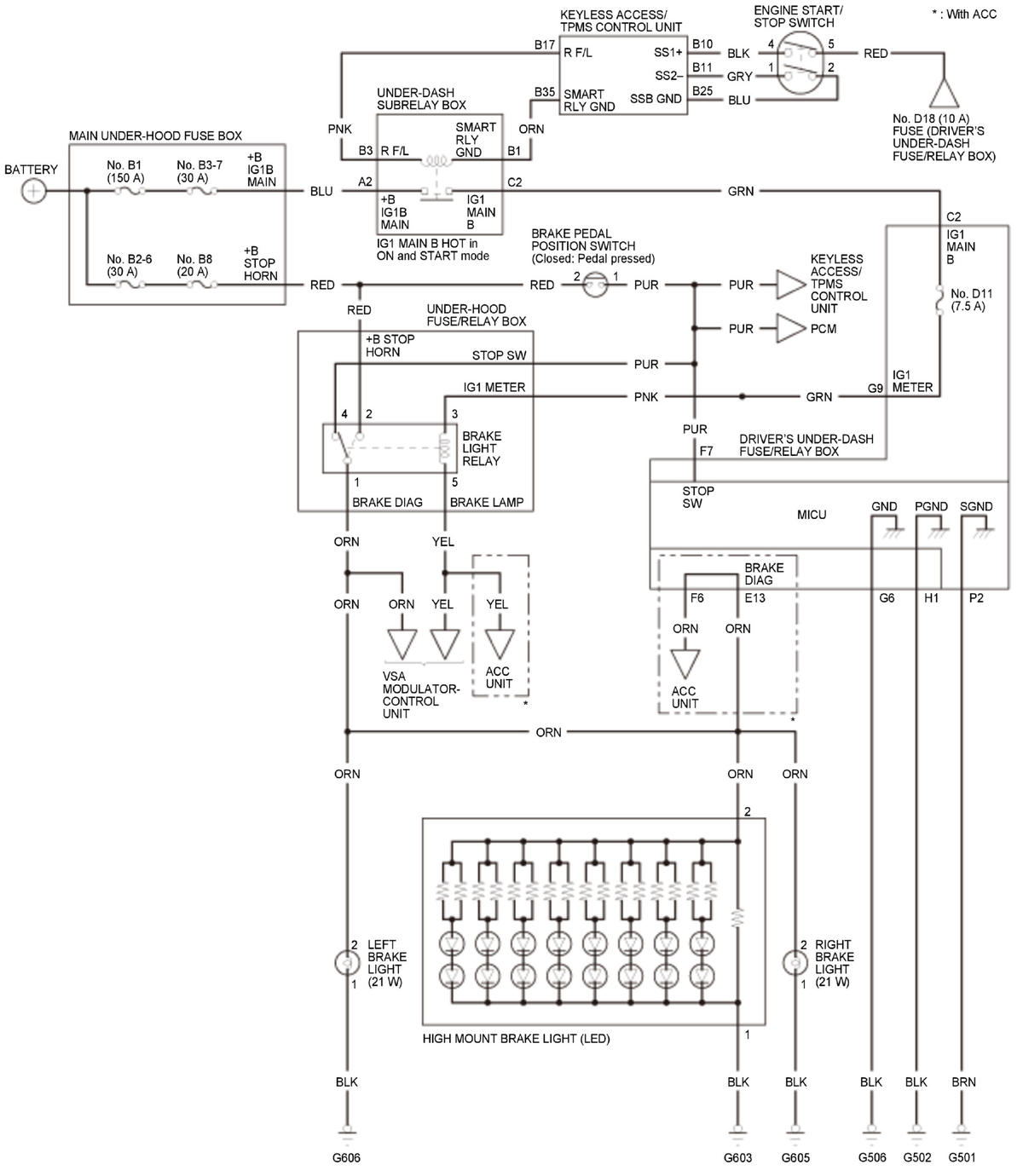

With SH-AWD

GHH320789

Courtesy of HONDA, U.S.A., INC.

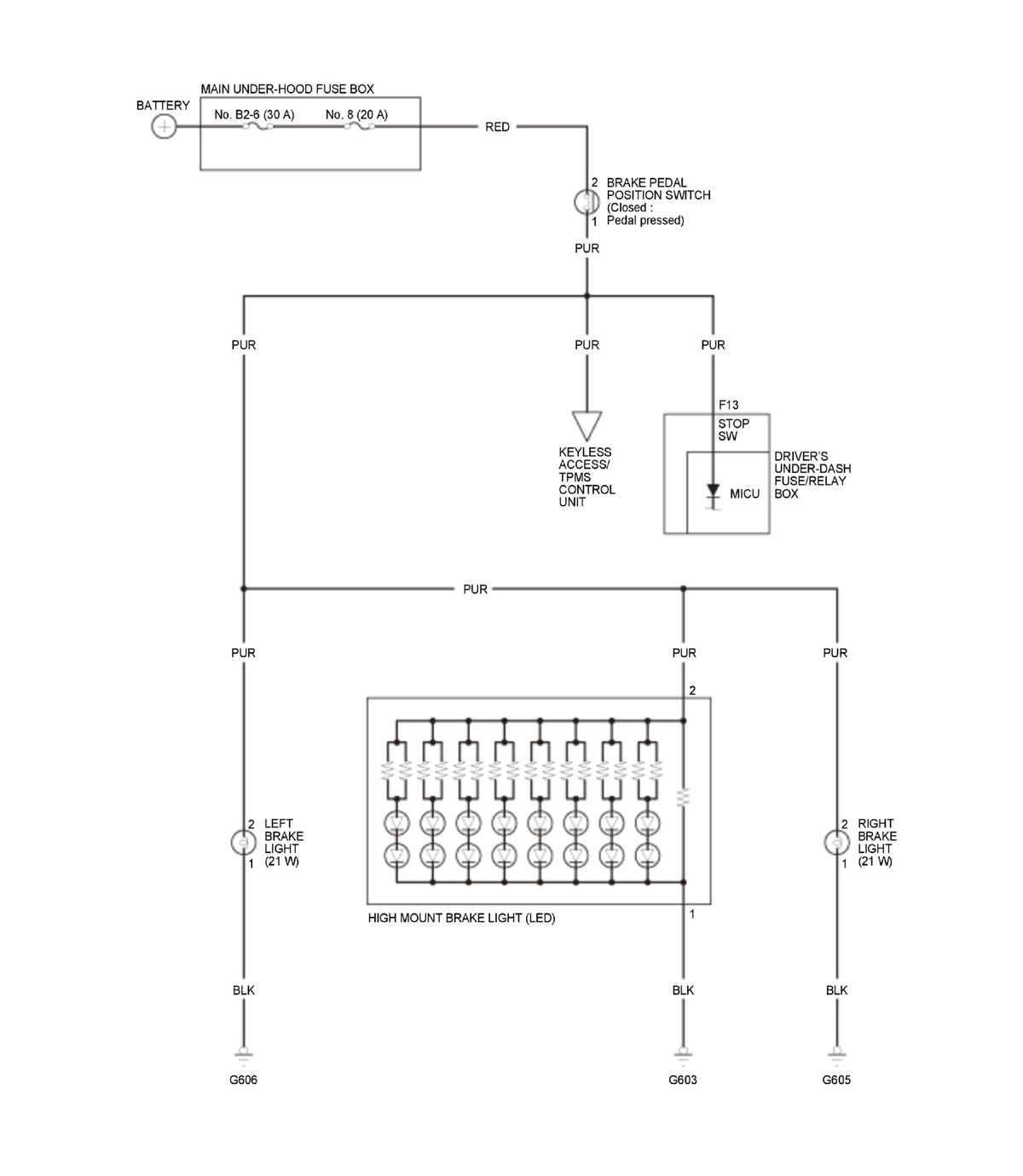

Without SH-AWD

GHH320790

Courtesy of HONDA, U.S.A., INC.
