Exterior Lighting - Service, Testing And Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

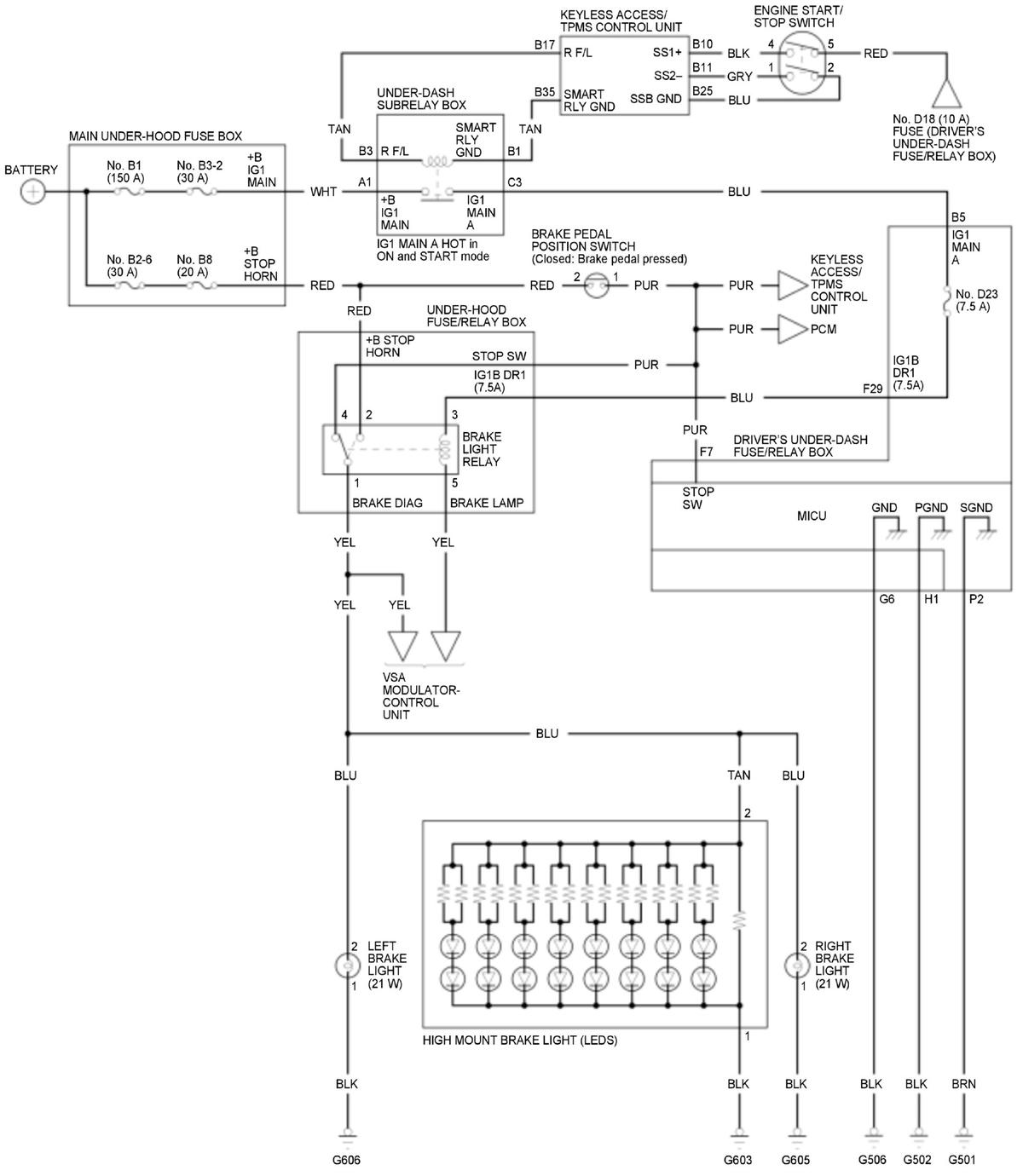

Exterior Lights Circuit Diagram (Brake Lights Without Auto Idle Stop System) (2017 2018 2019 2020)
Exterior Lights Circuit Diagram (Brake Lights Without Auto Idle Stop System) (2017 2018 2019 2020)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
