Exterior Lights Circuit Diagram (Brake Lights Without Auto Idle Stop System) (2016)

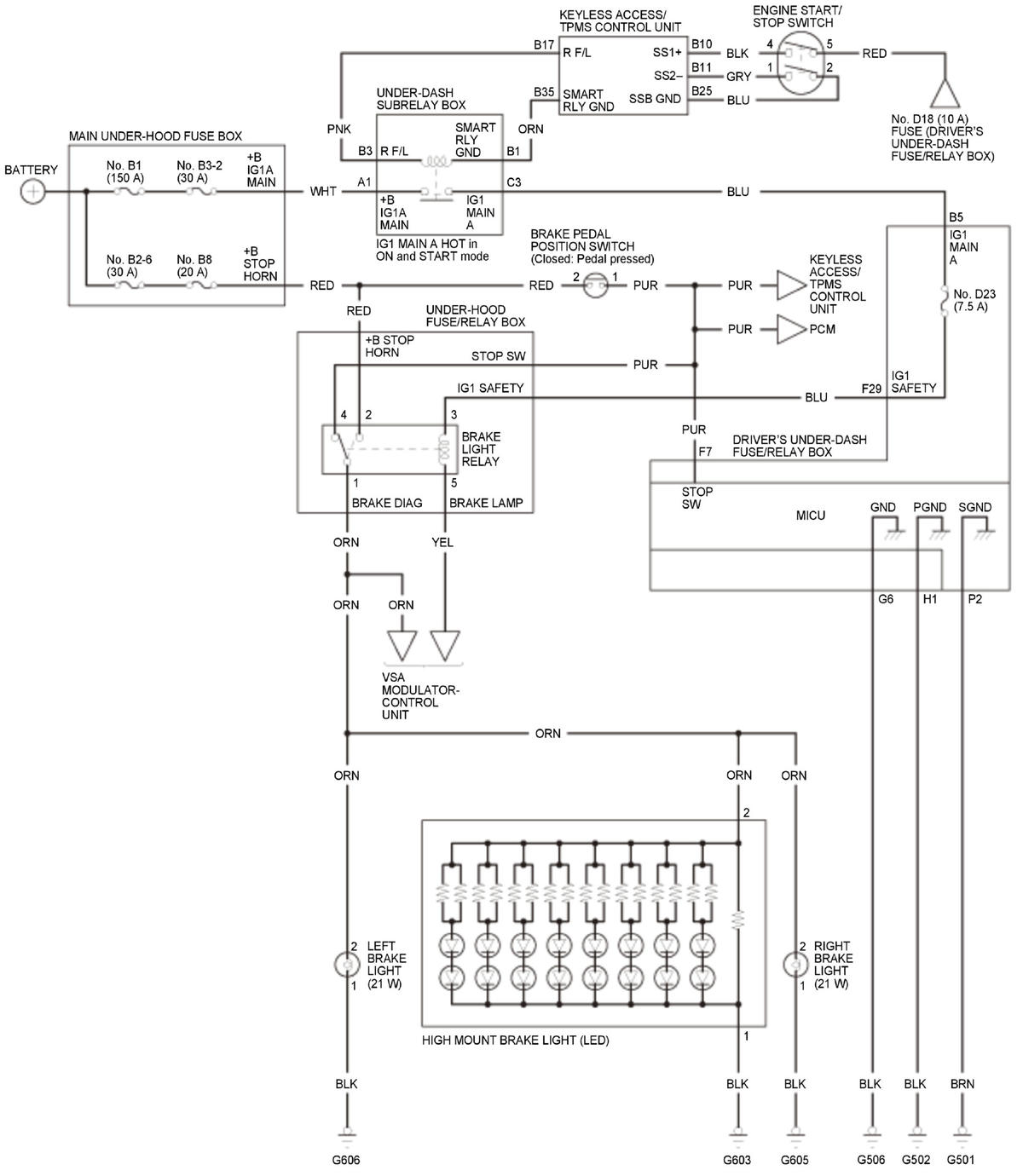

With SH-AWD

GHH320803

Courtesy of HONDA, U.S.A., INC.

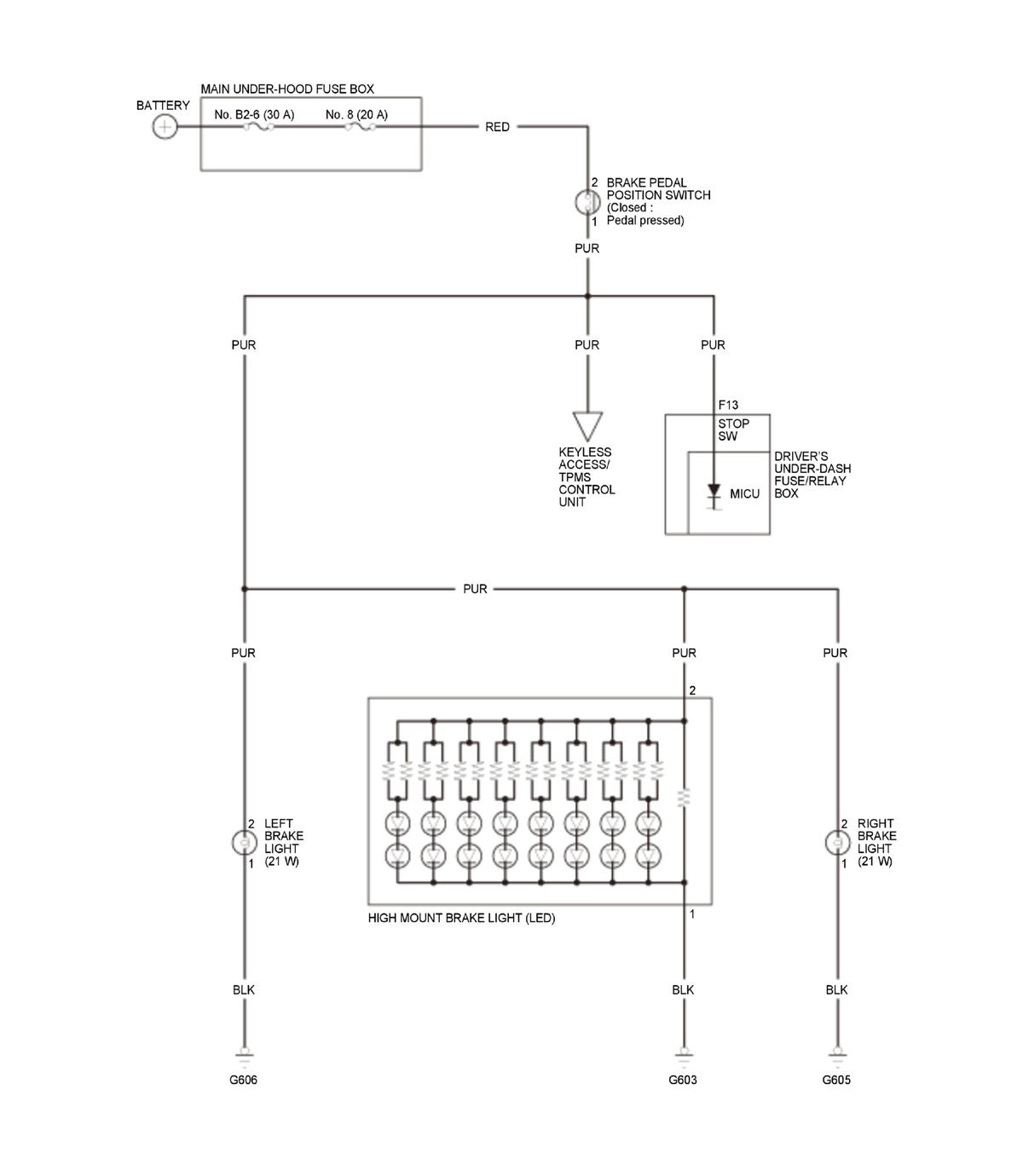

Without SH-AWD

GHH320804

Courtesy of HONDA, U.S.A., INC.
