Exterior Lighting - Service, Testing And Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

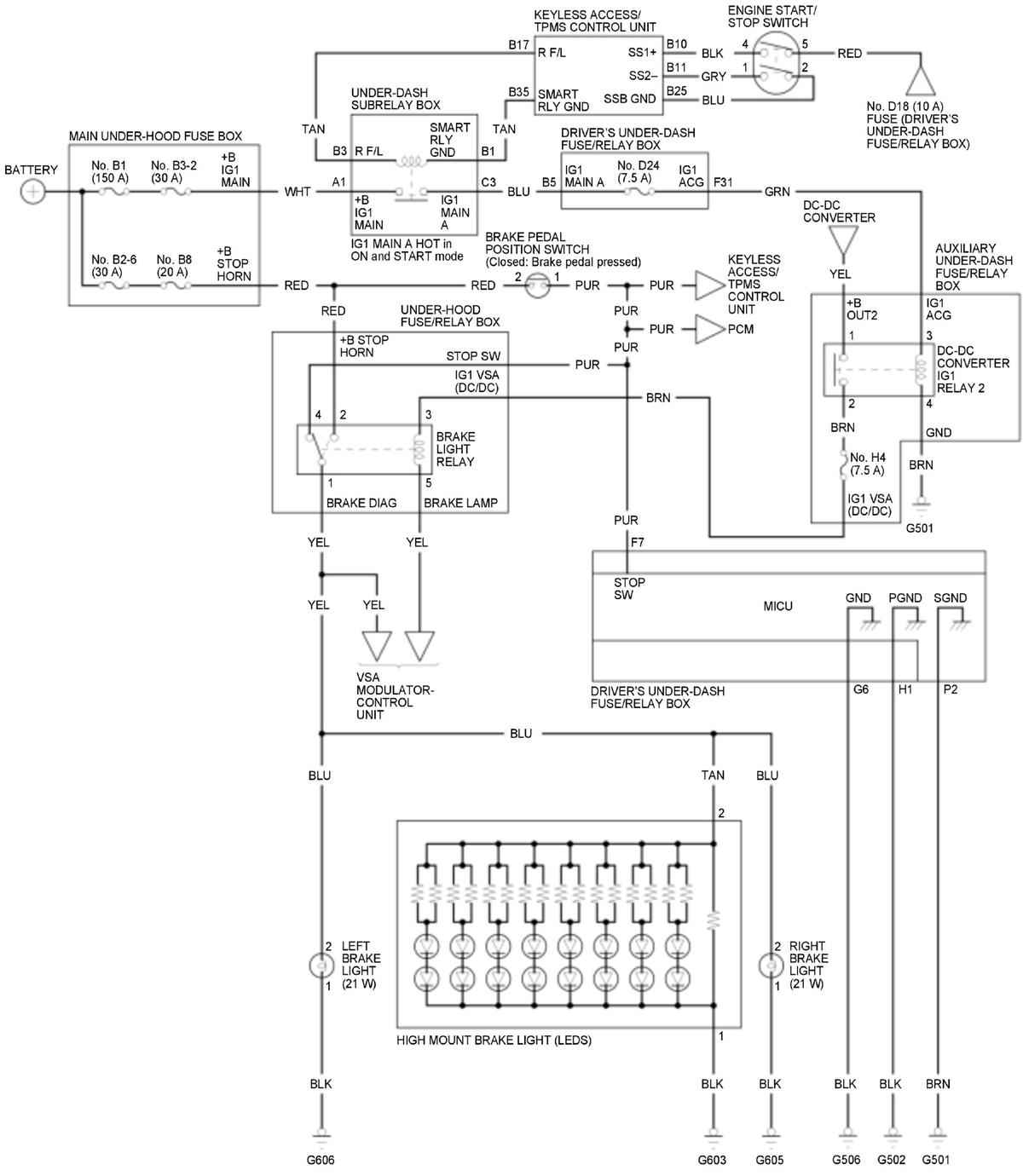

Exterior Lights Circuit Diagram (Brake Lights With Auto Idle Stop System) (2019 2020)
Exterior Lights Circuit Diagram (Brake Lights With Auto Idle Stop System) (2019 2020)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
