Exterior Lighting - Service, Testing And Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

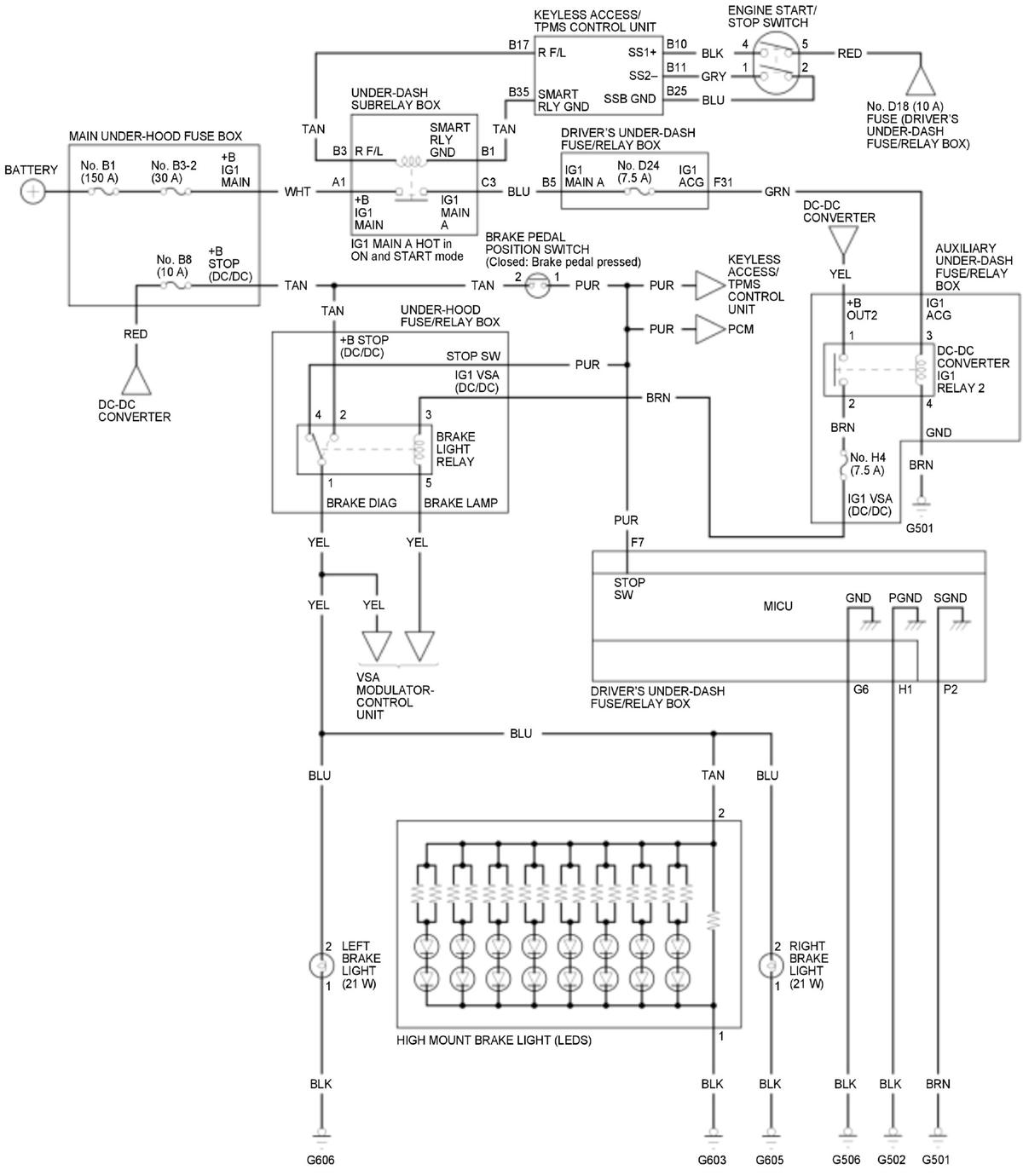

Exterior Lights Circuit Diagram (Brake Lights With Auto Idle Stop System) (2017 2018)
Exterior Lights Circuit Diagram (Brake Lights With Auto Idle Stop System) (2017 2018)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
