Acura
>>
2014
>>
MDX SH-AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Exterior Lights
>>
Exterior Lighting - Service, Testing And Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

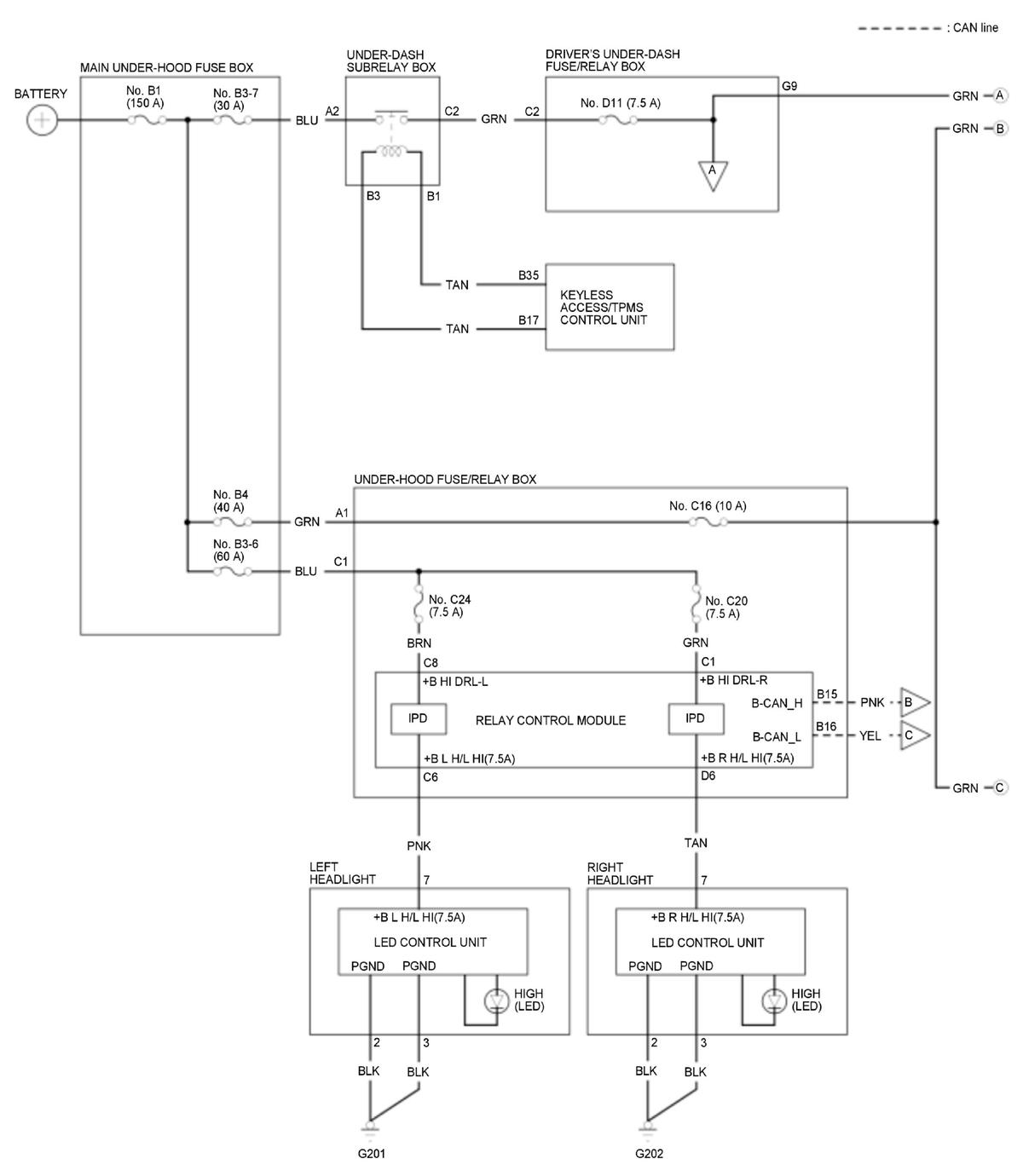

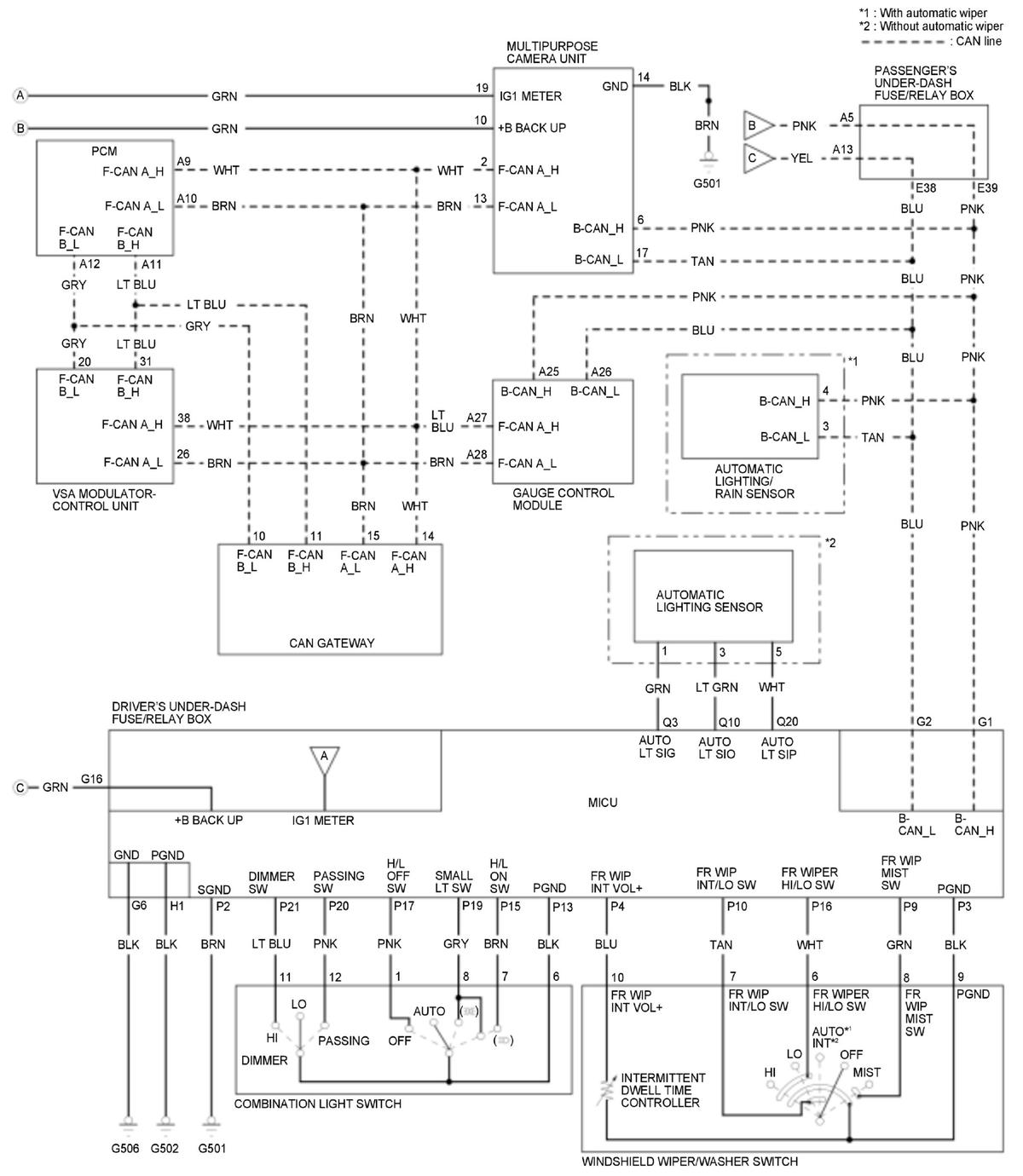

Auto High-Beam (High-Beam Support System) Circuit Diagram (Without Auto Idle Stop System) (2017 2018)
Auto High-Beam (High-Beam Support System) Circuit Diagram (Without Auto Idle Stop System) (2017 2018)
Without Auto Idle Stop System
Courtesy of HONDA, U.S.A., INC.
Without Auto Idle Stop System
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
