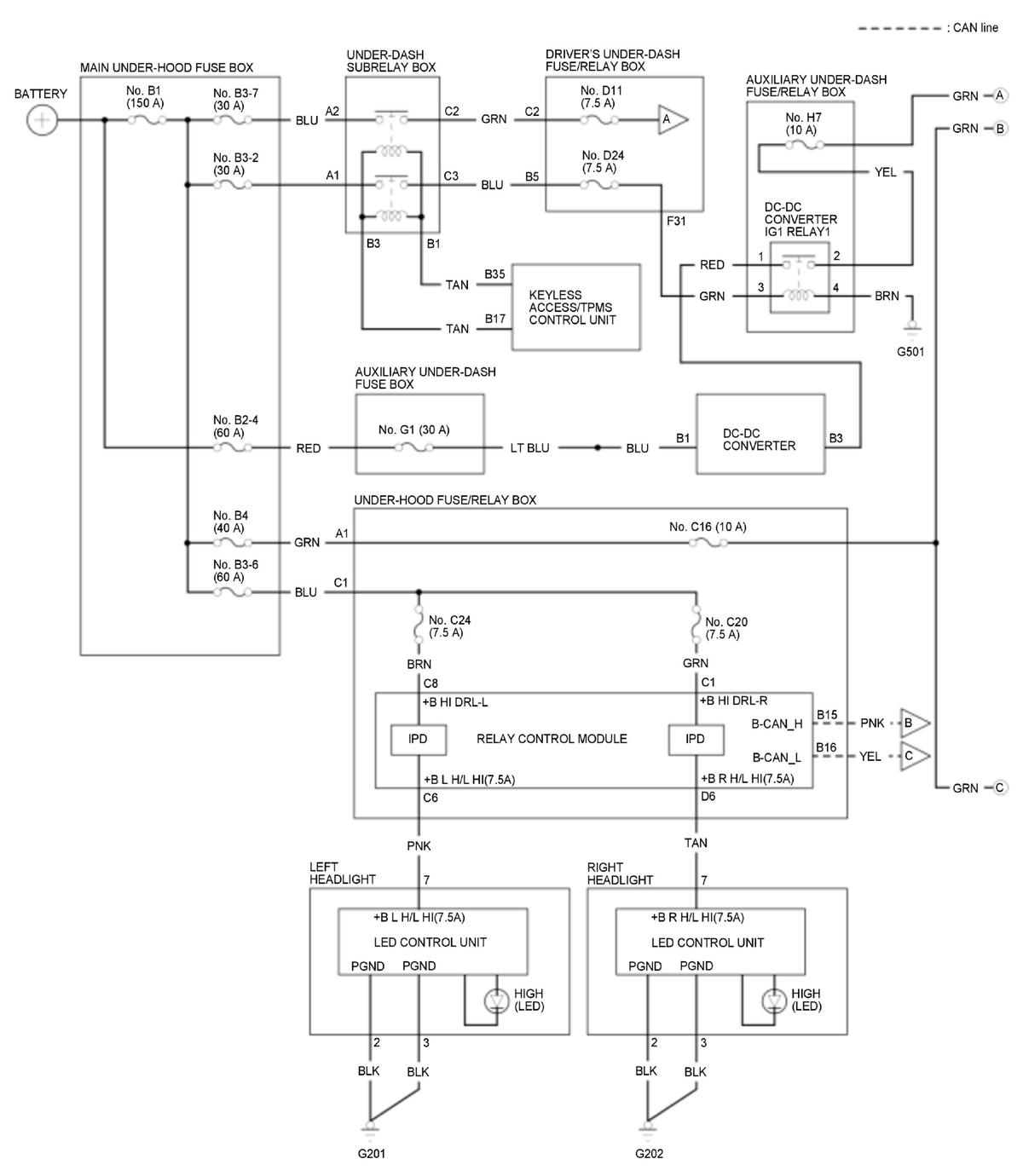

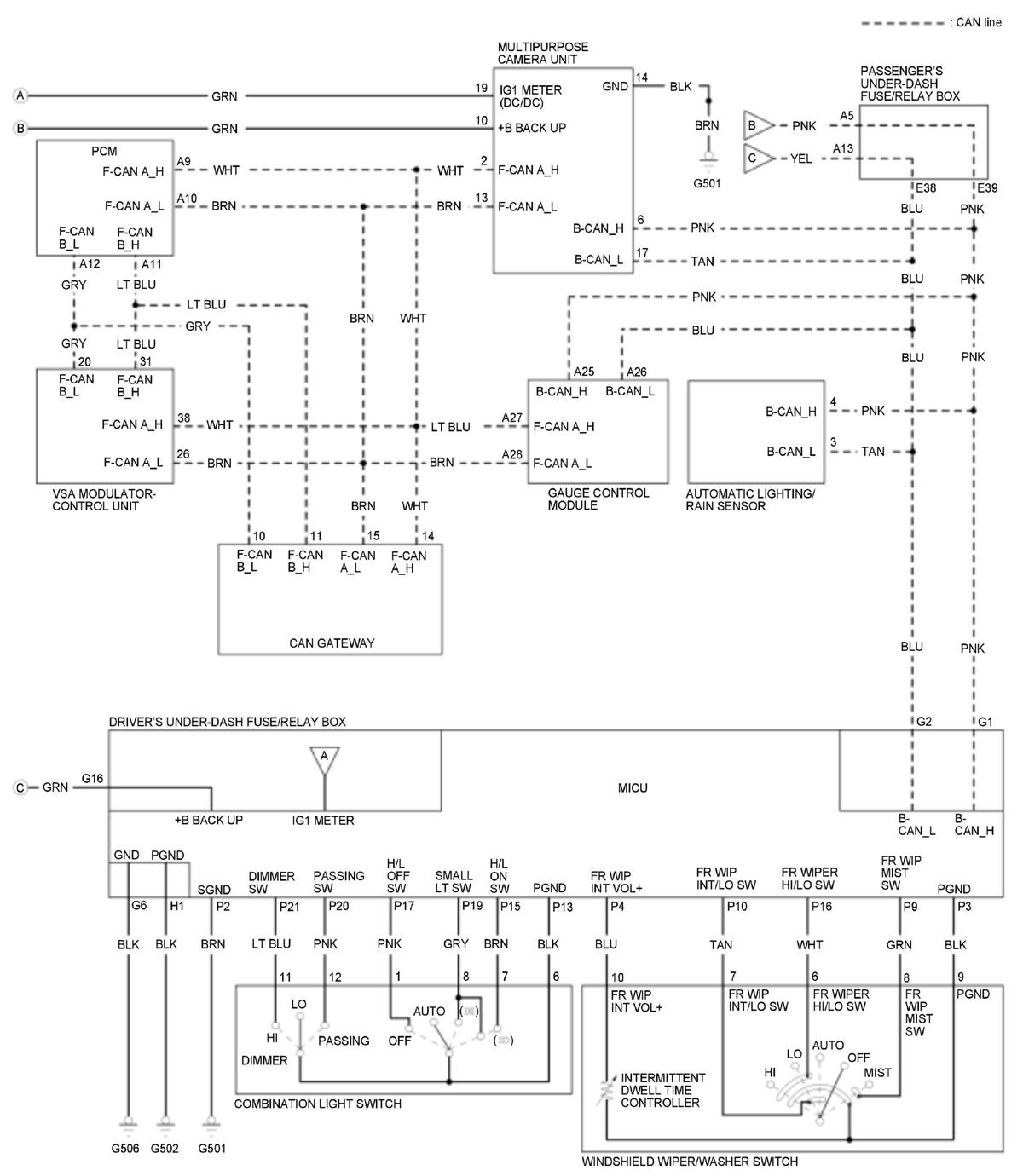

Auto High-Beam (High-Beam Support System) Circuit Diagram (With Auto Idle Stop System) (2017 2018)
Auto High-Beam (High-Beam Support System) Circuit Diagram (With Auto Idle Stop System) (2017 2018)
With Auto Idle Stop System
Courtesy of HONDA, U.S.A., INC.
With Auto Idle Stop System
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
