DTC U0151-00 (E-Pretensioner Unit) (2014 2015)

DTC U0151-00  : Lost Communication With the SRS Unit

NOTE:

• Before doing this troubleshooting procedure, review General Troubleshooting Information .
• Before replacing the SRS unit, check the SRS unit software version with the HDS. If the software version is not the latest, update the SRS unit software , and retest.
• Before replacing the E-pretensioner unit, check the E-pretensioner unit software version with the HDS. If the software version is not the latest, update the E-pretensioner unit software , and retest.
• When you troubleshoot the E-pretensioner unit, check the indicated side of E-pretensioner unit on the HDS.

DTC (E-pretensioner)

1. Problem verification

   - 1. Clear the DTCs with the HDS.

   - 2. Turn the vehicle to the ON mode.

   - 3. Check for DTCs with the HDS.

   DTC Description	DTC
   U0151-00 Lost Communication With the SRS Unit

   DTC Description	DTC
   U0151-00 Lost Communication With the SRS Unit

   Is DTC U0151-00 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time.

2. Open wire check (F-CAN_H line)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connectors.

   Driver's E-pretensioner unit 16P connector

   Front passenger's E-pretensioner unit 14P connector

   SRS unit connector A (39P) - Refer to: SRS Unit Removal and Installation (2014 2015 2016)

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Driver's E-pretensioner unit 16P connector: disconnected
   	Front passenger's E-pretensioner unit 14P connector: disconnected
   	SRS unit connector A (39P): disconnected
   Test circuit	F-CAN_H

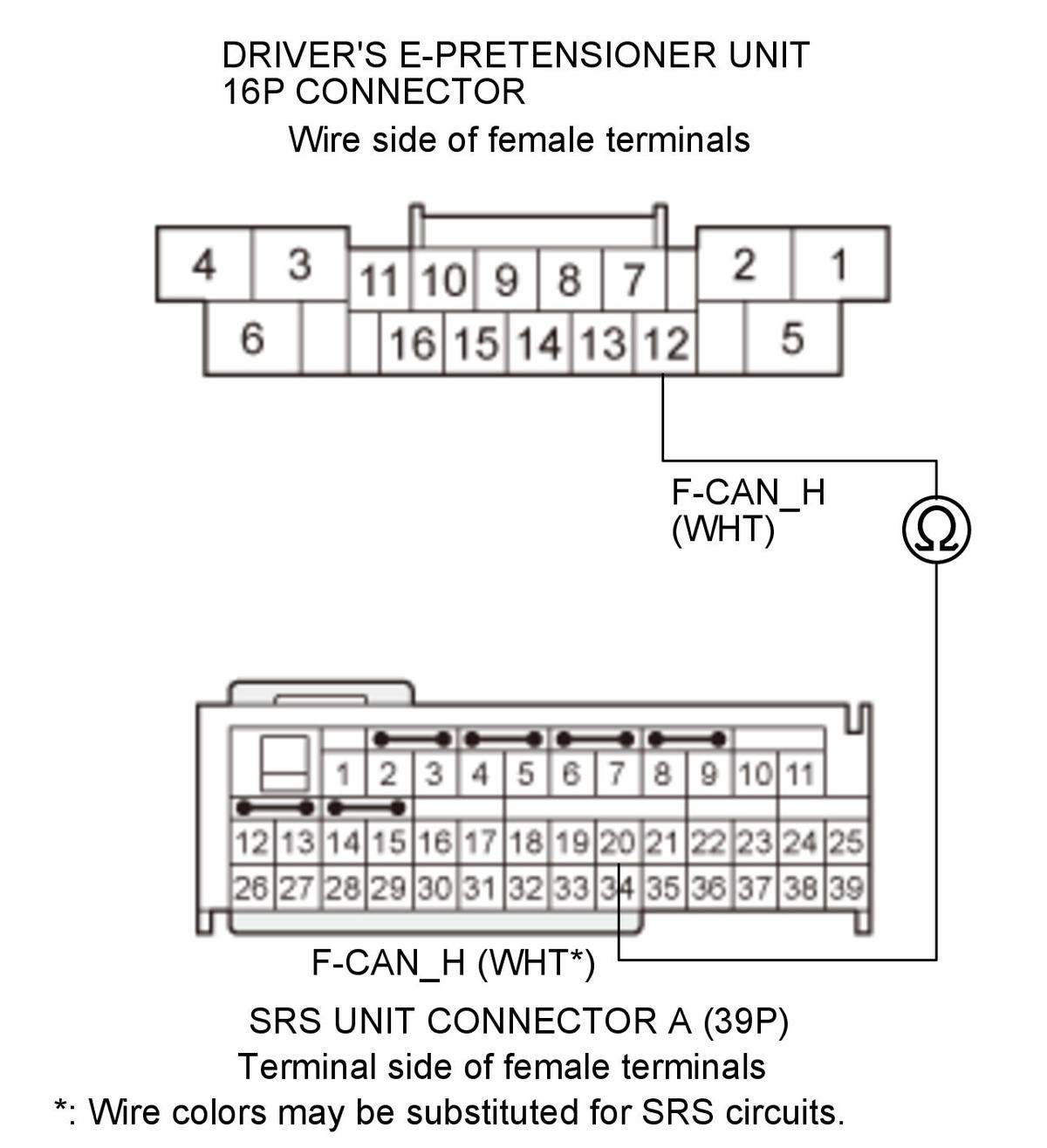

   Test point 1 *1	Driver's E-pretensioner unit 16P connector No. 12 (WHT)
   Test point 2 *1	SRS unit connector A (39P) No. 20 (WHT*)

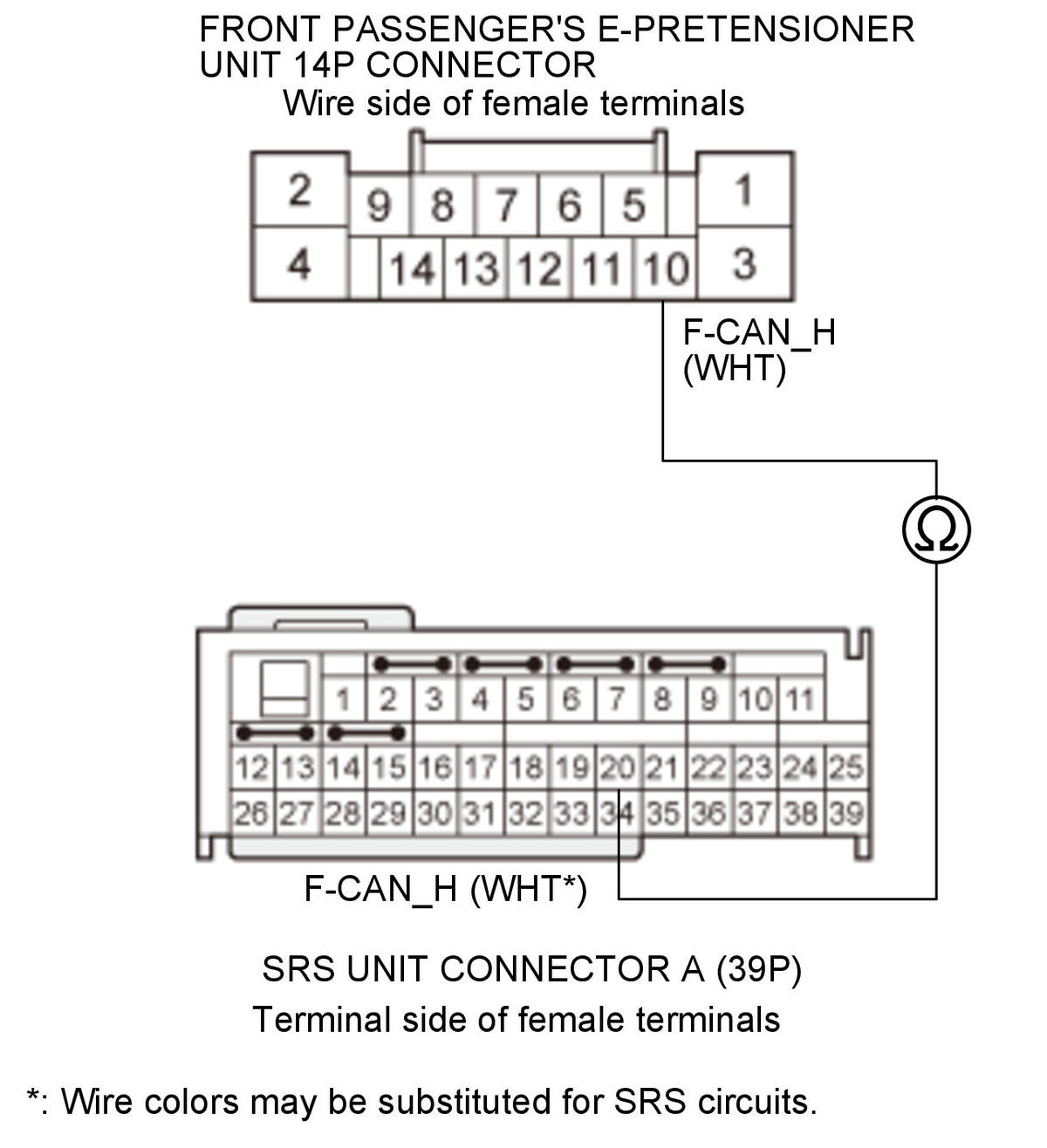

   Test point 1 *2	Front passenger's E-pretensioner unit 14P connector No. 10 (WHT)
   Test point 2 *2	SRS unit connector A (39P) No. 20 (WHT*)
   *1: Driver's E-pretensioner unit
   *2: Front passenger's E-pretensioner unit

   Driver's E-pretensioner unit

   Courtesy of HONDA, U.S.A., INC.

   Front passenger's E-pretensioner unit

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 3.

   NO

   Repair an open in the wire between the driver's E-pretensioner unit or the front passenger's E-pretensioner unit, and the SRS unit.

3. Open wire check (F-CAN_L line)

   - 1. Check for continuity between test points 1 and 2.

   Test condition	Driver's E-pretensioner unit 16P connector: disconnected
   	Front passenger's E-pretensioner unit 14P connector: disconnected
   	SRS unit connector A (39P): disconnected
   Test circuit	F-CAN_L

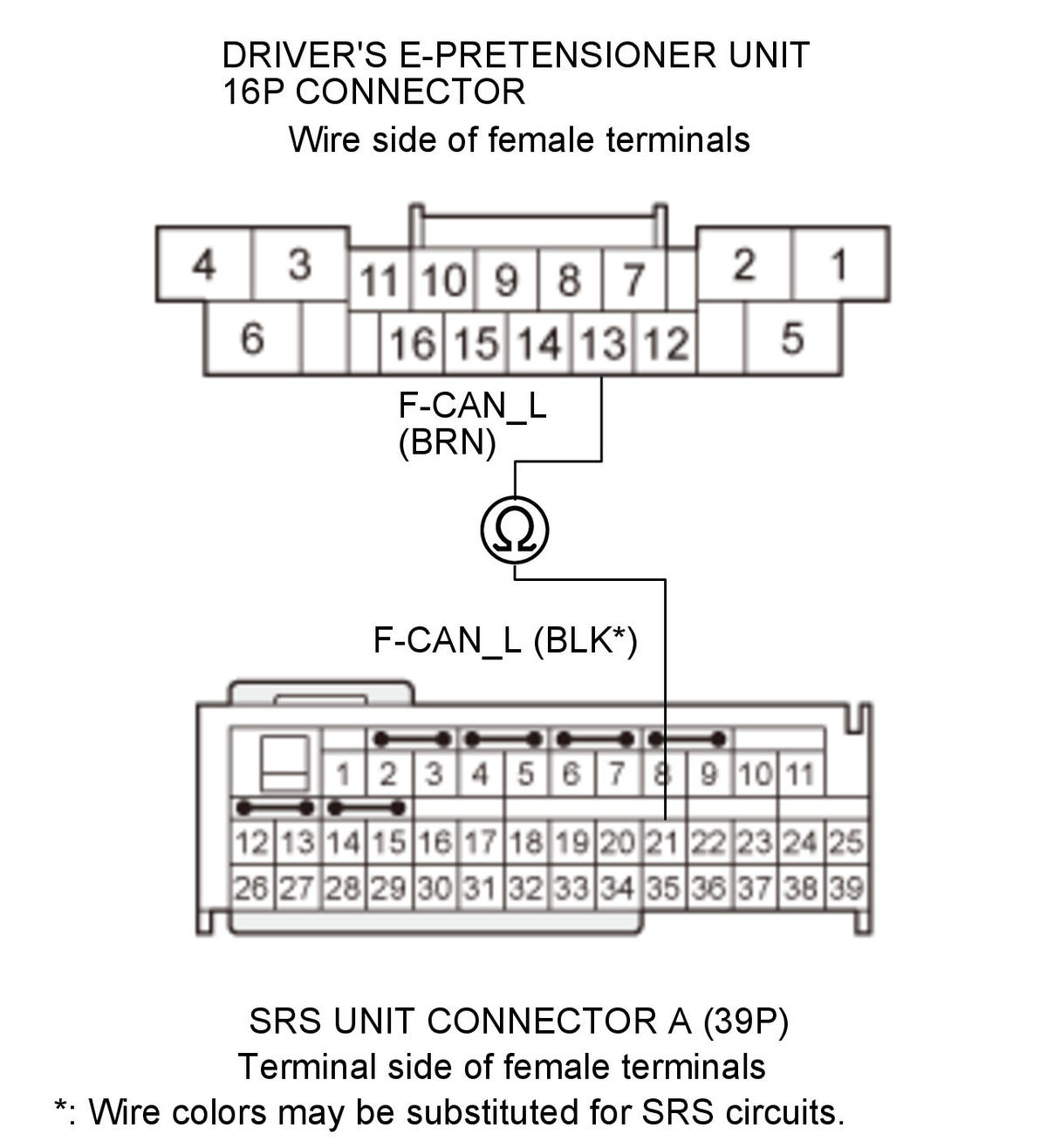

   Test point 1 *1	Driver's E-pretensioner unit 16P connector No. 13 (BRN)
   Test point 2 *1	SRS unit connector A (39P) No. 21 (BLK*)

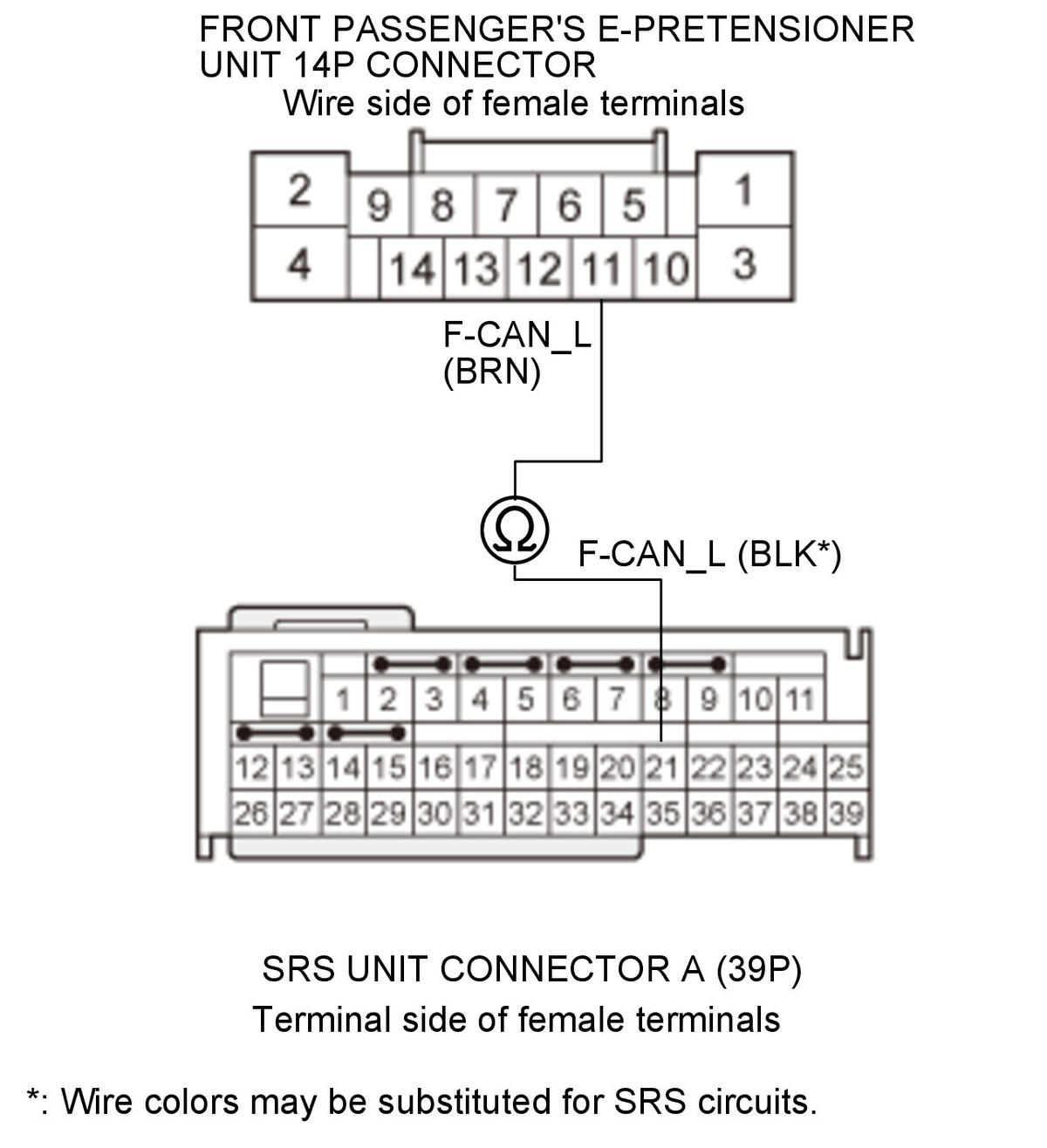

   Test point 1 *2	Front passenger's E-pretensioner unit 14P connector No. 11 (BRN)
   Test point 2 *2	SRS unit connector A (39P) No. 21 (BLK*)
   *1: Driver's E-pretensioner unit
   *2: Front passenger's E-pretensioner unit

   Driver's E-pretensioner unit

   Courtesy of HONDA, U.S.A., INC.

   Front passenger's E-pretensioner unit

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The F-CAN_L wire is OK. Replace the SRS unit - Refer to: SRS Unit Removal and Installation (2014 2015 2016) .

   NO

   Repair an open in the wire between the driver's E-pretensioner unit or the front passenger's E-pretensioner unit, and the SRS unit.
