'12 Model

NOTE:

Take care not to scratch the dashboard or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

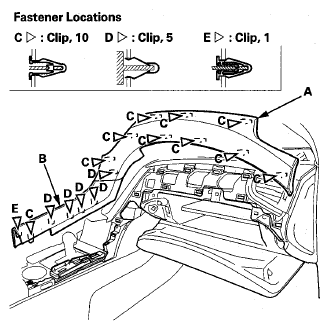

Pry up the edge of the passenger's dashboard trim (A) and the passenger's leather trim (B) to detach the clips (C, D, E), and remove them as an assembly.

Fig 1: Identifying Passenger's Dashboard Trim, Passenger's Leather Trim And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws, then remove the passenger's dashboard trim (A) from the passenger's leather trim (B).

Fig 2: Identifying Passenger's Dashboard Trim, Passenger's Leather Trim And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
