Select/Reset/Information Switch Test/Replacement

  1. Remove the steering wheel (see STEERING WHEEL REMOVAL ).
  2. Remove the paddle shifter (+) (upshift switch) (see PADDLE SHIFTER REPLACEMENT ).
  3. Disconnect the 12P connector (A) from the select/reset/information switch (B).

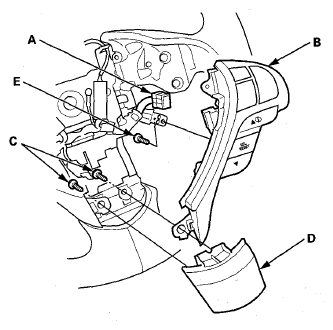

    Fig 1: Identifying 12P Connector, Select/Reset/Information Switch, Screws And Center Trim
    G08086943Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the two screws (C), then pull out the center trim (D) from the steering wheel.
  5. Remove the screw (E), then pull the select/reset/information switch from the steering wheel.
  6. Measure the resistance between select/reset/information switch 12P connector terminals No. 1 [No. 4] and No. 11 in each switch position according to the table.

    []: Without ACC

    With ACC

    Fig 2: Identifying Select/Reset/Information Switch 12P Connector Terminals - With ACC
    G08086944Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Without ACC

    Fig 3: Identifying Select/Reset/Information Switch 12P Connector Terminals - Without ACC
    G08086945Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Position Resistance
    ↑ About 1, 043 Ω
    SEL/RESET About 33 Ω
    ↓ About 363 Ω
  7. If the resistance is not as specified, replace the switch.
  8. If the switch is OK, but there is a problem with the switch function, check the cable reel subharness and cable reel.
