Component Location Index

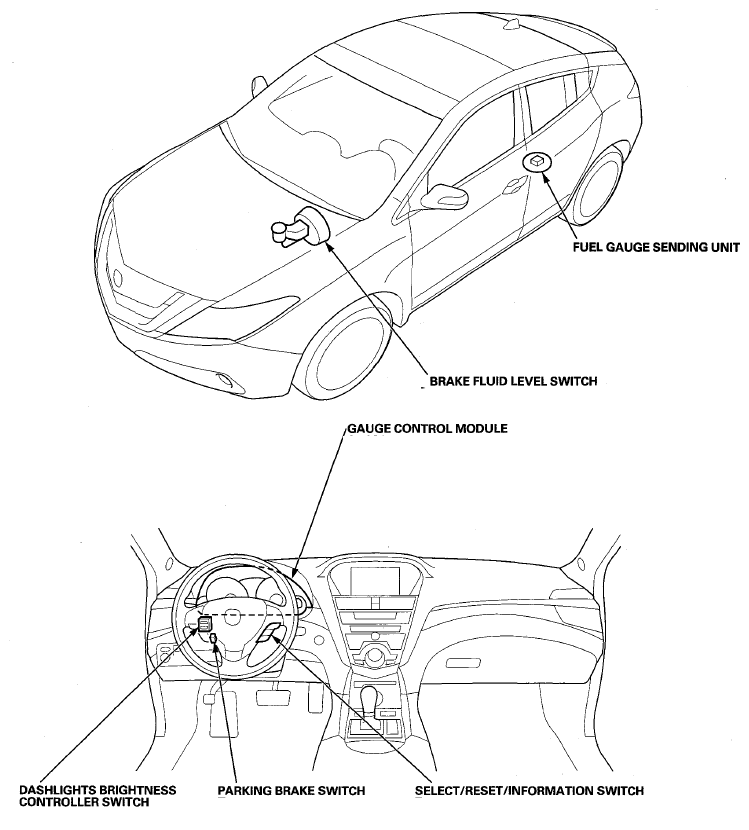

Fig 1: Identifying Gauges Components Location (1 Of 2)
G08086886Courtesy of AMERICAN HONDA MOTOR CO., INC.

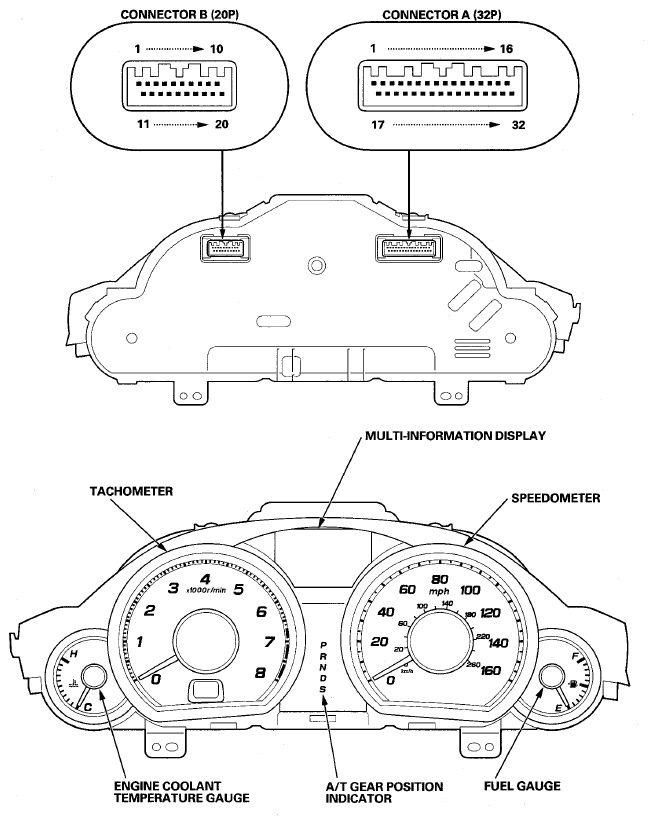

Fig 2: Identifying Gauges Components Location (2 Of 2)
G08086887Courtesy of AMERICAN HONDA MOTOR CO., INC.
