Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Crankshaft Main Bearing >> Tightening Specifications

Tightening Specifications

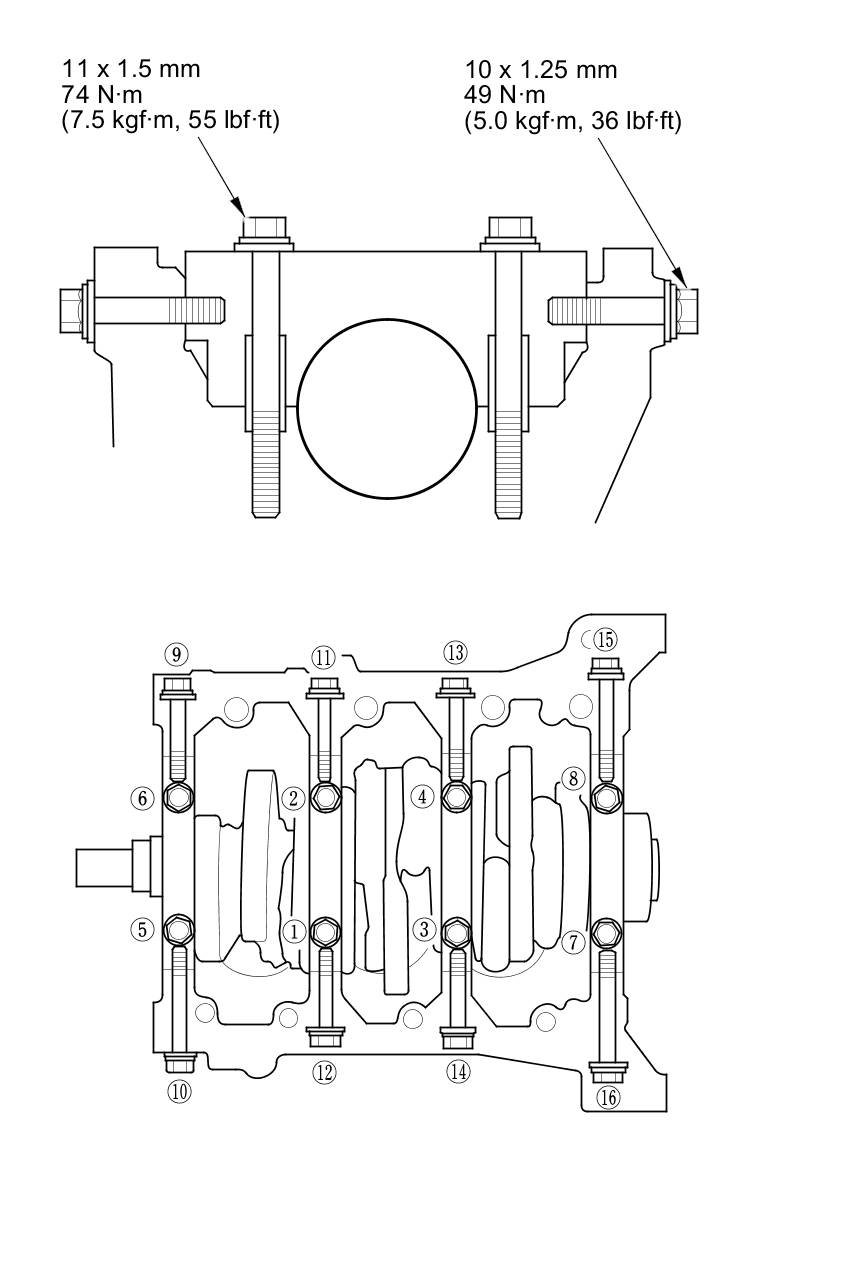

Crankshaft Main Bearing Bolts





Tighten the main bearing cap bolts, then tighten the main bearing cap side bolts to the specified torque in the sequence as shown. Repeat the torque sequence again to ensure the bolts are properly torqued.
