Home
>>
Acura
>>
2012
>>
ZDX V6-3.7L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>

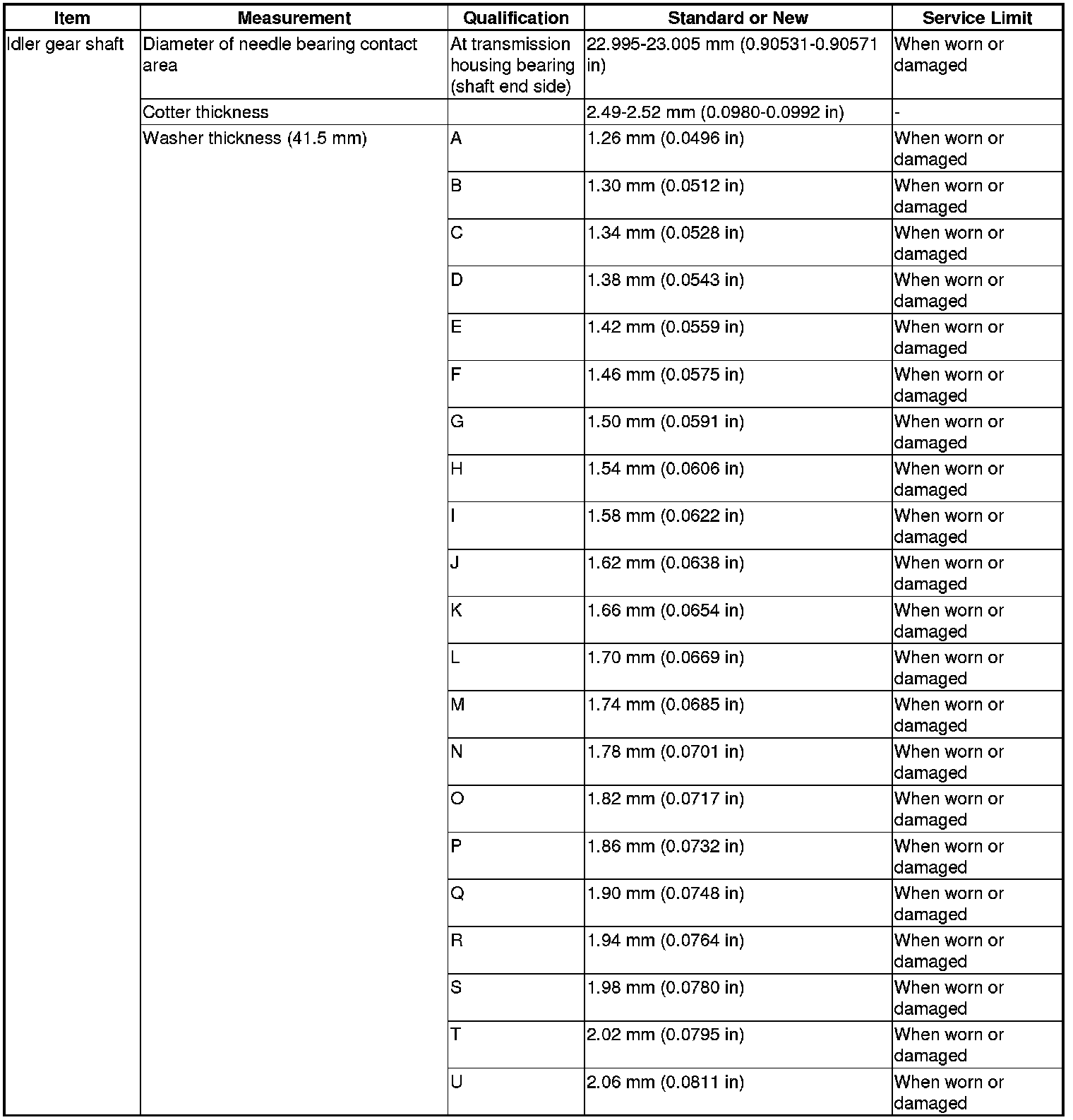

Idler Gear Shaft Specification(s)
Idler Gear Shaft Specification(s)
Idler gear shaft
Idler gear shaft
