Power Tailgate Inside Switch Test/Replacement

Power Tailgate Inside Switch Test/Replacement

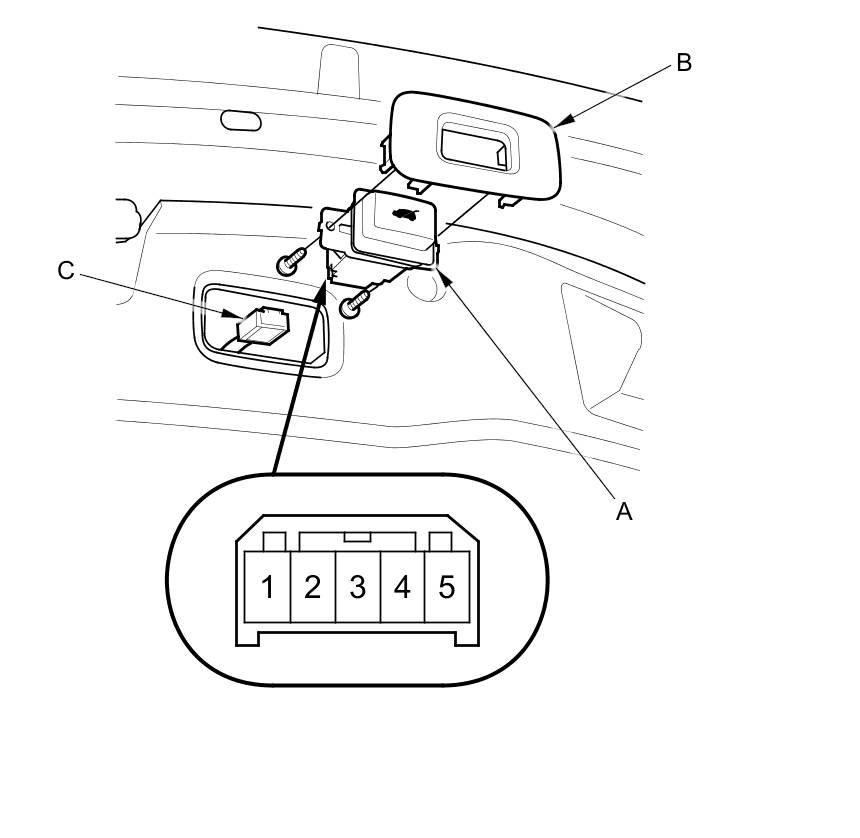

1. Carefully pry out the power tailgate inside switch (A) with the garnish (B), and disconnect the 5P connector (C) from the switch.

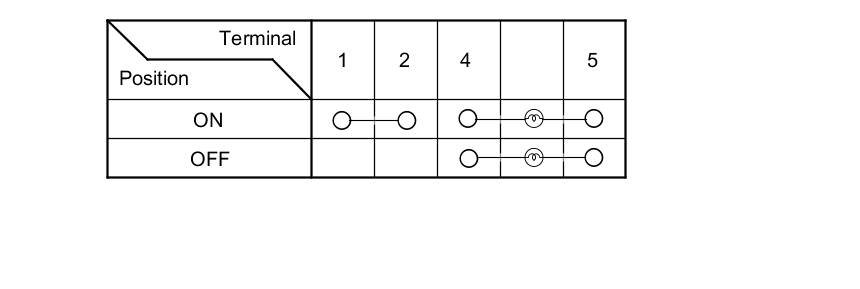

2. Check for continuity between the terminals in each switch position according to the table.






3. If the continuity is not as specified, check the bulb (A). If the bulb is OK, replace the switch.
