Floor Wire Harness (Right Branch), Rear Seat Heater Switch Sub-harness, Right Rear Damper Sub-harness, And Right Taillight Wire

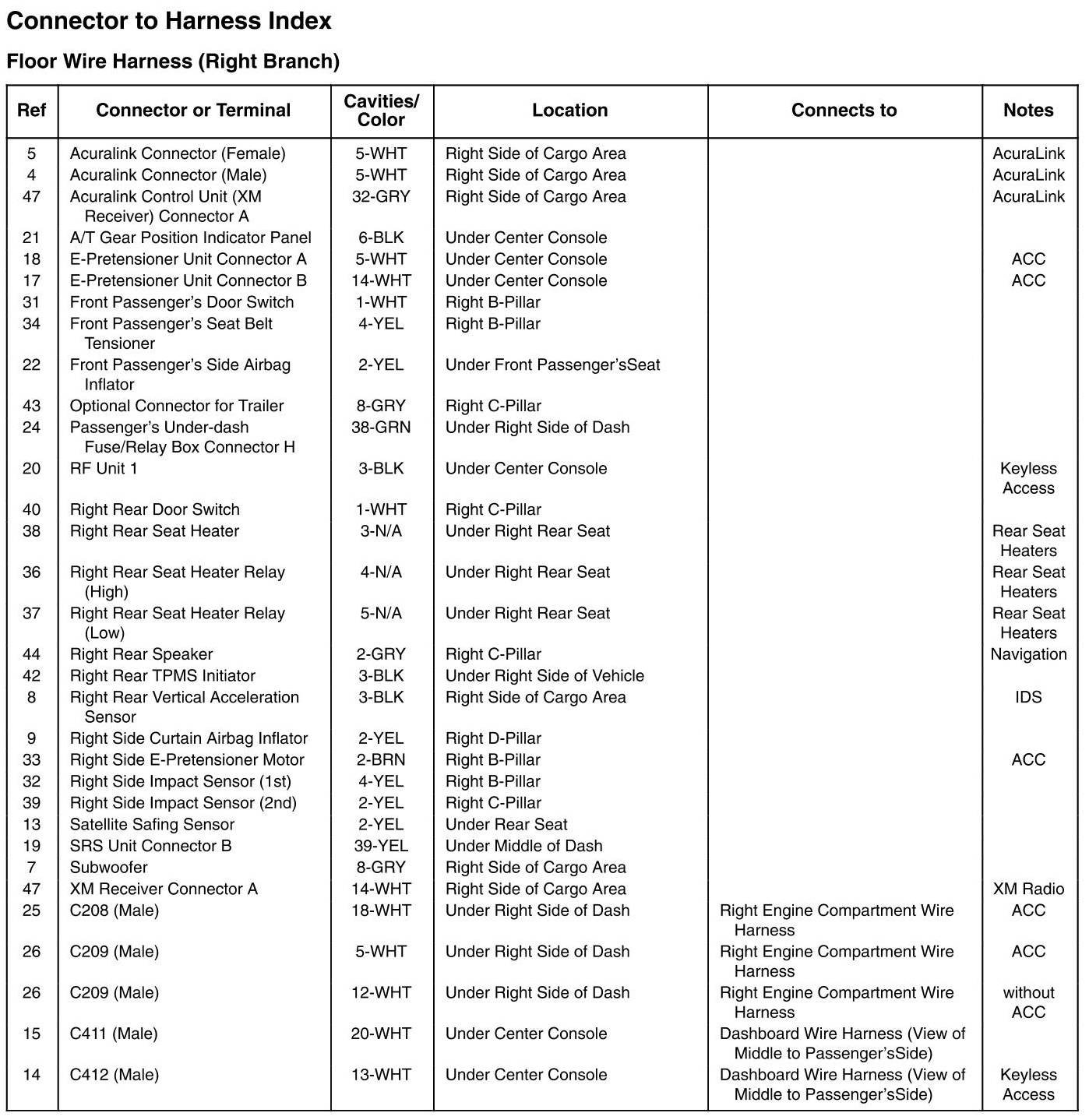

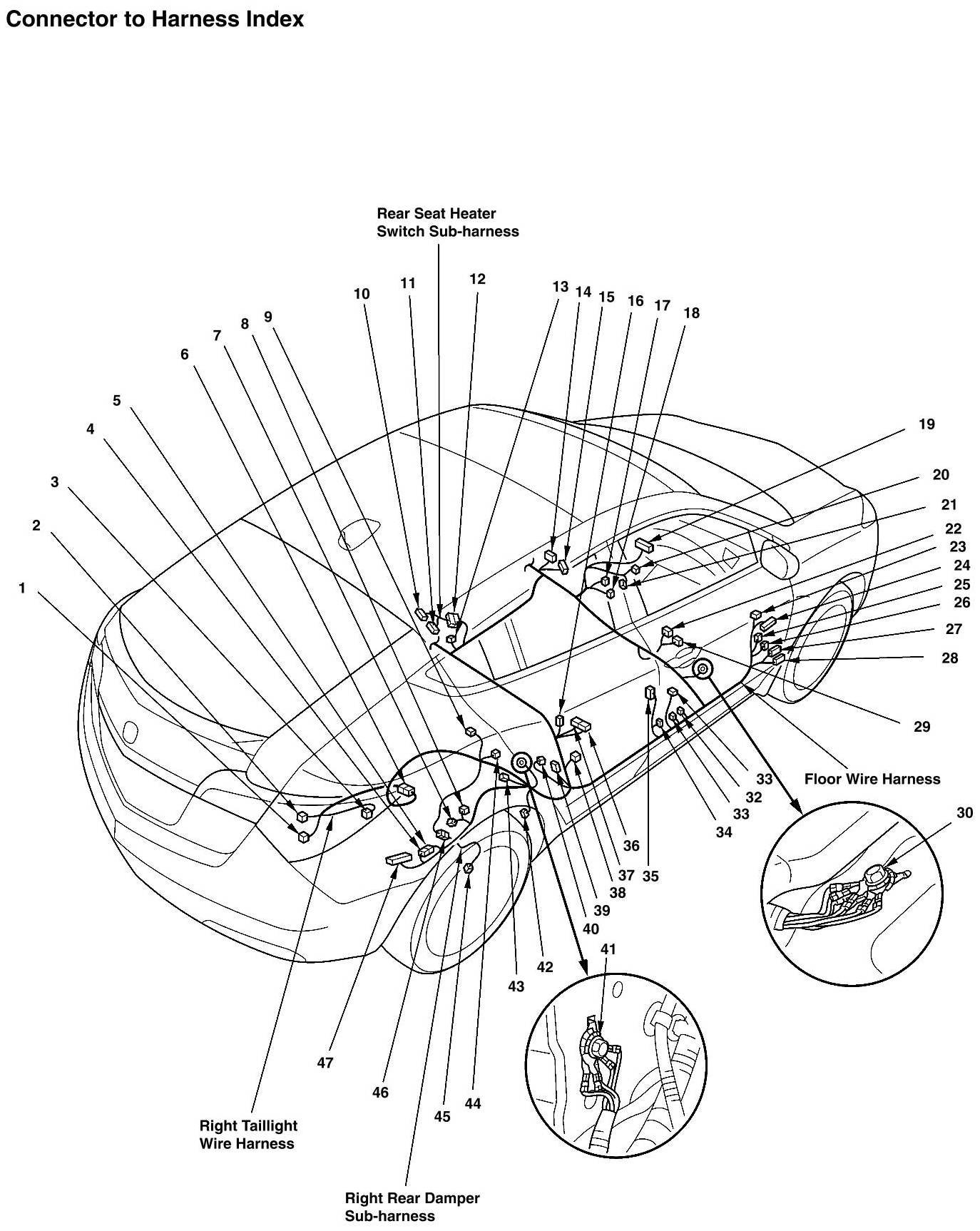

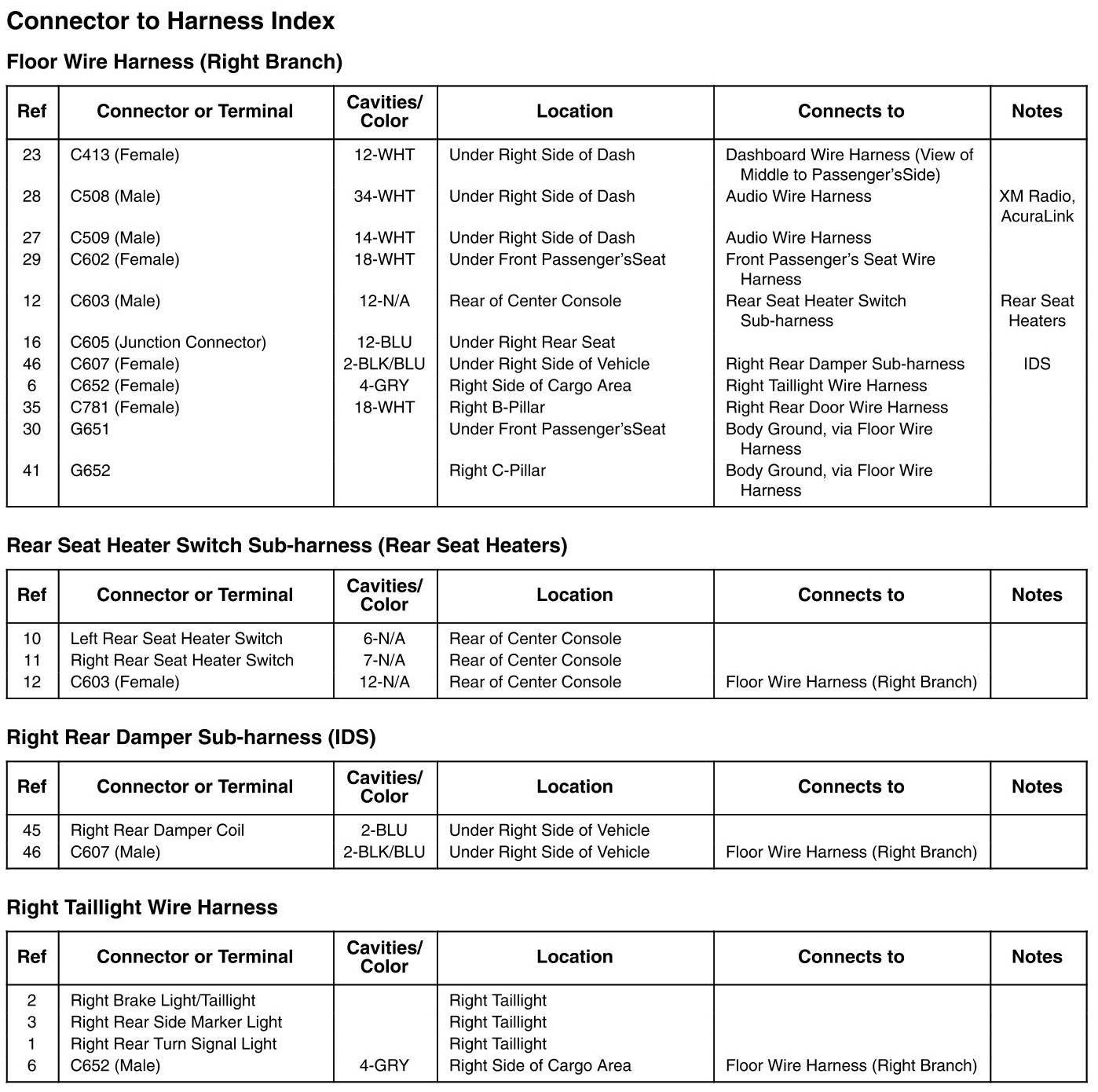

Floor Wire Harness (Right Branch), Rear Seat Heater Switch Sub-harness, Right Rear Damper Sub-harness, and Right Taillight Wire Harness
