Right Engine Compartment Wire Harness

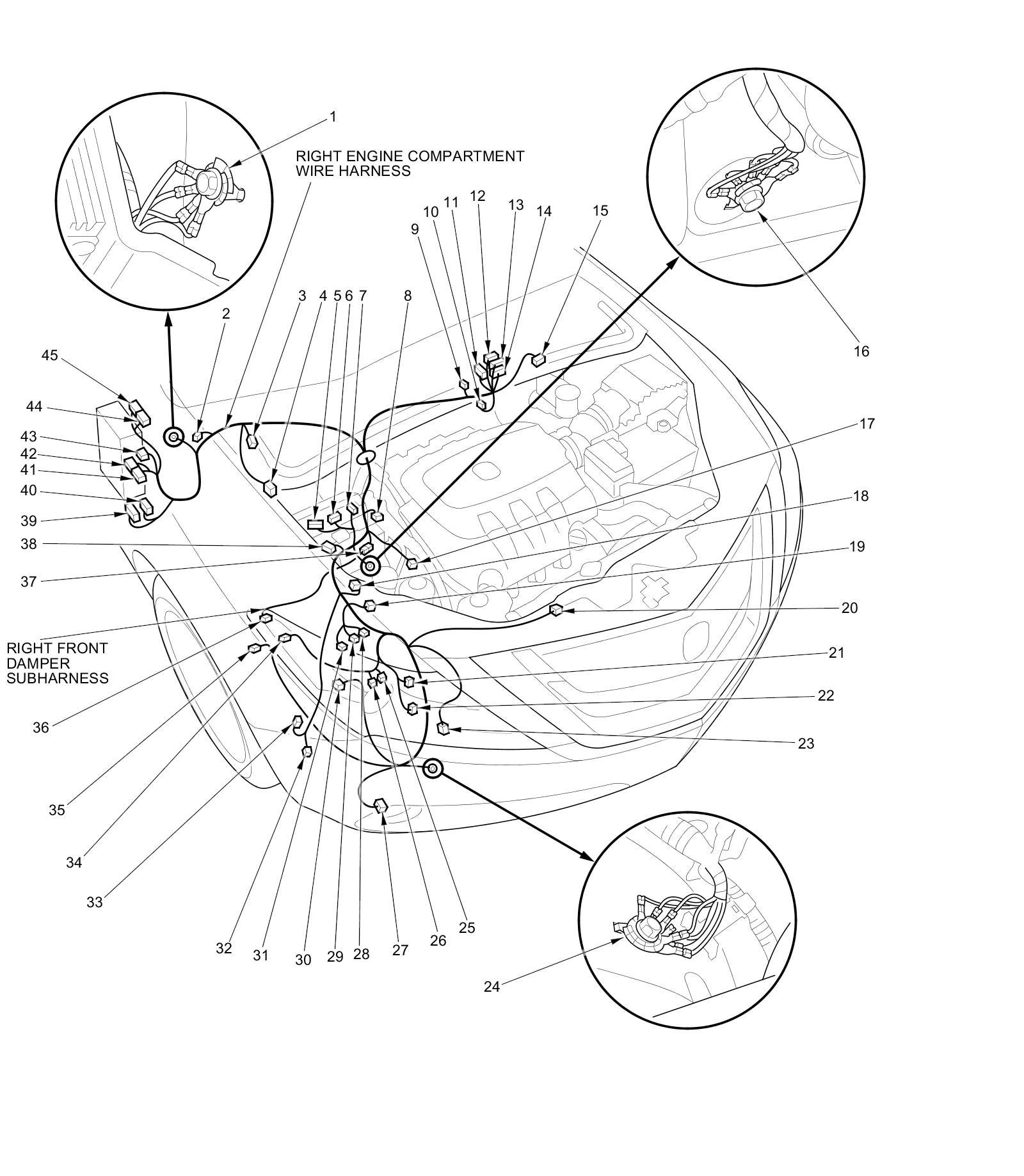

Connector and Harness Locations

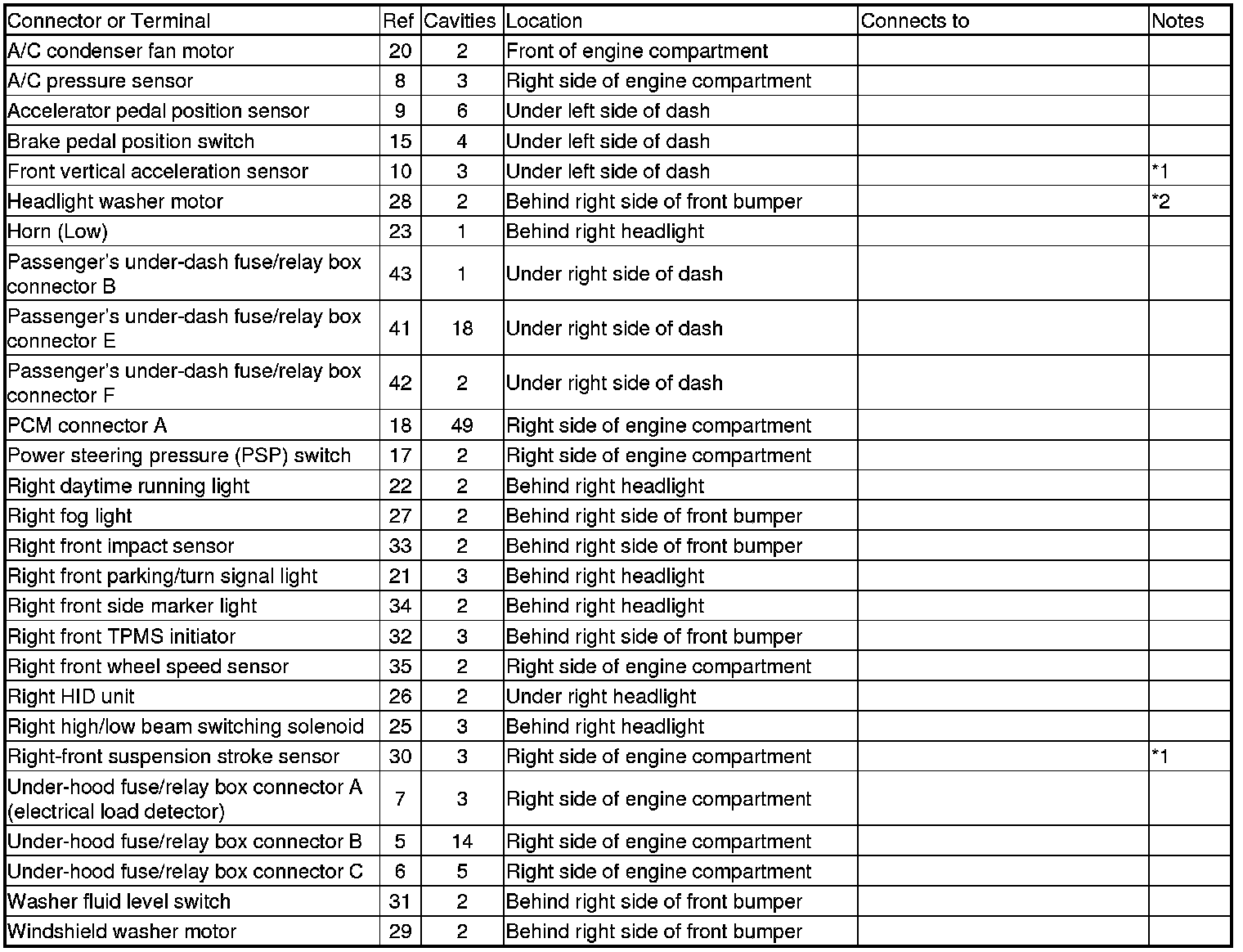

Right Engine Compartment Wire Harness

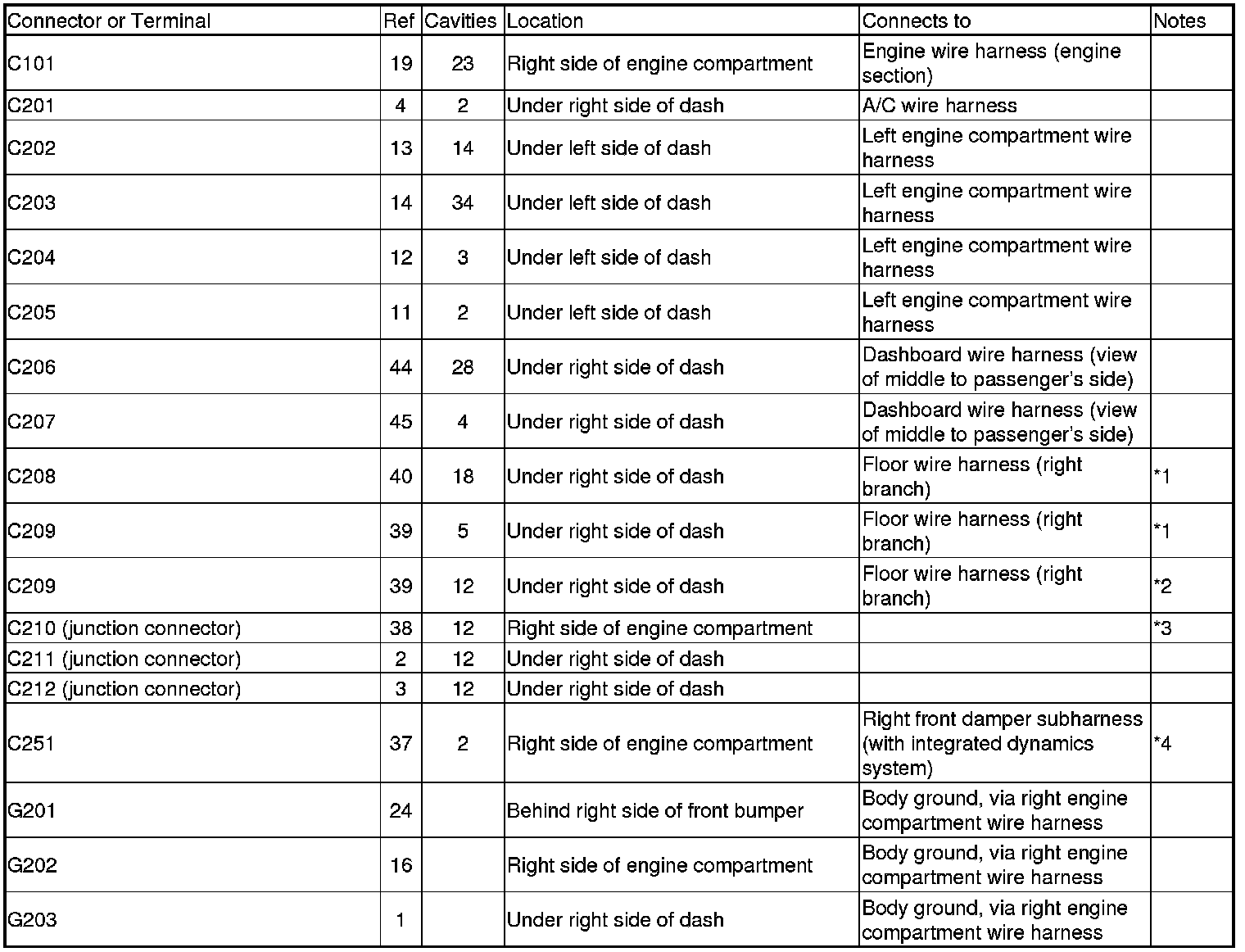

Right Engine Compartment Wire Harness (cont'd)
