Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Harness >> Front Passenger's Door Subharness

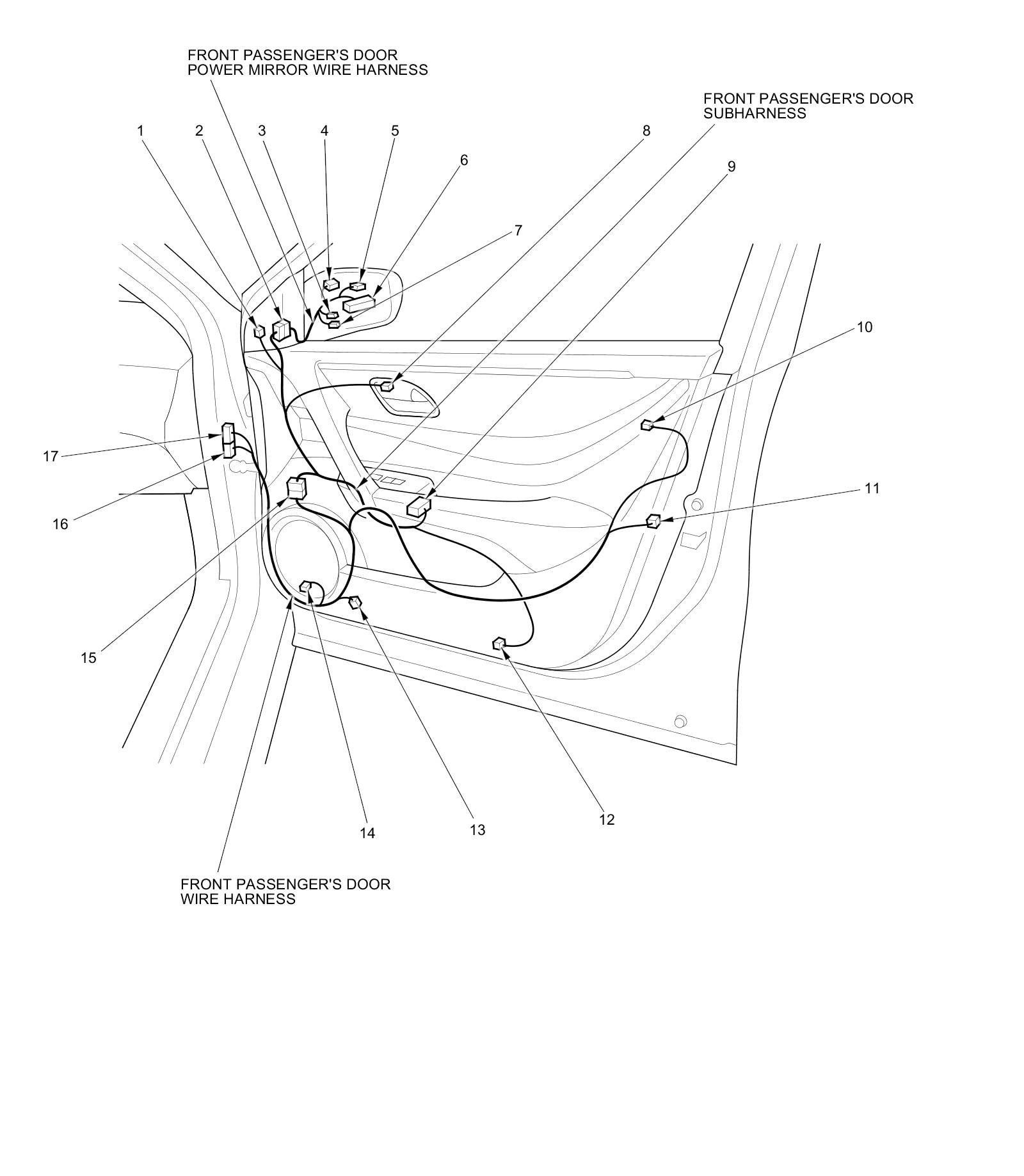

Front Passenger's Door Subharness




Connector and Harness Locations

Front Passenger's Door Subharness
