Floor Wire Harness




Connector and Harness Locations

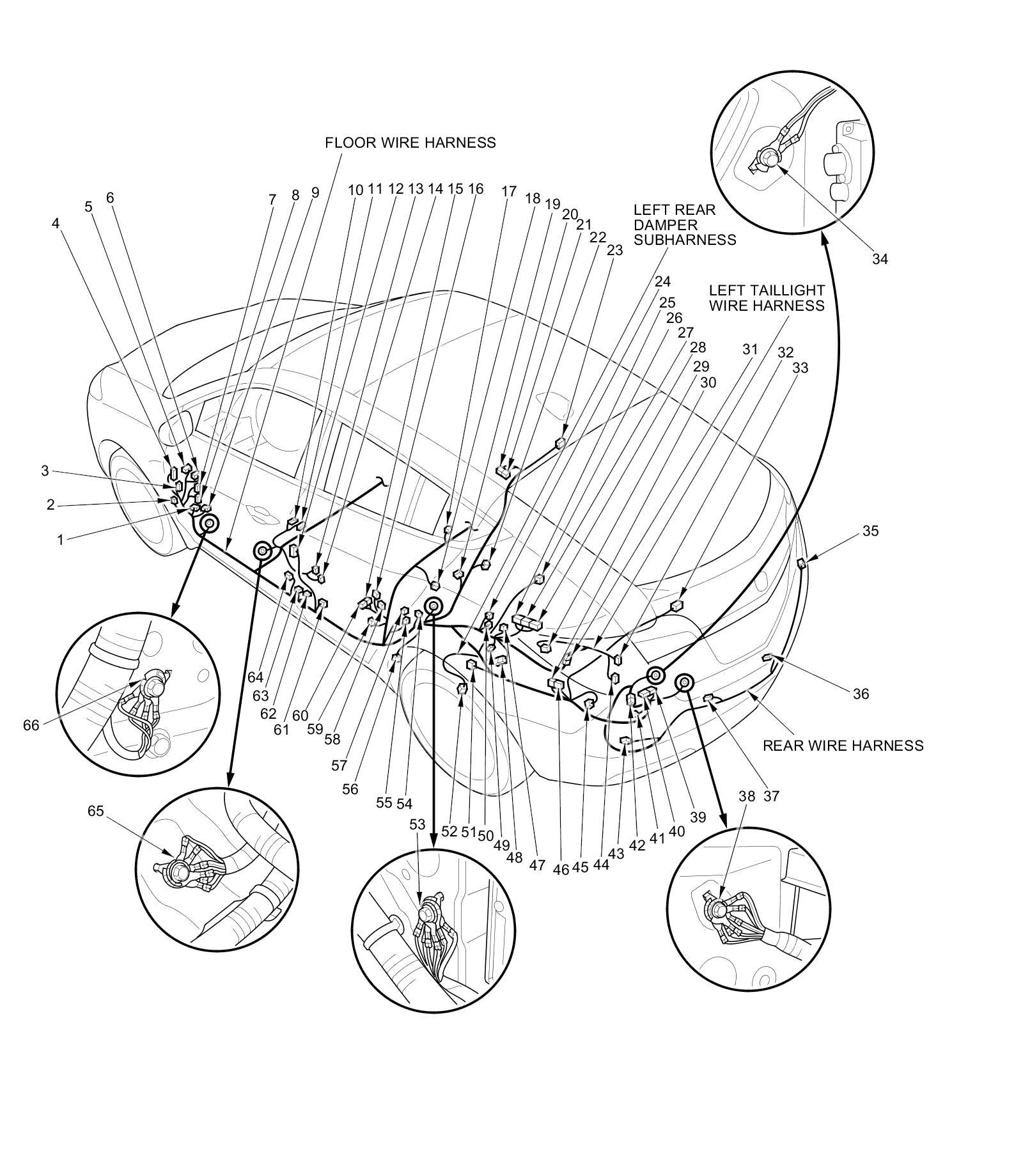

Floor Wire Harness (Left Branch)

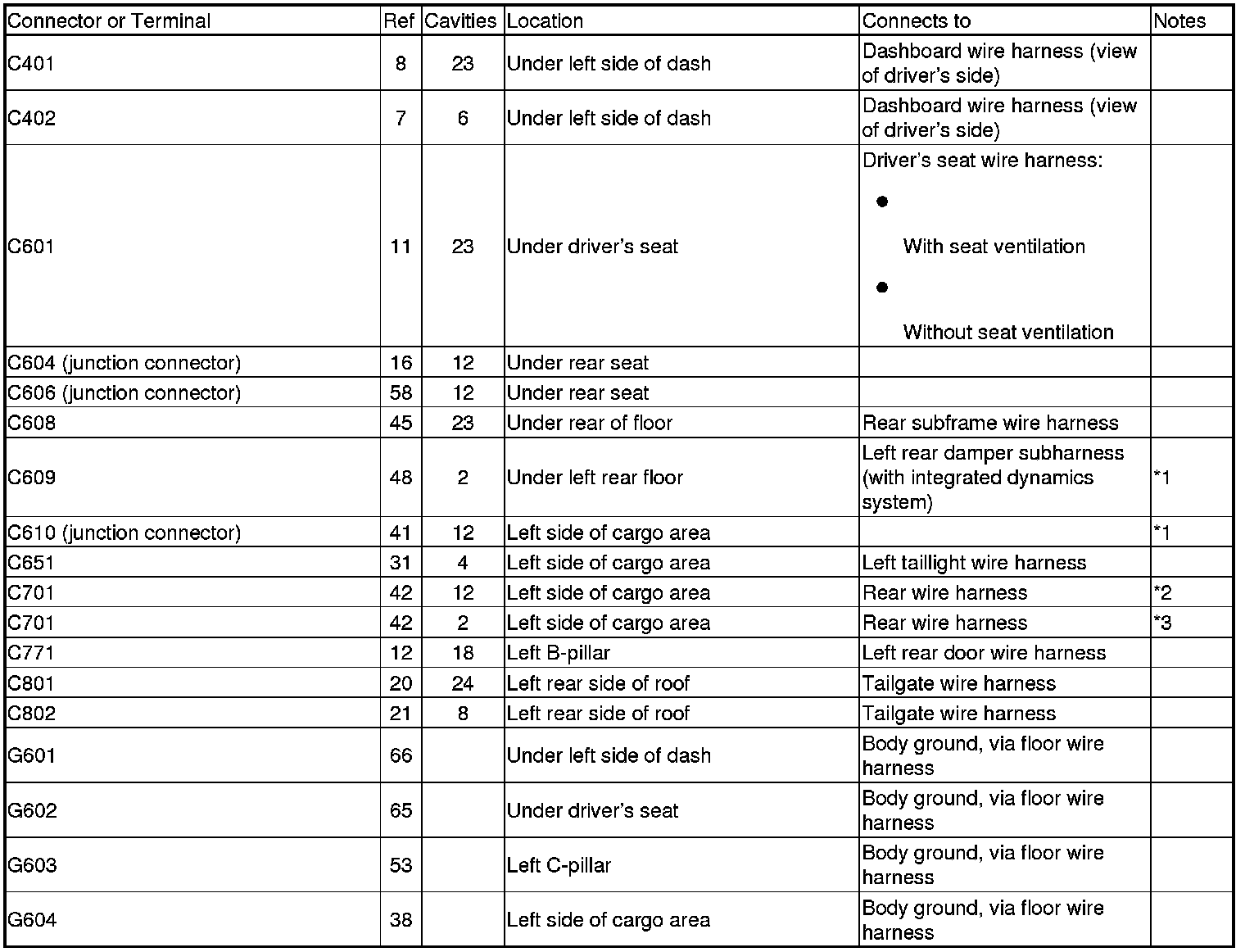

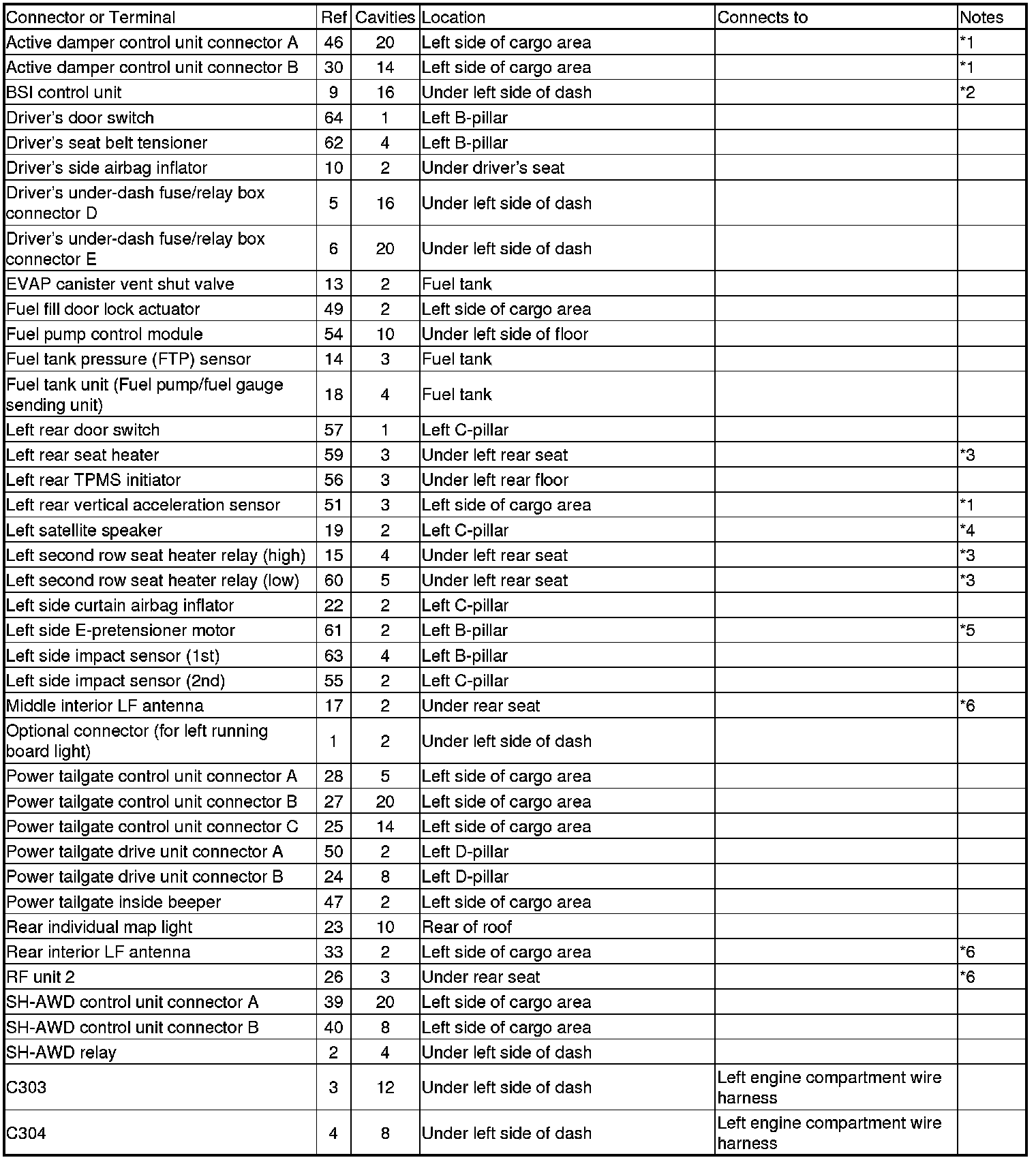

Floor Wire Harness (Left Branch) (cont'd)

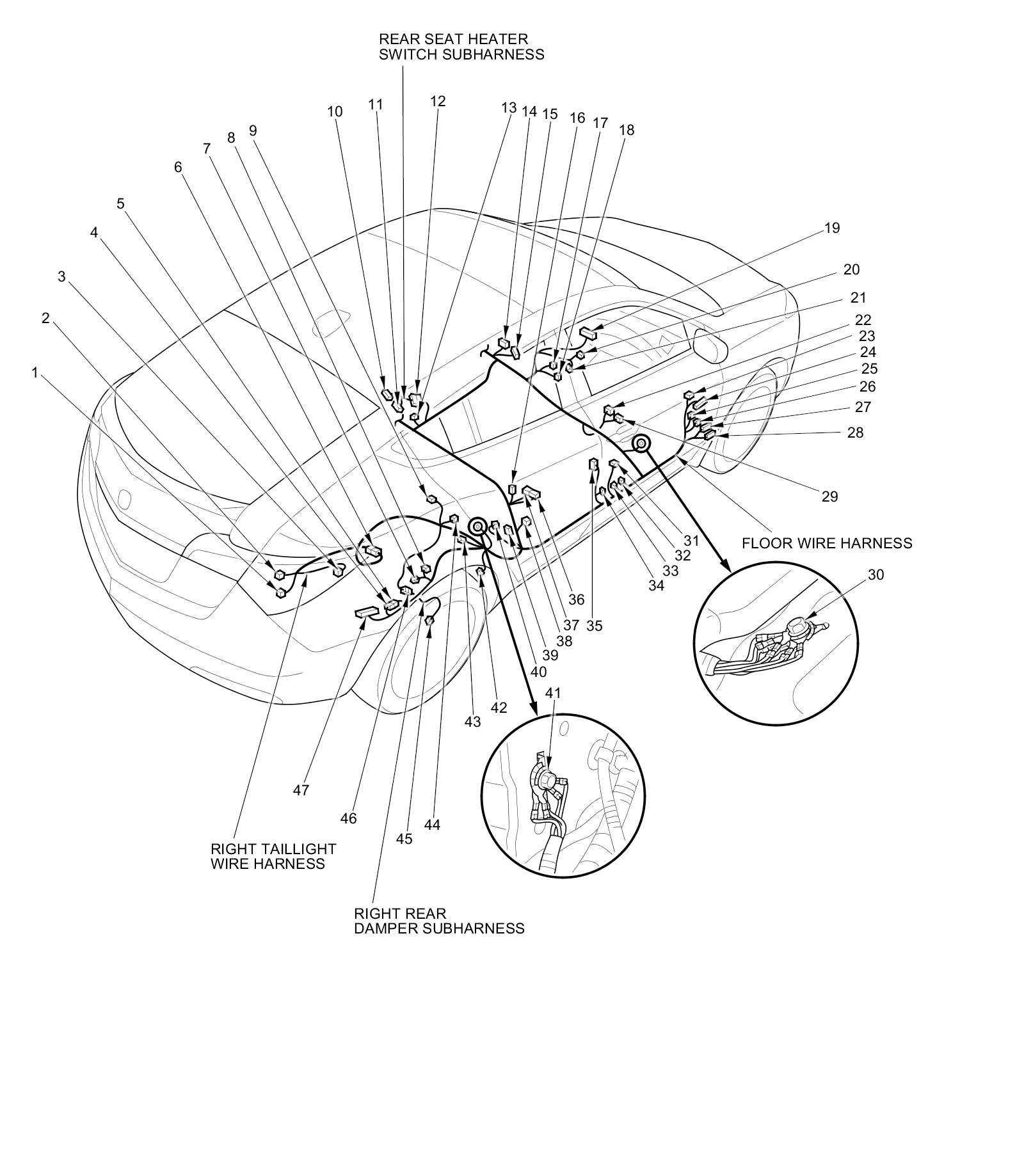

Floor Wire Harness (Right Branch)

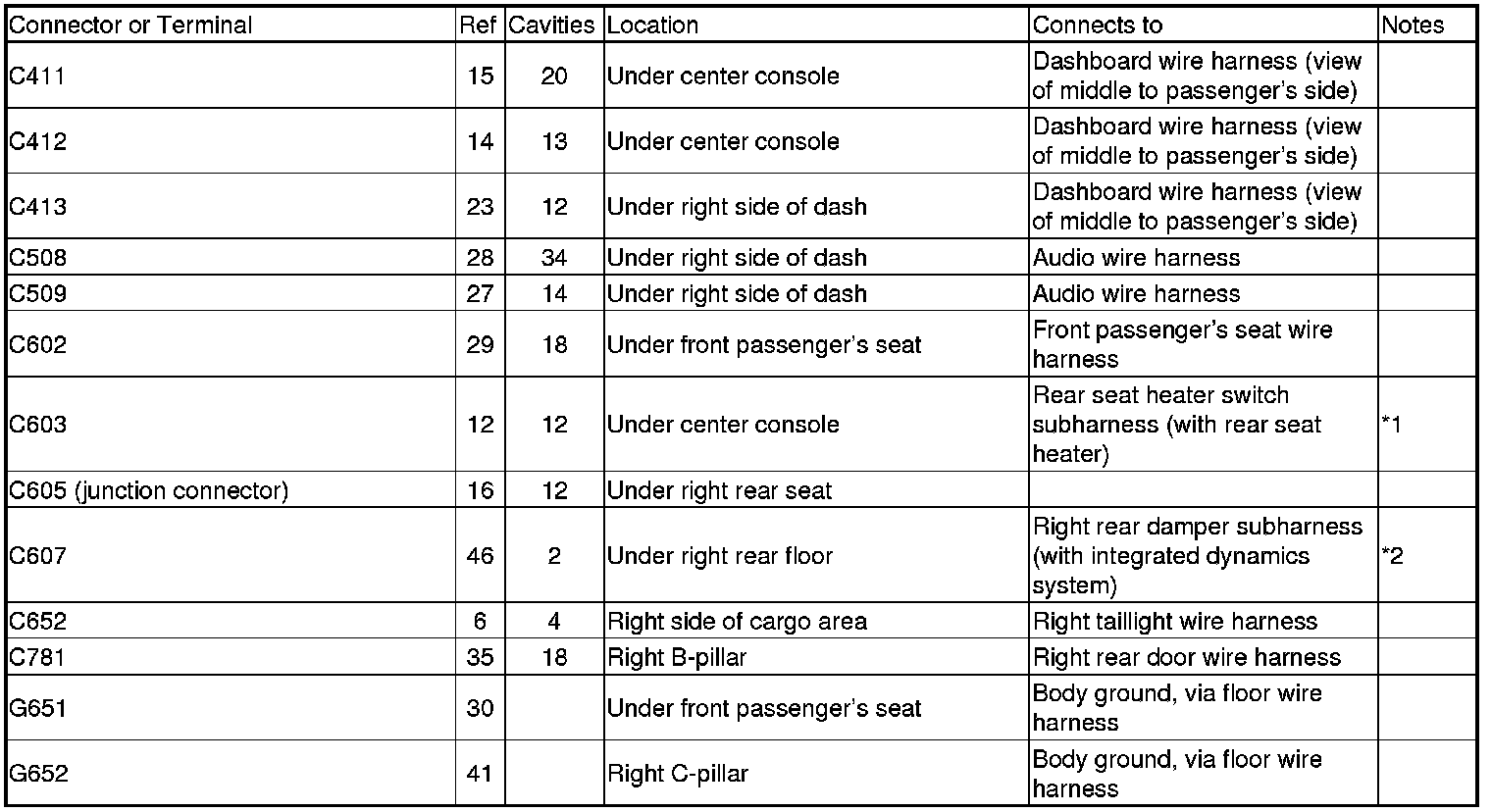

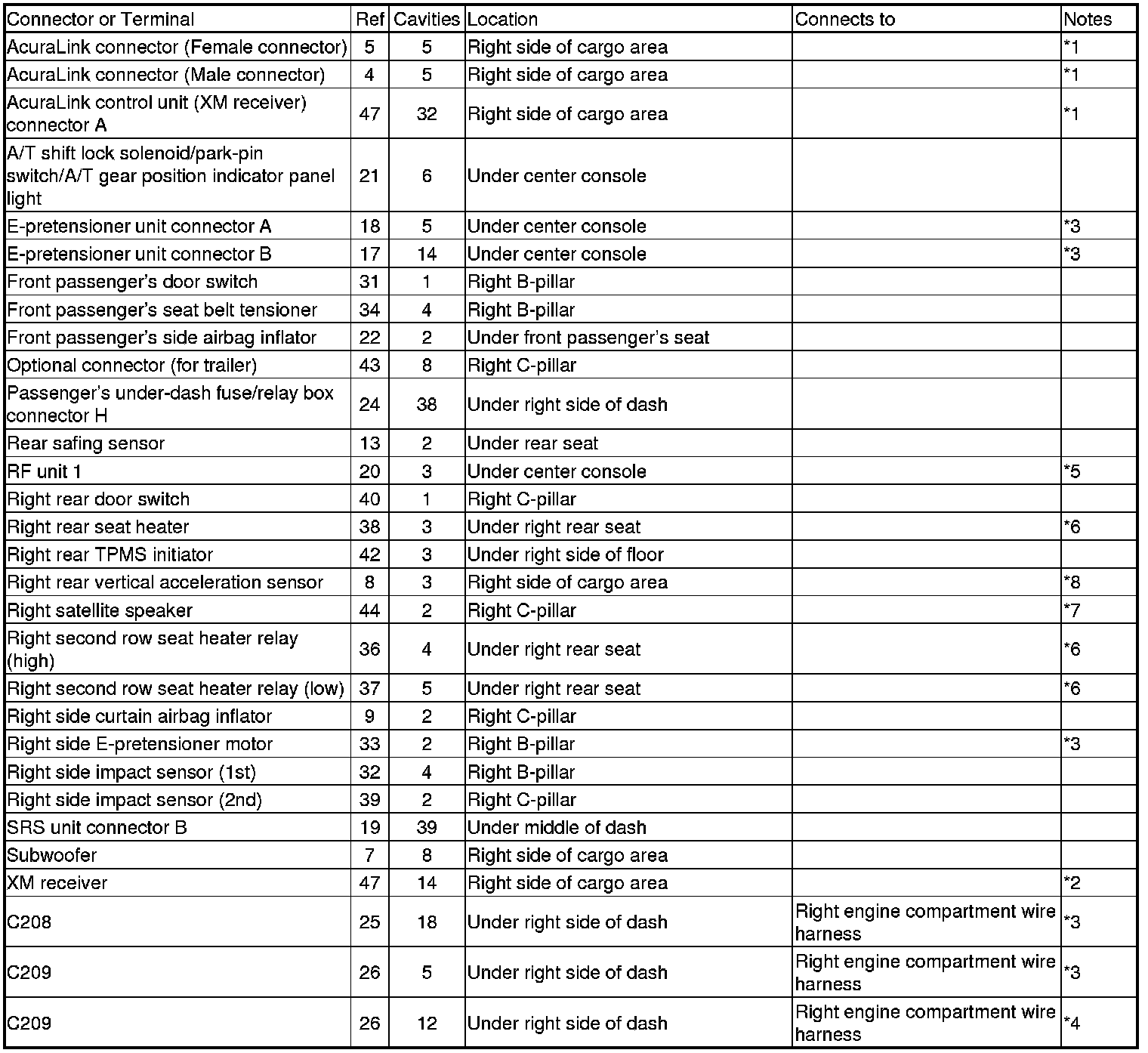

Floor Wire Harness (Right Branch) (cont'd)
