Engine Wire Harness
Connector and Harness Locations

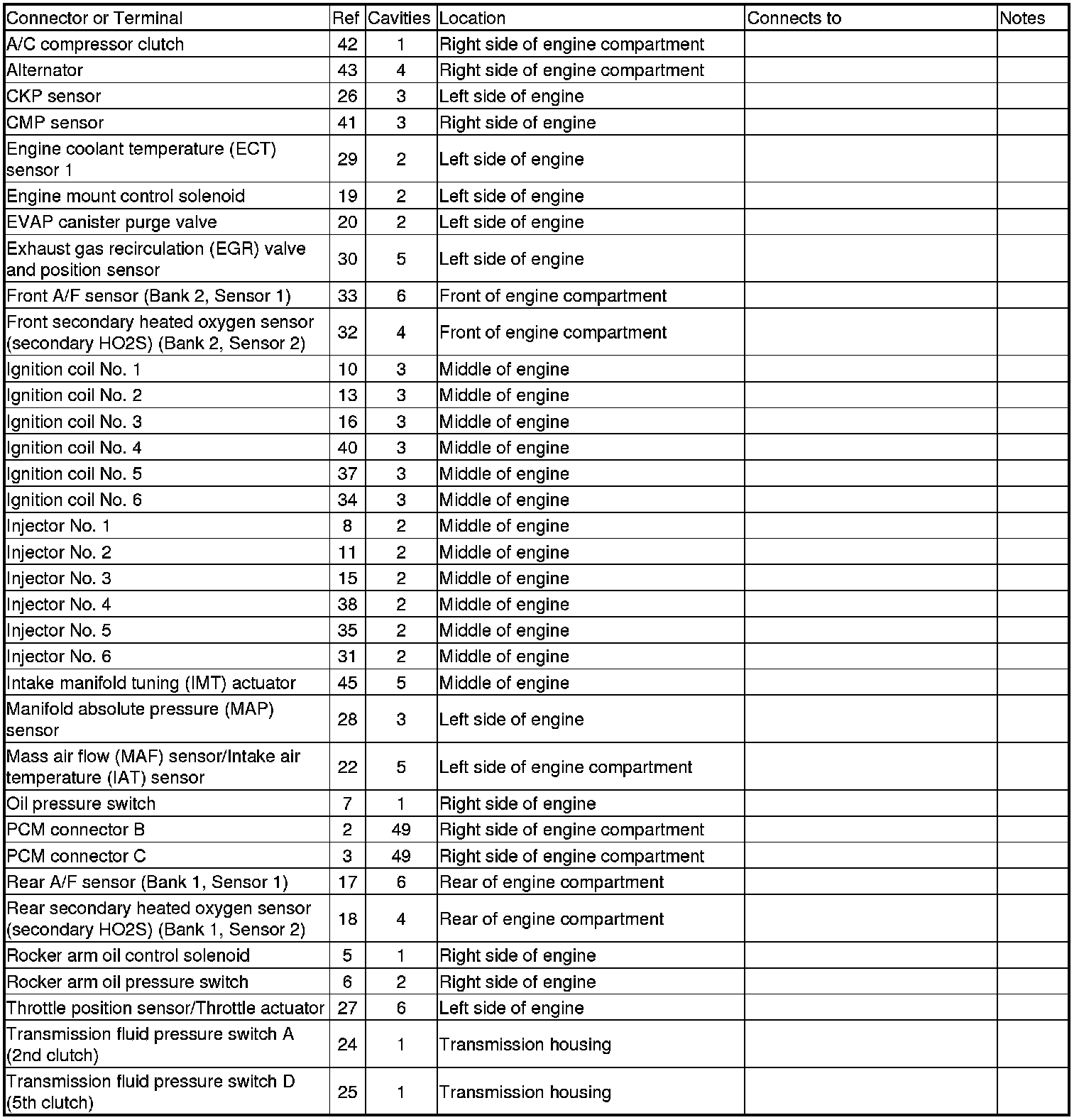

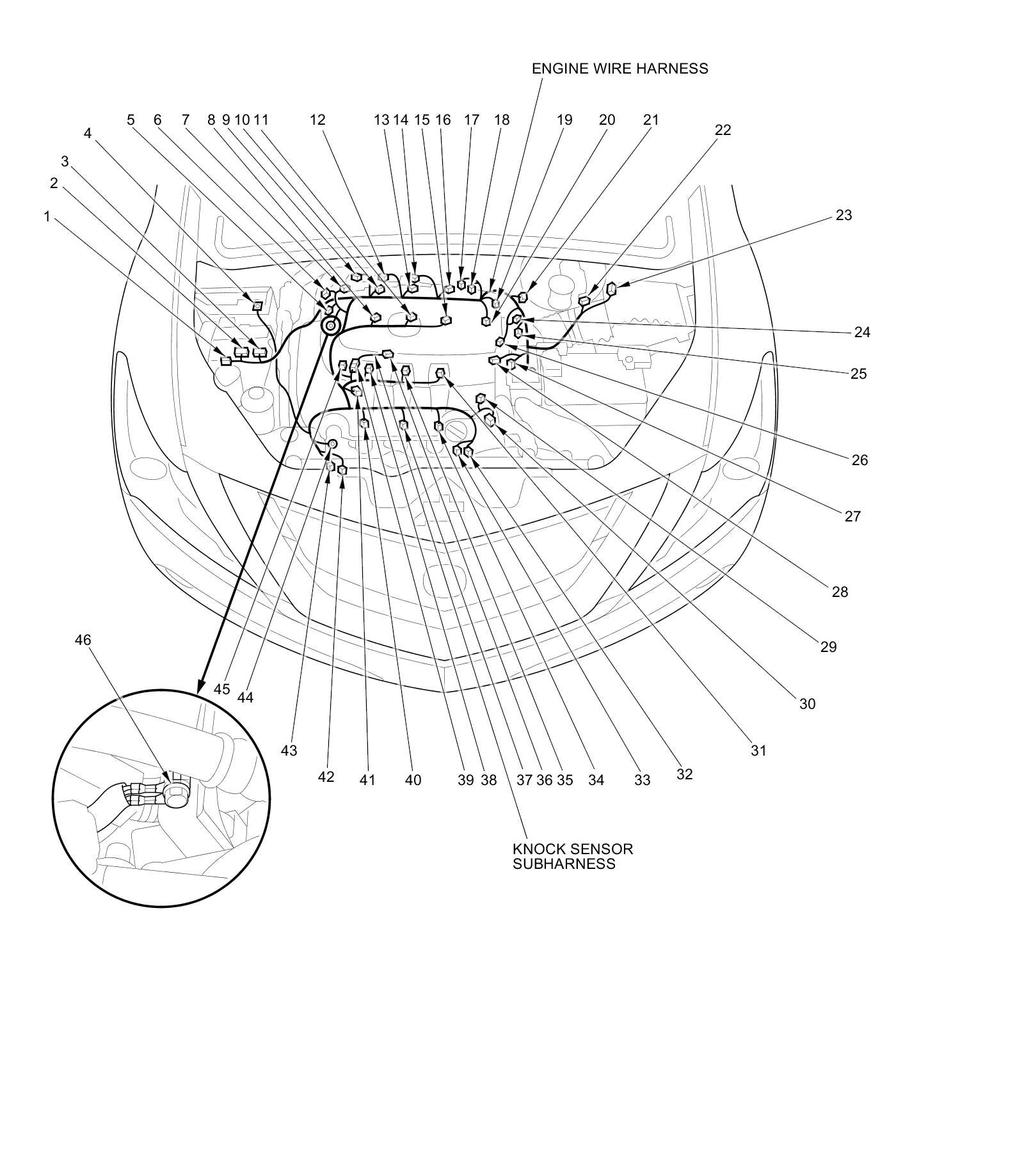

Engine Wire Harness (Engine Section)

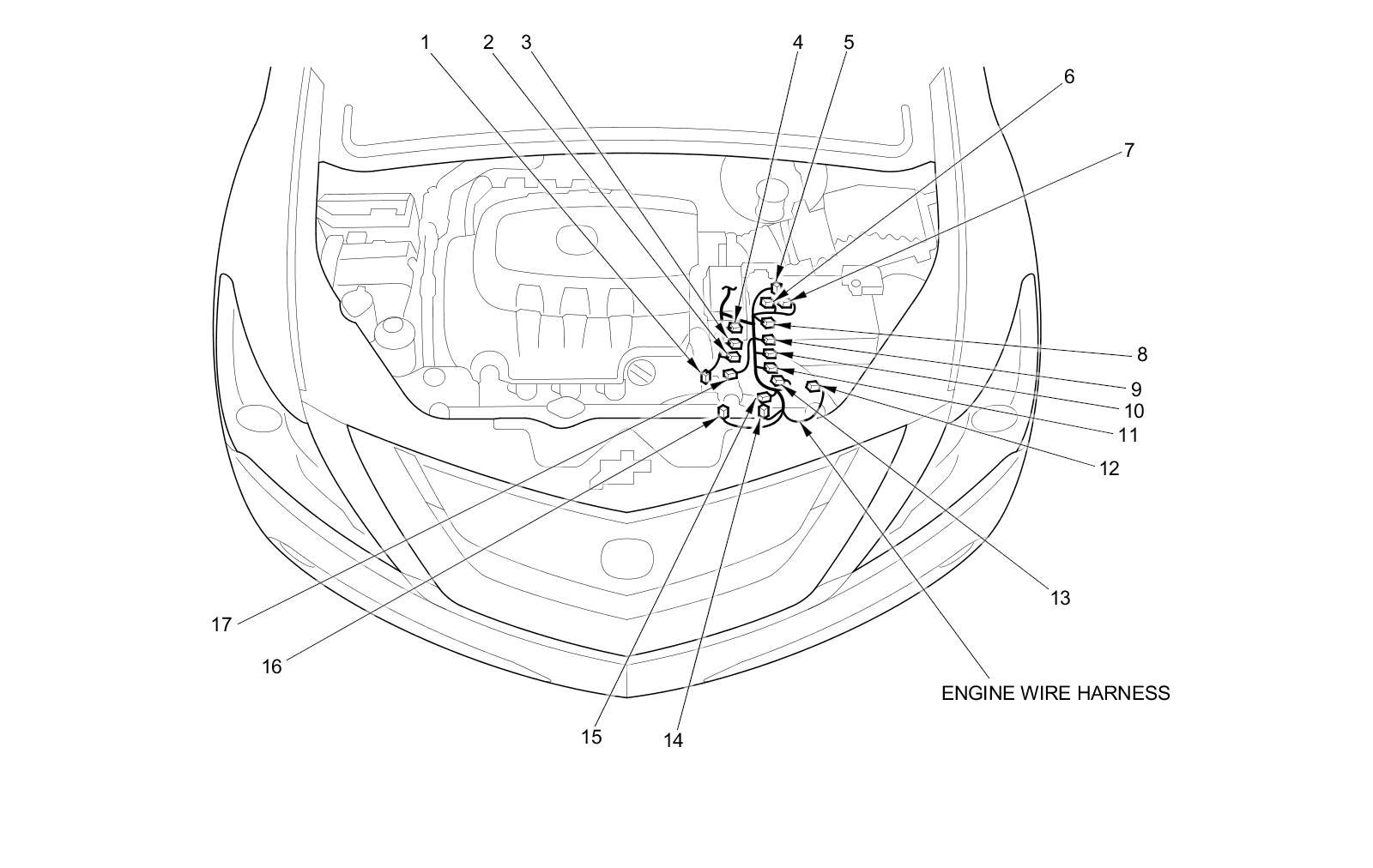

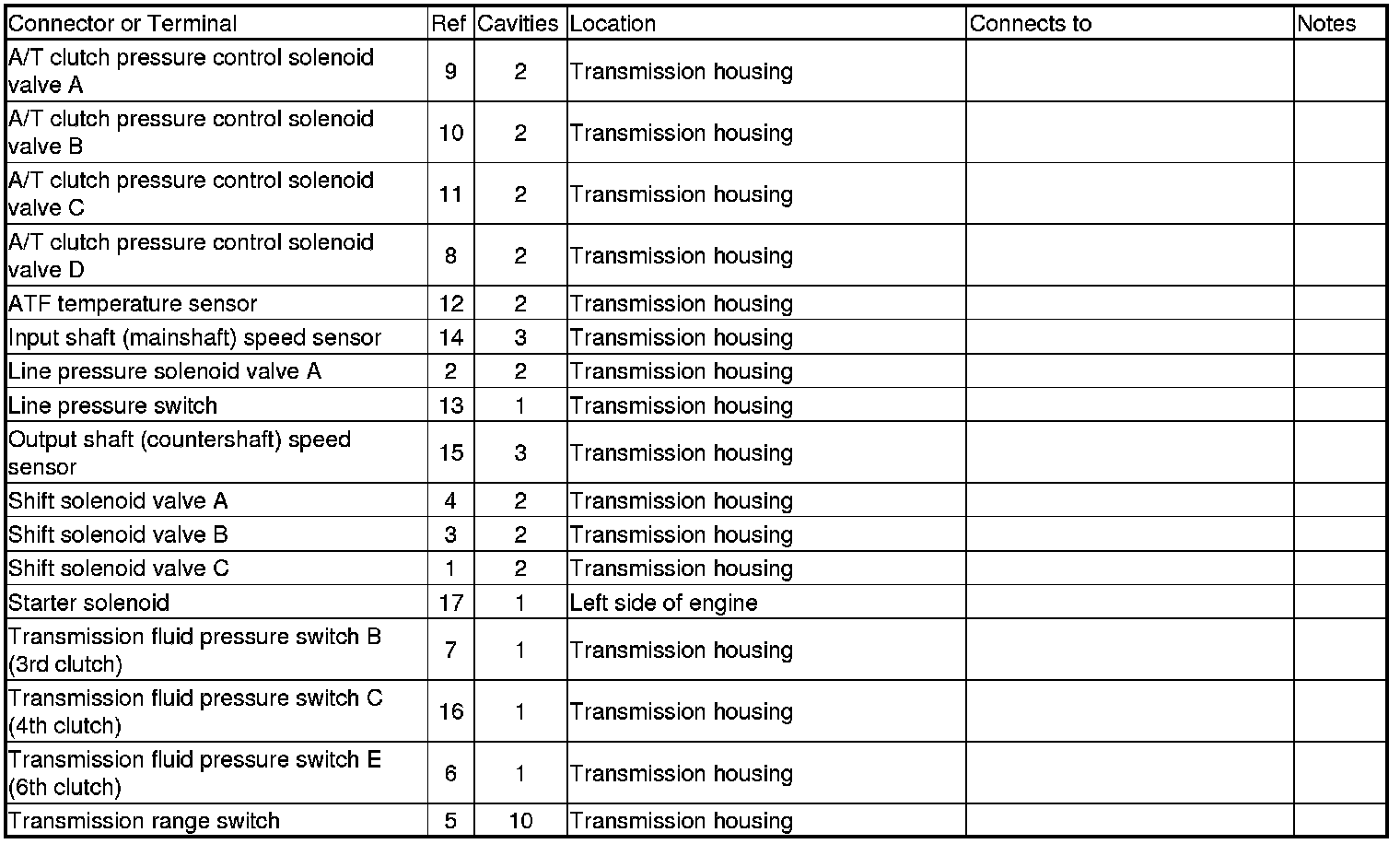

Engine Wire Harness (Transmission Section)
