Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Wire Harness (Engine Section) And Knock Sensor Sub-Harness

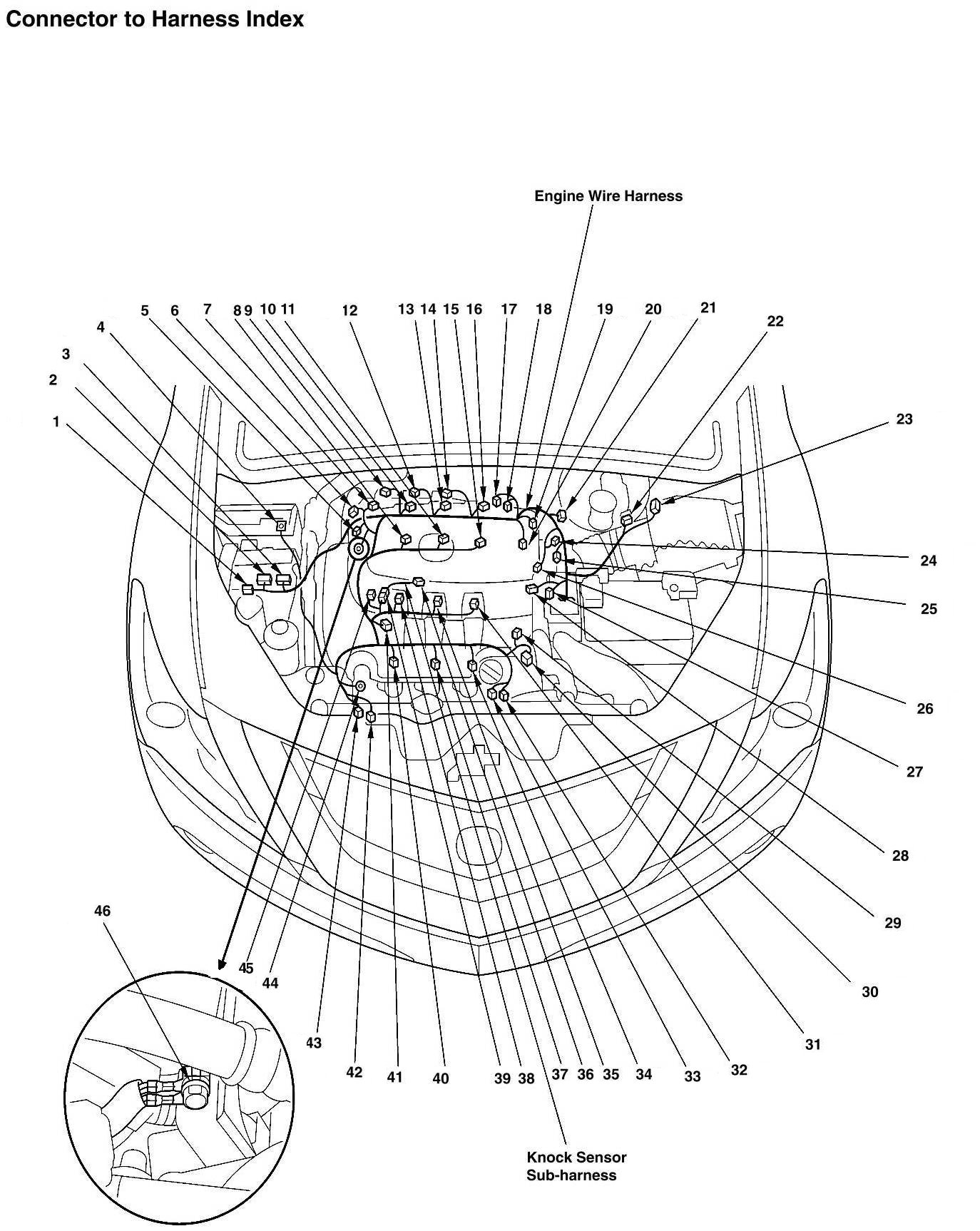

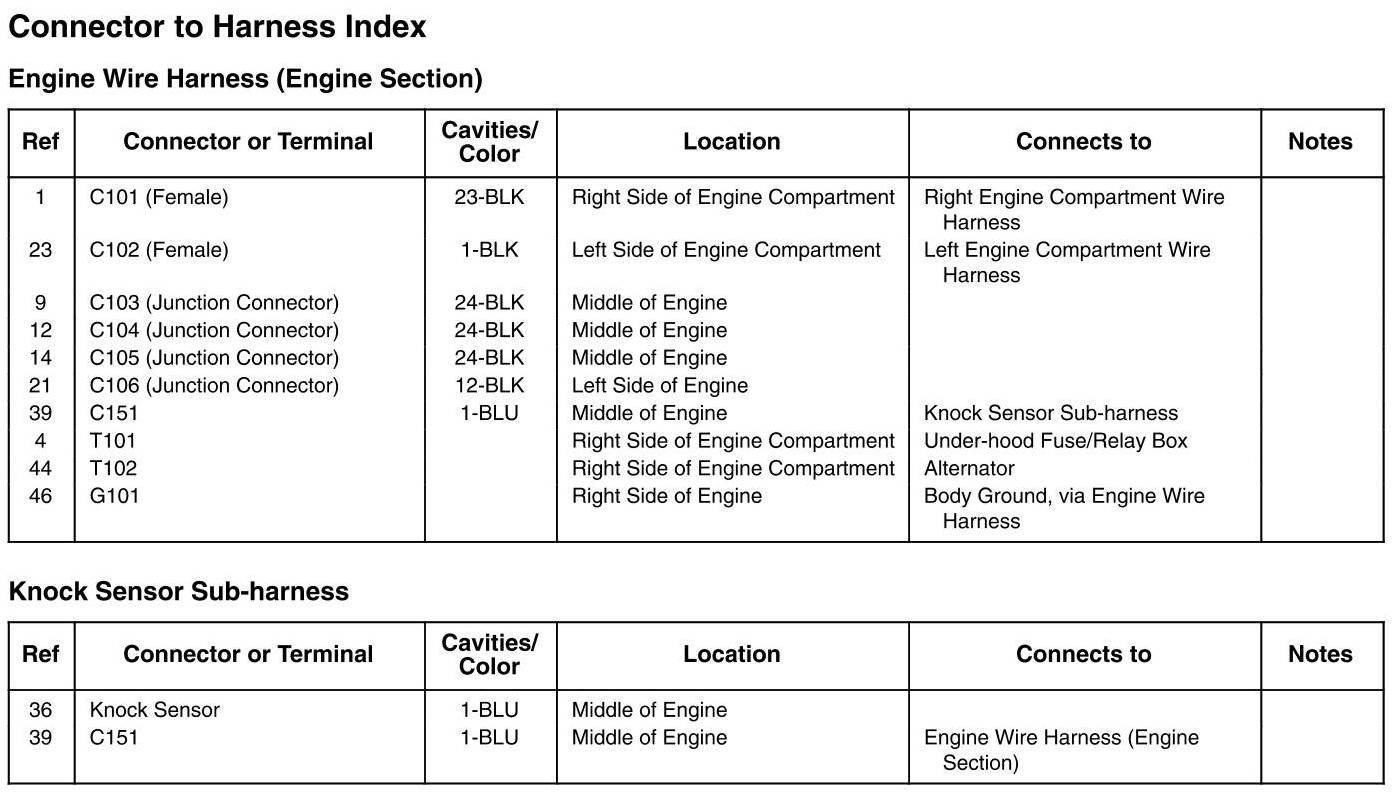

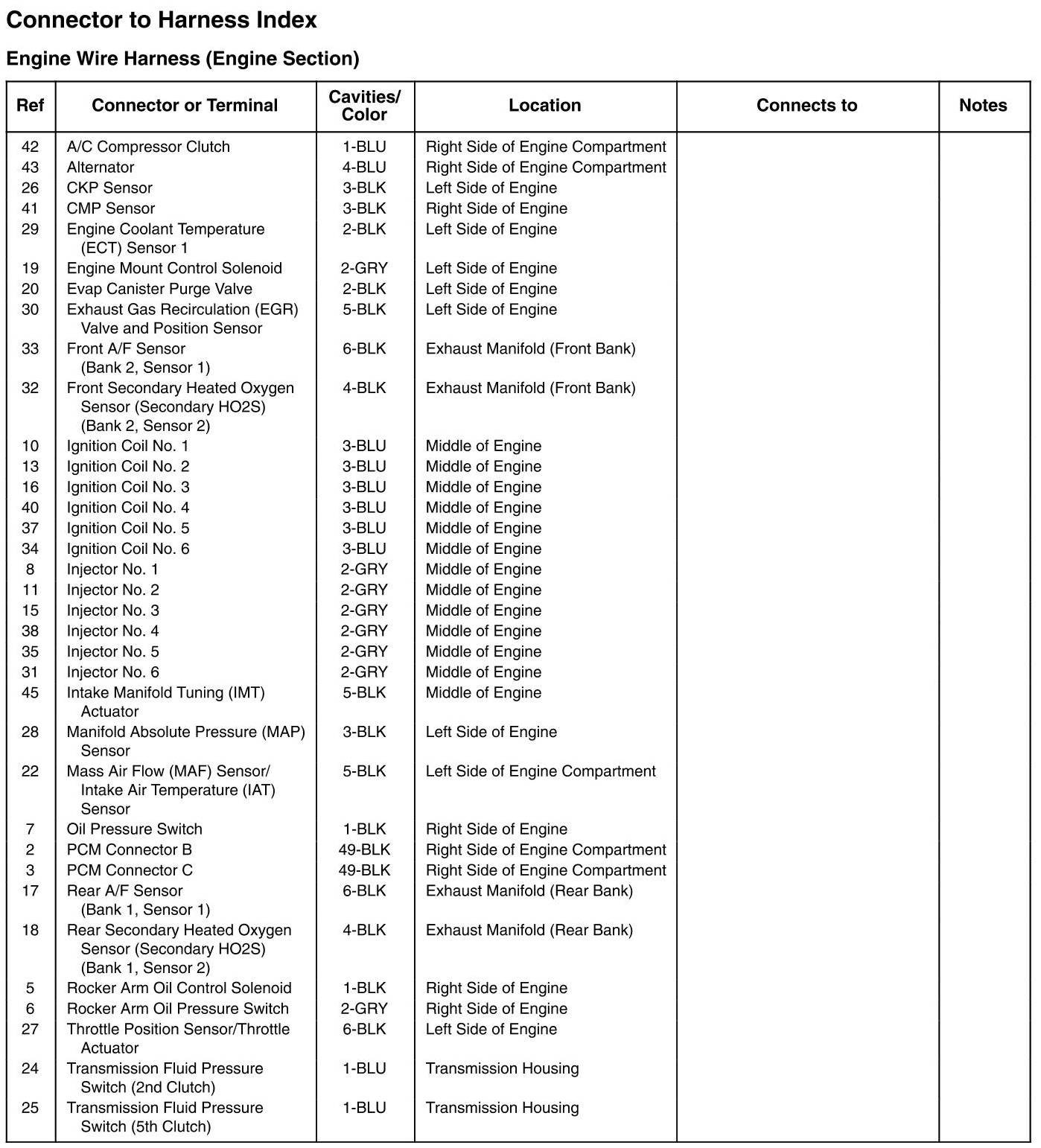

Engine Wire Harness (Engine Section) And Knock Sensor Sub-Harness
