Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Harness >> Driver's Seat Wire Harness

Driver's Seat Wire Harness




Connector and Harness Locations

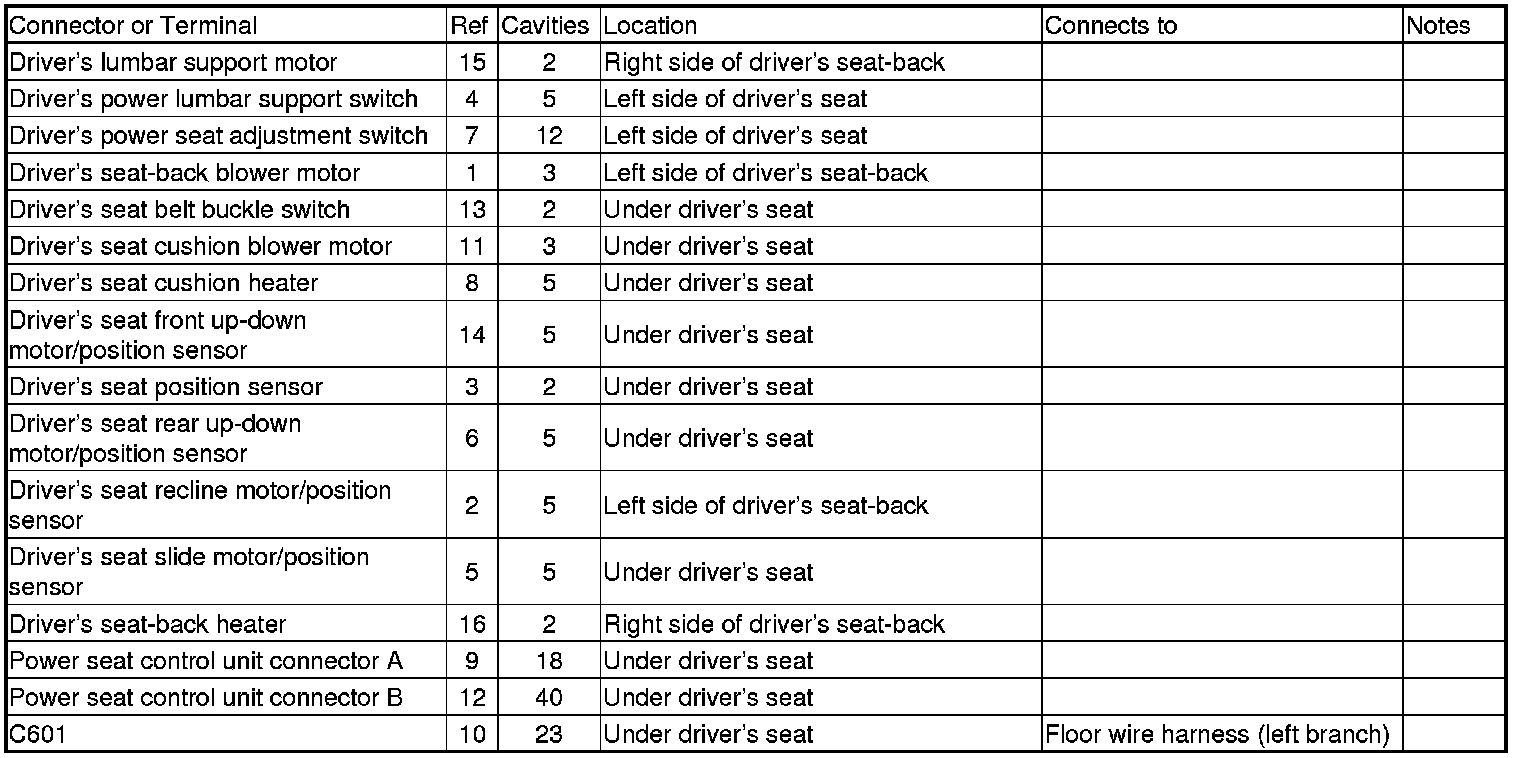

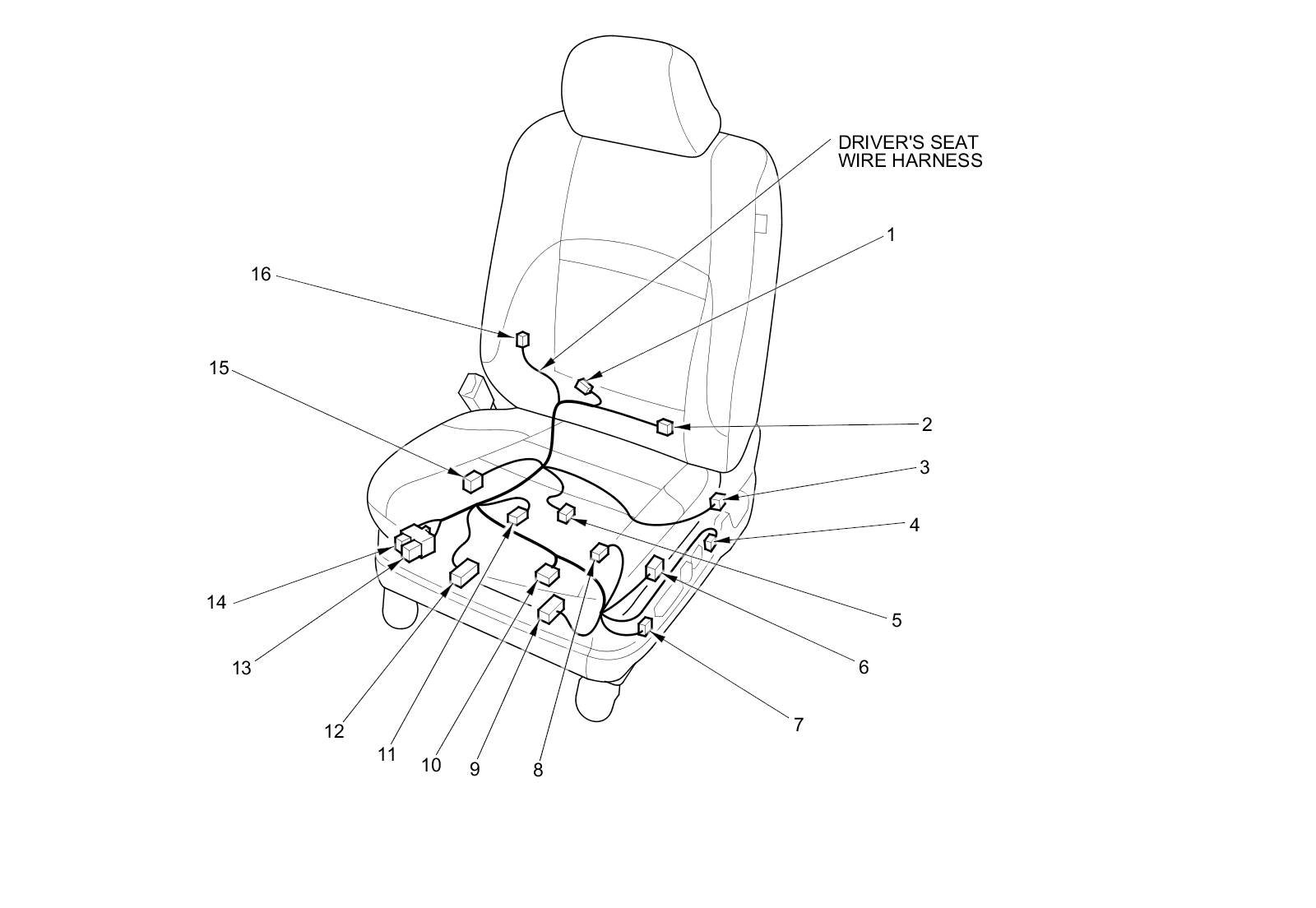

Driver's Seat Wire Harness (With Seat Ventilation)

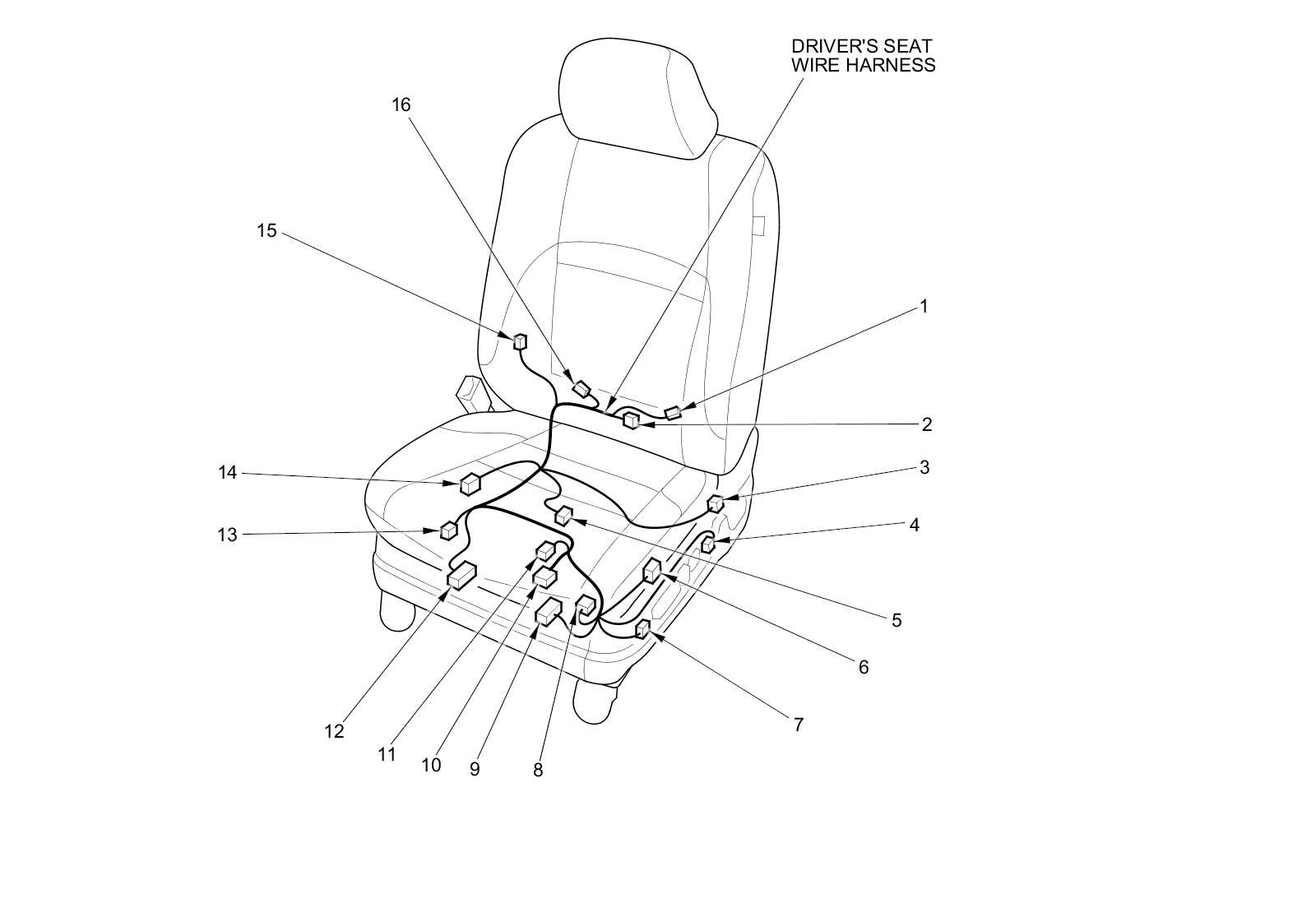

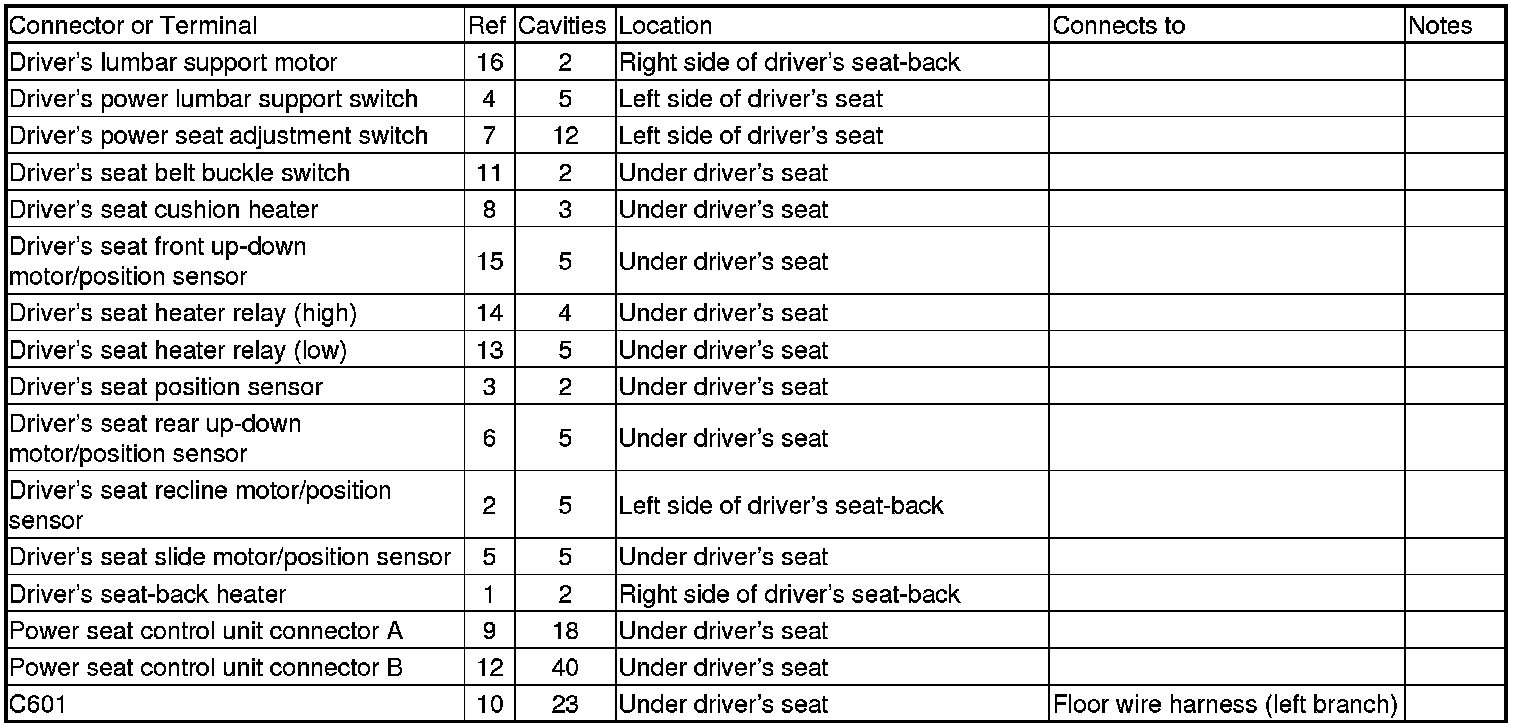

Driver's Seat Wire Harness (Without Seat Ventilation)
