Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Harness >> Cable Reel Sub-Harness >> Connector to Harness Index

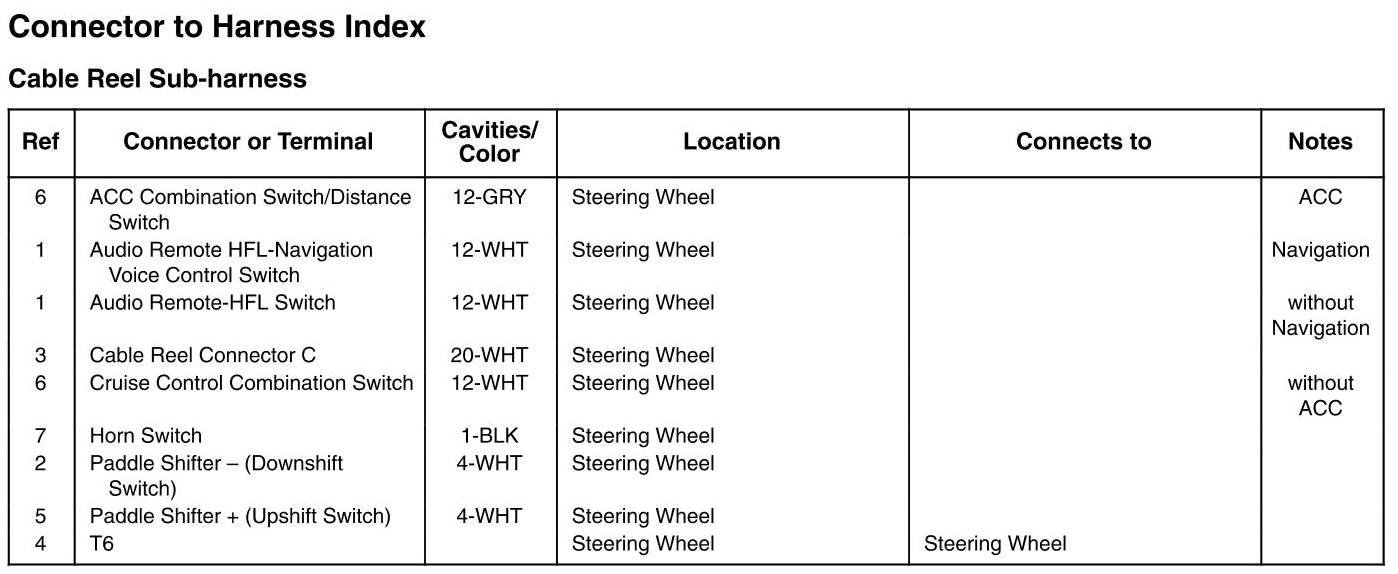

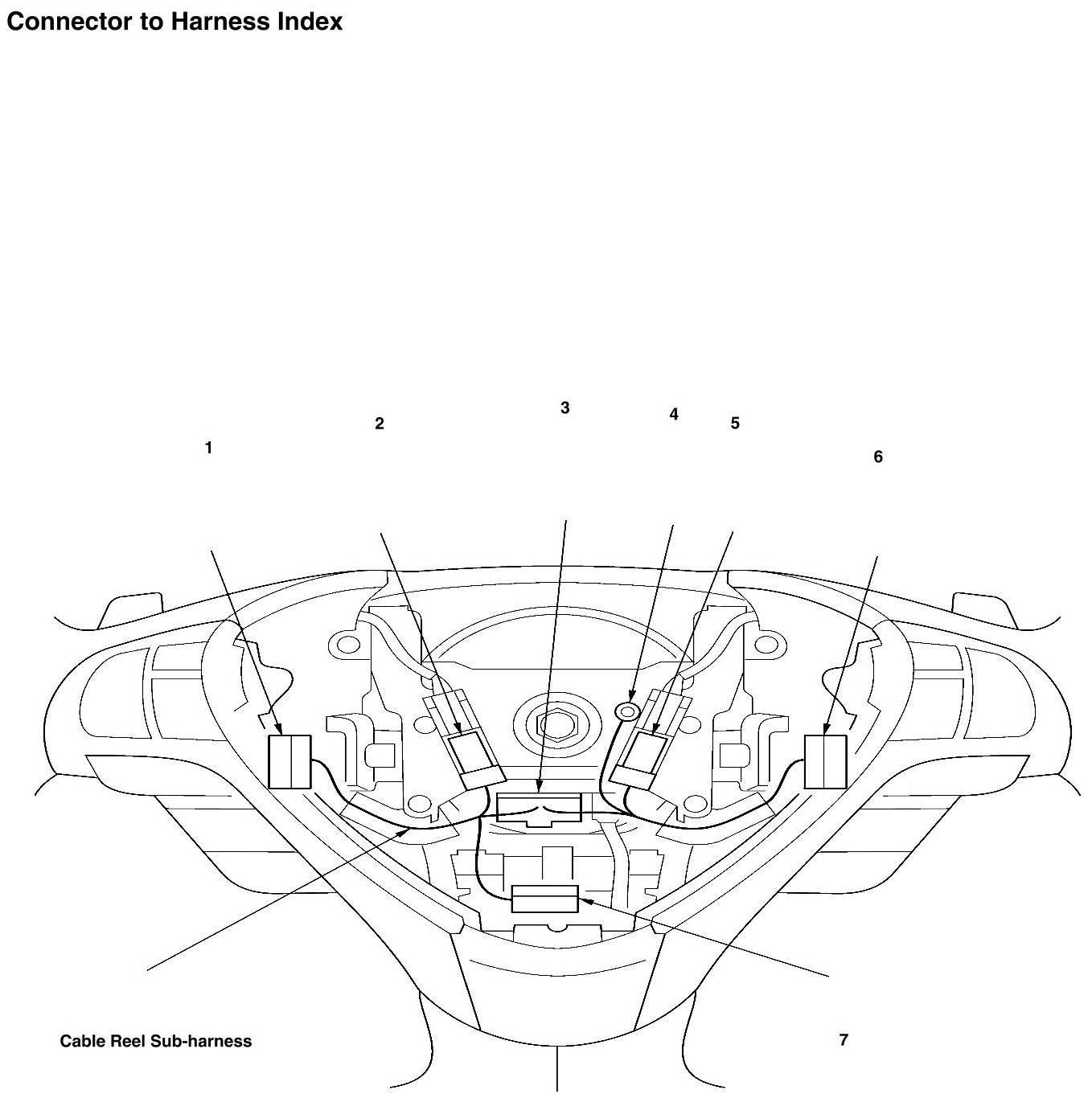

Connector to Harness Index
