Trailer Connector
>>

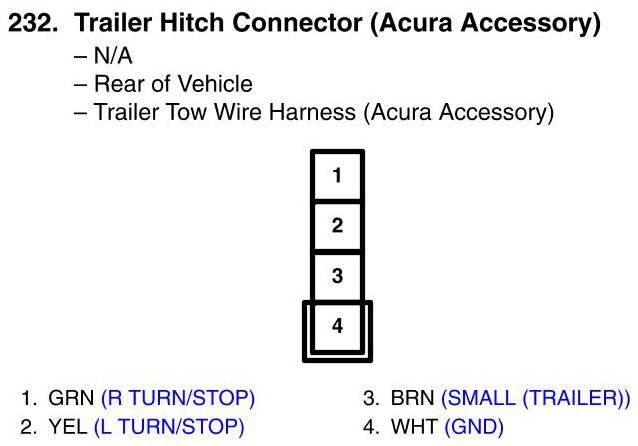

Trailer Hitch Connector Connector View (Acura Accessory)
Trailer Hitch Connector Connector View (Acura Accessory)
