Seat Temperature Switch
>>

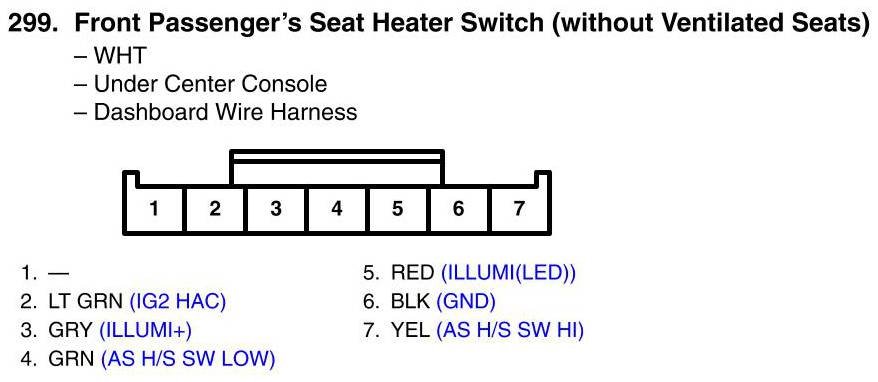

Front Passenger's Seat Heater Switch Connector View (Without Ventilated Seats)
Front Passenger's Seat Heater Switch Connector View (Without Ventilated Seats)
