Seat Temperature Relay
>>

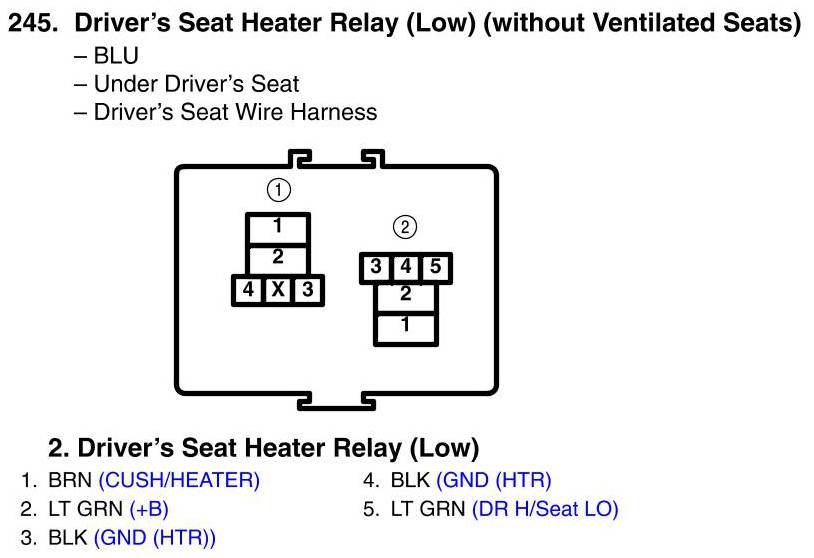

Driver's Seat Heater Relay (Low) Connector View (Without Ventilated Seats)
Driver's Seat Heater Relay (Low) Connector View (Without Ventilated Seats)
