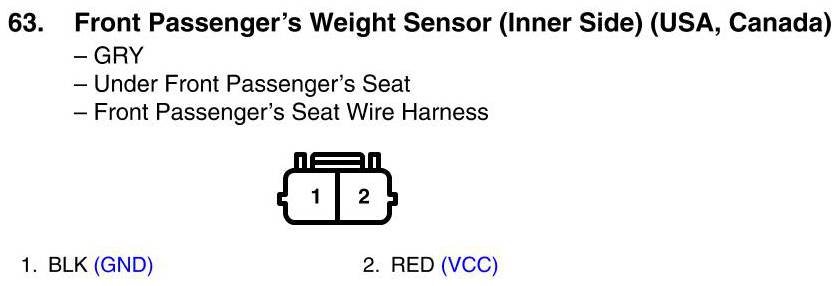

Front Passenger's Weight Sensor (Inner Side) Connector View (USA, Canada)
Front Passenger's Weight Sensor (Inner Side) Connector View (USA, Canada)
