Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Fan >> Ventilation Seat Control Unit Connector View (Ventilated Seats)

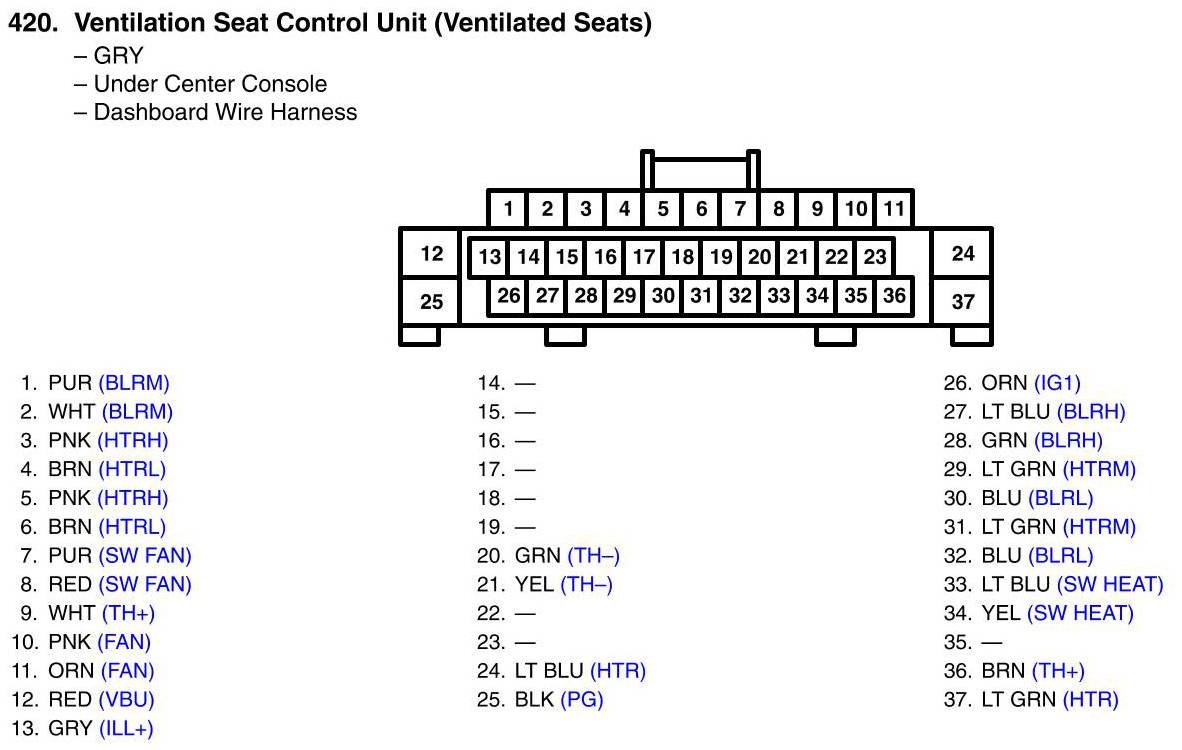

Ventilation Seat Control Unit Connector View (Ventilated Seats)
