Home
>>
Acura
>>
2012
>>
ZDX V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Tensioner
>>

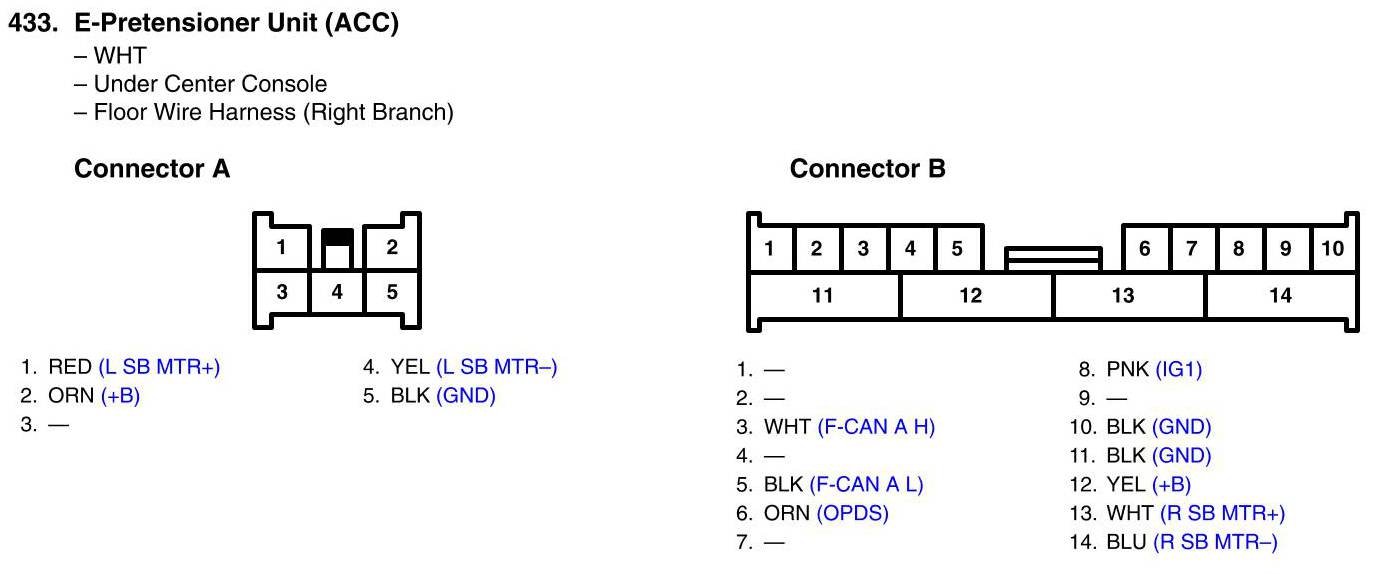

E-Pretensioner Unit Connector View (ACC)
E-Pretensioner Unit Connector View (ACC)
