Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> System Diagram >> Audio Unit Connector View (Without Navigation)

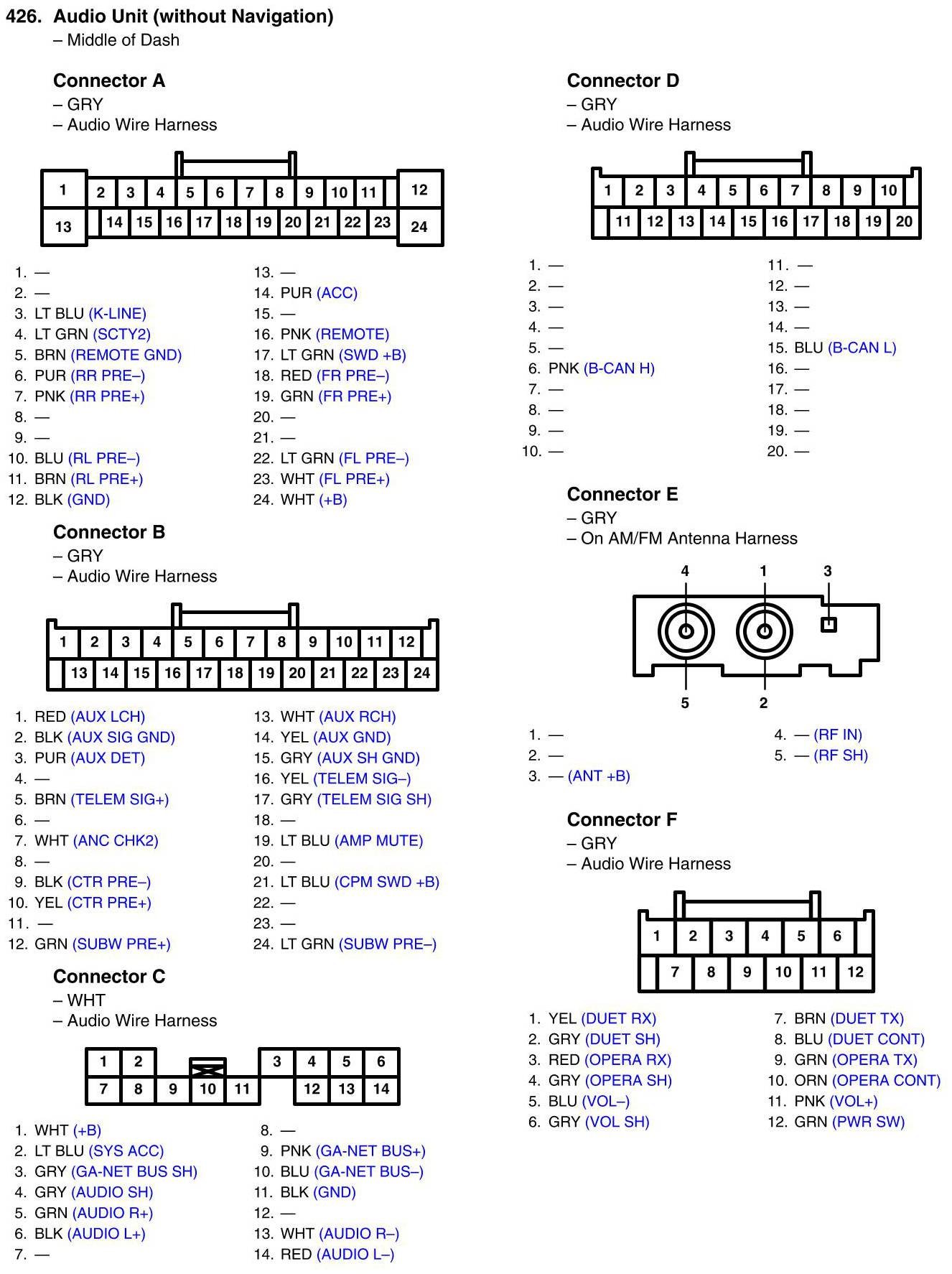

Audio Unit Connector View (Without Navigation)
