Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Remote Switch, Audio - Stereo
>>

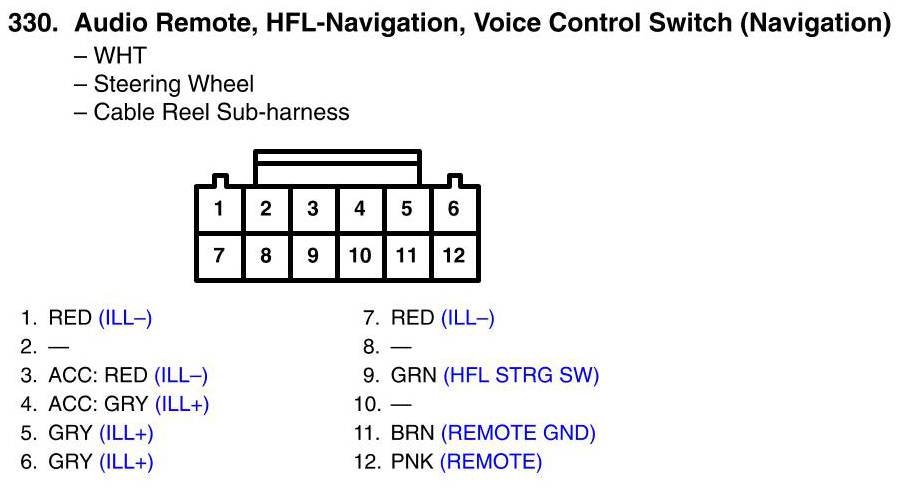

Audio Remote, HFL-Navigation, Voice Control Switch Connector View (Navigation)
Audio Remote, HFL-Navigation, Voice Control Switch Connector View (Navigation)
