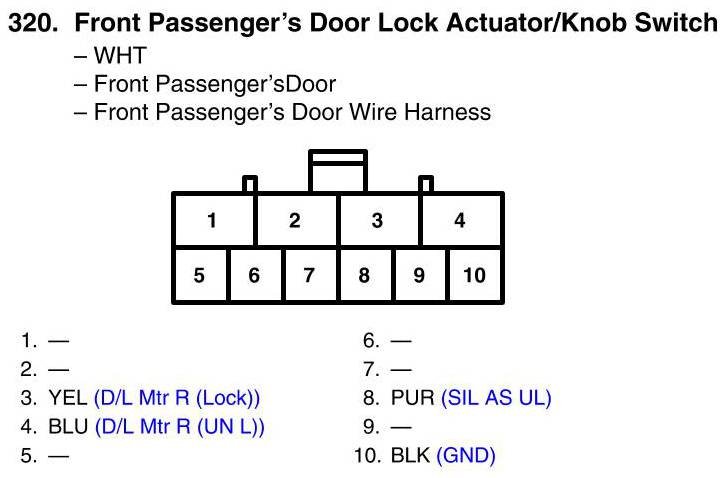

Front Passenger's Door Lock Actuator/Knob Switch Connector View
Front Passenger's Door Lock Actuator/Knob Switch Connector View
