Acura
>>
2012
>>
ZDX V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Starting System
>>

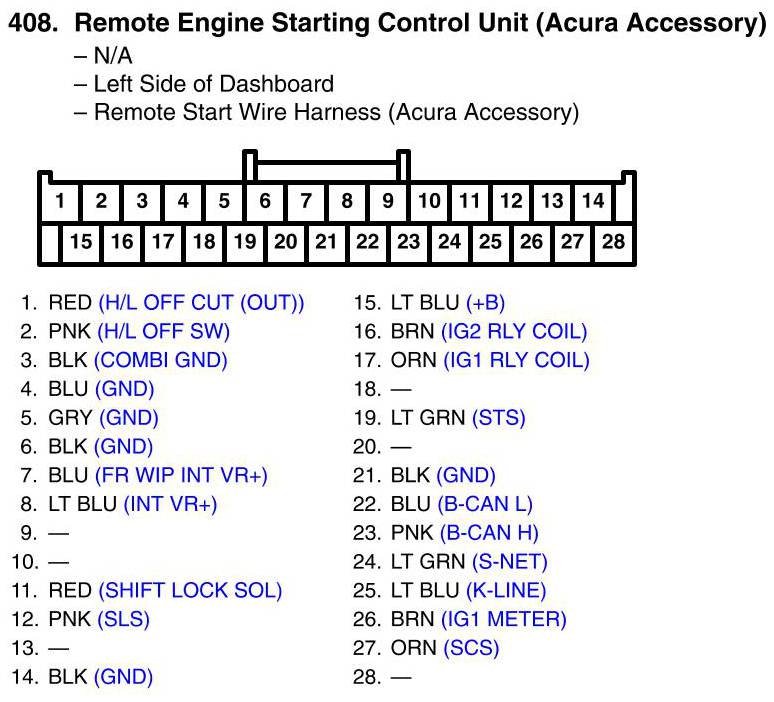

Remote Engine Starting Control Unit Connector View (Acura Accessory)
Remote Engine Starting Control Unit Connector View (Acura Accessory)
