Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Starting System >> IG1A Relay Connector View (Acura Accessory)

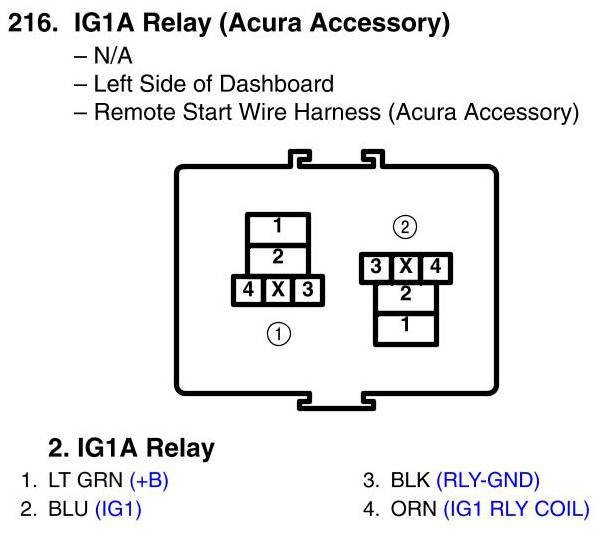

IG1A Relay Connector View (Acura Accessory)
