Hood Sensor/Switch (For Alarm): Testing and Inspection

Security Hood Switch Test

1. Open the hood then remove the bulkhead cover Front Bulkhead Cover Replacement.

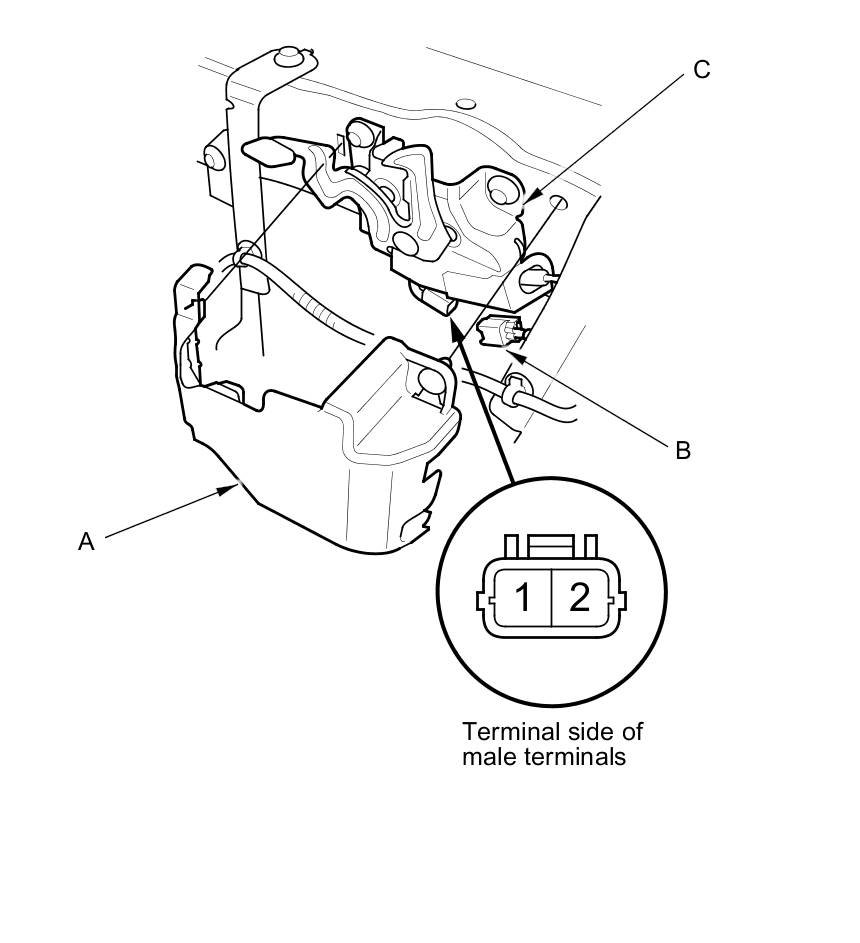

2. Remove the cover (A), and disconnect the 2P connector (B) from the security hood switch (C).

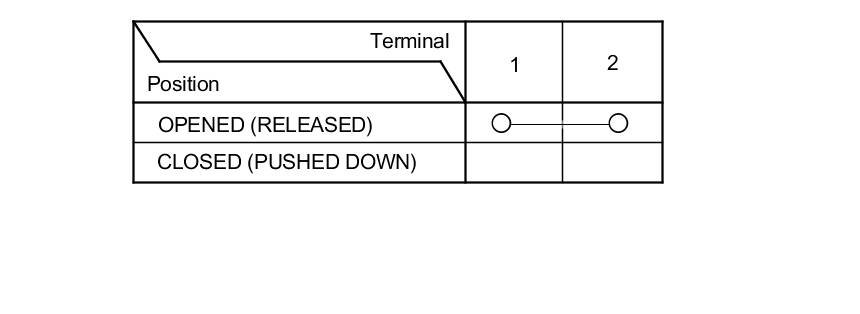

3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity is not as specified, the security hood switch is faulty; replace the hood latch Service and Repair.
