Transmission Fluid Pressure Switch B (3rd Clutch) Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air cleaner (see THROTTLE BODY CLEANING ).
  2. Remove the intake air duct (see INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
  3. Disconnect the transmission fluid pressure switch B (3rd clutch) connector, and remove transmission fluid pressure switch B (3rd clutch) and the sealing washer (A).

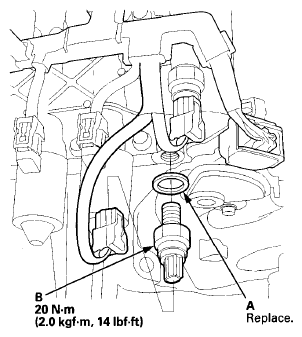

    Fig 1: Transmission Fluid Pressure Switch B And Sealing Washer With Torque Specifications
    G08066469Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install a new transmission fluid pressure switch B (3rd clutch) with a new sealing washer, and tighten the switch.
  5. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
  6. Install the intake air duct (see INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
  7. Install the air cleaner (see THROTTLE BODY CLEANING ).
