Third Shaft 6th Gear Axial Clearance Inspection

Special Tools Required

• Driver Handle, 40 mm I.D. 07746-0030100
• Bearing Driver Attachment, 30 mm I.D. 07746-0030300

1. Install the 49 x 66 x 3 mm thrust needle bearing (A), the 45 x 50 x 25 mm needle bearing (B), 4th gear (C), the 49 x 66 x 3 mm thrust needle bearing (D), and the 4th gear washer (E), and install the 36 mm cotters (F), the cotter retainer (G), and the snap ring (H) on the third shaft (I). Install the 4th gear washer by aligning the fingers (J) with the grooves (K), and in the direction shown.

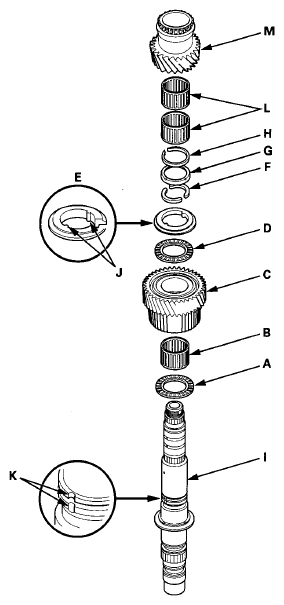

   Fig 1: Identifying Third Shaft 6th Gear Axial Related Parts

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the 37 x 42 x 25 mm needle bearings (L) and 6th gear (M) on the third shaft.
3. Apply ATF to the shaft splines of the reverse selector hub contact area, then slide the reverse selector hub (A) over the third shaft (B), then press it into place using the 40 mm I.D. driver handle, the 30 mm I.D. bearing driver attachment, and a press.
   Fig 2: Sliding Reverse Selector Hub Over Third Shaft

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Measure the clearance between 6th gear (A) and the reverse selector hub (B) with a feeler gauge (C) in at least three places. Use the average as the actual clearance.

   Standard: 0.045 - 0.420 mm (0.002 - 0.016 in)

   Fig 3: Measuring Clearance Between 6th Gear And Reverse Selector Hub With Feeler Gauge

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. If the clearance is out of the standard, remove the 4th gear washer and measure its thickness.
   Fig 4: Measuring Thickness Of 4th Gear Washer

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Select and install a new 4th gear washer, then recheck the clearance.
   4TH GEAR WASHER



   No.	Thickness (t)
   A	8.515 mm (0.33524 in)
   B	8.540 mm (0.33622 in)
   C	8.565 mm (0.33720 in)
   D	8.590 mm (0.33819 in)
   E	8.615 mm (0.33917 in)
   F	8.640 mm (0.34016 in)
